Price:
NZ$ 753.57 including GST
NZ$ 655.28 excluding GST
or four payments of $188.39
with
Learn More
each

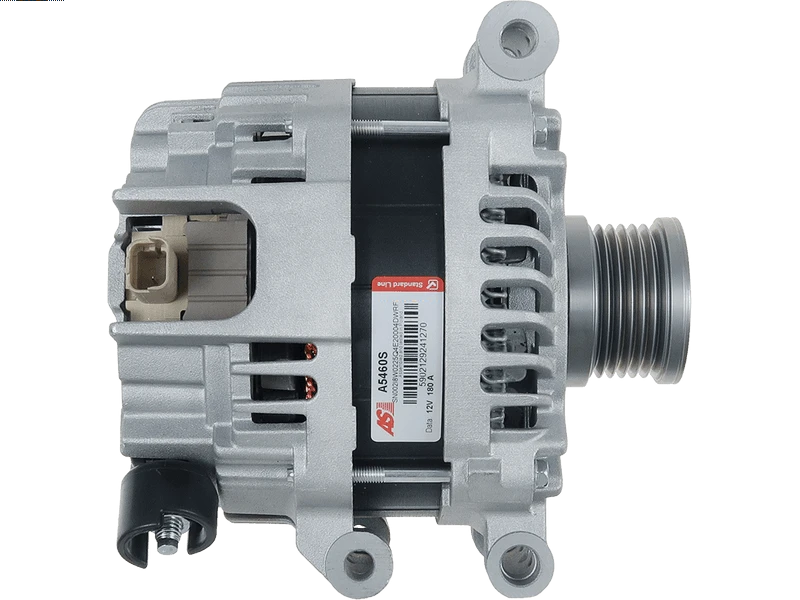

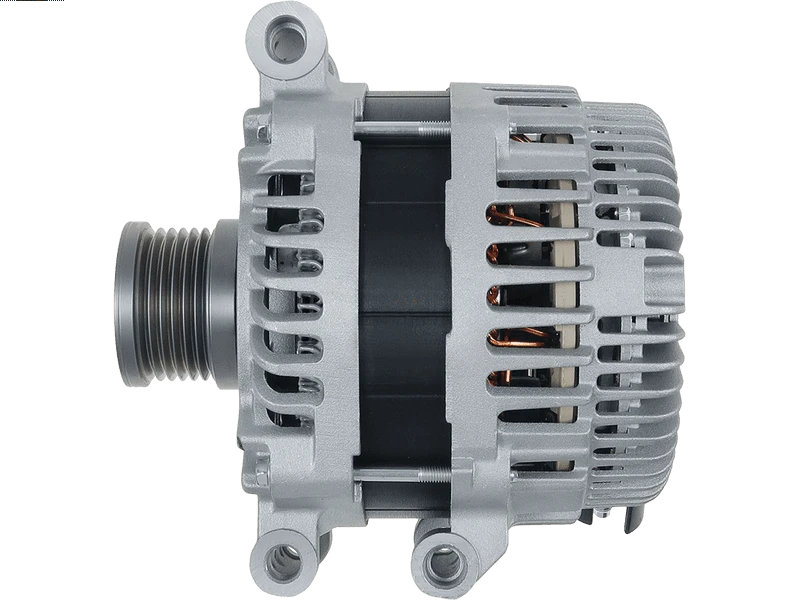

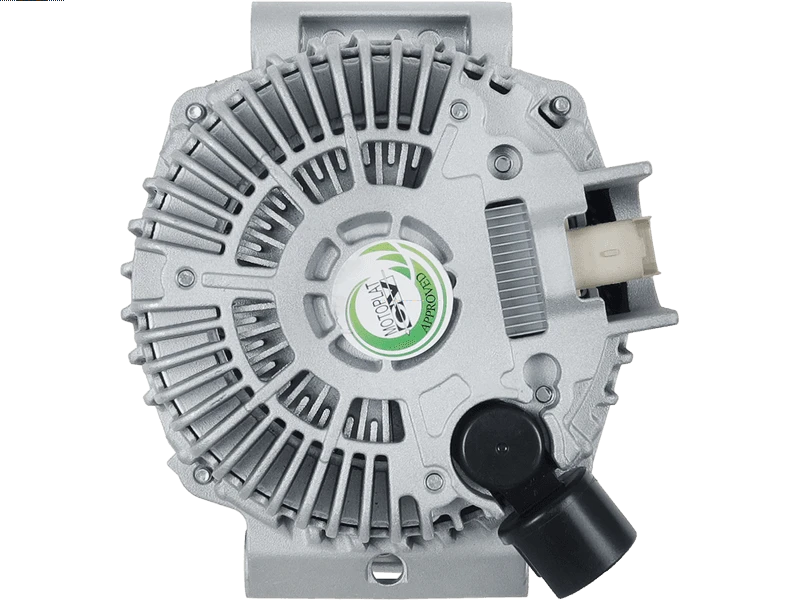

A5460S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 180 A |
| Bottom Mounting Foot Width (B) | 28 mm |
| Diameter (D.1) | 9.50 mm |
| Diameter (D.2) | 9.50 mm |
| Diameter (D.3) | 8 mm |
| Length (L.1) | 176 mm |
| Mount Inside Length or Pad Mount C-C (C) | 49 mm |
| Pad mount thickness (E.1) | 80 mm |
| Pad mount thickness (E.2) | 80 mm |
| Plug Code | PL_2402 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 49 mm |
| Pulley Type | Clutch |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CITROEN | C5 Aircross 1.6 PureTech 180 | [5GF(EP6FADTXD)] | 11.2018- |
| CITROEN | C5 Aircross 1.6 THP 165 | [5GY(EP6FDTM)] | 05.2019- |
| CITROEN | Grand C4 Spacetourer 1.6 PureTech 180 | [5GF(EP6FADTXD)] | 04.2018- |
| DS | DS 7 Crossback 1.6 PureTech 180 | [5GF(EP6FADTXD)] | 04.2018- |
| DS | DS 7 Crossback 1.6 PureTech 225 | [5GC(EP6FADTX)] | 09.2017-12.2022 |
| DS | DS 7 Crossback 1.6 PureTech 225 | [5GG(EP6FADTX)] | 09.2017-12.2022 |
| PEUGEOT | 3008 1.6 PureTech 180 | [5GF(EP6FADTXD)] | 07.2018- |
| PEUGEOT | 308 1.6 PureTech 225 | [GGR(EP6FADTX)] | 01.2018-06.2021 |
| PEUGEOT | 308 SW 1.6 PureTech 225 | [5GG(EP6FADTX)] | 01.2018-06.2021 |
| PEUGEOT | 5008 1.6 PureTech 180 | [5GF(EP6FADTXD)] | 07.2018- |
| PEUGEOT | 508 1.6 PureTech 180 | [5GF(EP6FADTXD)] | 10.2018- |
| PEUGEOT | 508 1.6 PureTech 225 | [5GG(EP6FADTX)] | 10.2018- |
| PEUGEOT | 508 1.6 THP 165 | [5GY(EP6FDTM)] | 09.2018- |
| PEUGEOT | 508 SW 1.6 PureTech 180 | [GFR(EP6FADTXD)] | 09.2018- |
| PEUGEOT | 508 SW 1.6 PureTech 225 | [GCR(EP6FADTX)] | 09.2018- |
| PEUGEOT | 508 SW 1.6 THP 165 | [5GY(EP6FDTM)] | 09.2018- |
Reference Information
| 043ST58 | STARTCAR |
| 12091041 | EUROTEC |
| 1635507780 | PEUGEOT |
| 20035405OV | ITAB AUTOMOTIVE |
| 20137504OE | REAL |
| 2035405.1 | SANDO |
| 225.587.180.130 | PSH |
| 225.587.180.370 | PSH |
| 2291521802 | DRI |
| 28-8717 | ELSTOCK |
| 40787 | CEVAM |
| 446076 | LOGISTIK |
| 556560RIM | KUHNER |
| 58043 | EAI |
| 722394/M | KUTNAK AUTOMOTIVE |
| 89214426 | POWERMAX |
| 9678731380 | PEUGEOT |
| 9801107180 | PEUGEOT |
| 9822789580 | PEUGEOT |
| 9822790080 | PEUGEOT |
| A003TX1581 | MITSUBISHI |
| A003TX1581A | MITSUBISHI |
| A003TX1581AM | MITSUBISHI |
| A003TX2981 | MITSUBISHI |
| A003TX2981AM | MITSUBISHI |
| A003TX2981C | MITSUBISHI |
| A147.665 | PSH |
| A3TX1581 | MITSUBISHI |
| A3TX1581A | MITSUBISHI |
| A3TX1581AM | MITSUBISHI |
| A3TX2981 | MITSUBISHI |
| A3TX2981AM | MITSUBISHI |
| A3TX2981C | MITSUBISHI |
| AC-CBA6045 | ACAUTO |
| AL04597 | TMI |
| ALM3606 | KRAUF |
| ALT374050 | SIOM |
| ALT5628 | ELECTROLOG |
| AMI405 | AUTOTEAM |
| ANM100498 | ANDEL |
| CAL35405GS | CASCO |
| G102817 | BTS TURBO |
| LRA04608 | LUCAS |
| LRA4608 | LUCAS |
| MITA3TX2981 | WOODAUTO |
| TC8121 | SNRA |
| UD101053A | AS-PL |
