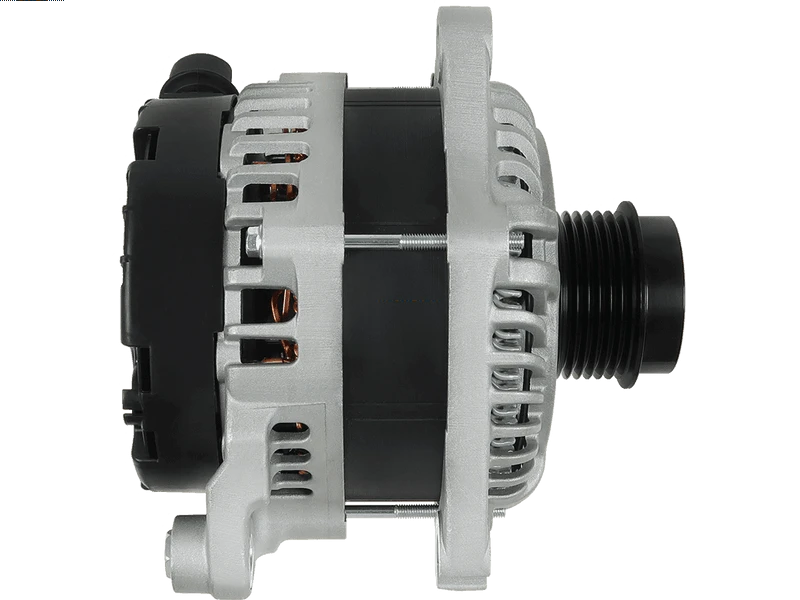

A5574S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

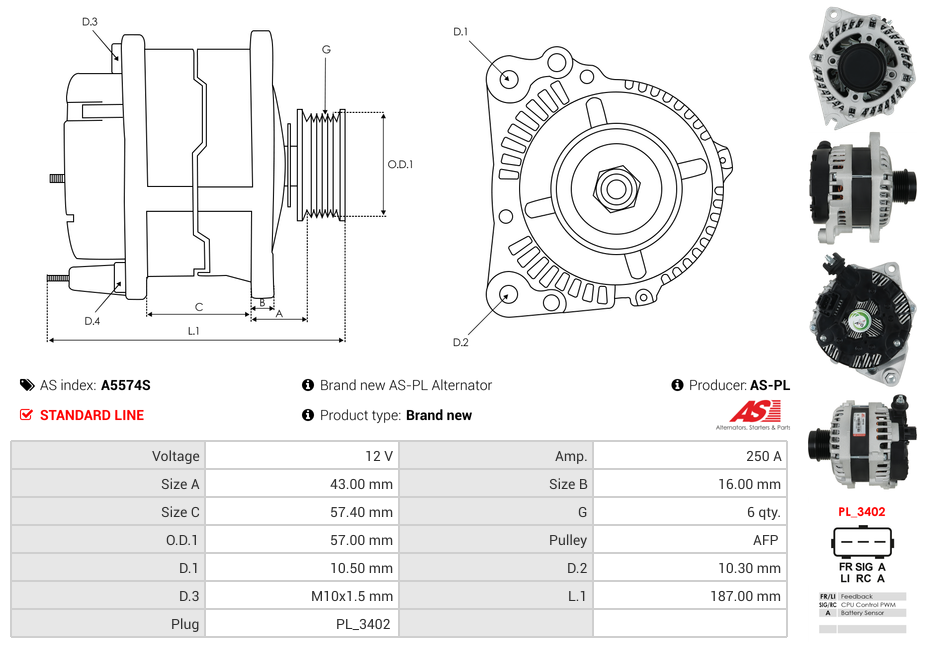

Specifications
| Amp | 250 A |
| Bottom Mounting Foot Width (B) | 16 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.30 mm |
| Diameter (D.3) | M10x1.5 mm |
| Length (L.1) | 187 mm |
| Mount Inside Length or Pad Mount C-C (C) | 57.40 mm |
| Plug Code | PL_3402 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 57 mm |
| Pulley to Mount Distance (A) | 43 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Expedition 3.5 | 01.2018-12.2022 | |
| LINCOLN | Navigator 3.5 | 01.2018-12.2022 |
Reference Information
| 10422 | LESTER |
| 230-30184 | ROBERT'S |
| 885.583.250.370 | PSH |
| 90-27-3498 | WILSON |
| A003TV1681 | MITSUBISHI |
| A3TV1681 | MITSUBISHI |
| JL1T-10300-AA | FORD |
| JL1Z-10346-A | FORD |
| UD102167A | AS-PL |
