Price:
NZ$ 719.07 including GST
NZ$ 625.28 excluding GST
or four payments of $179.77
with
Learn More
each
A5576S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

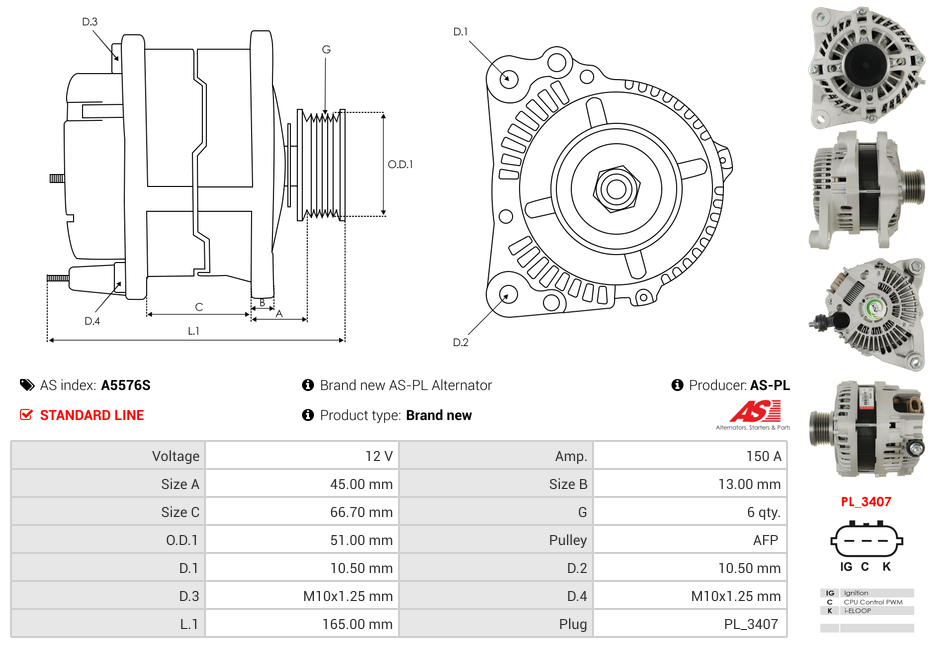

Specifications
| Amp | 150 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | M10x1.25 mm |
| Diameter (D.4) | M10x1.25 mm |
| Length (L.1) | 165 mm |
| Mount Inside Length or Pad Mount C-C (C) | 66.70 mm |
| Plug Code | PL_3407 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 51 mm |
| Pulley to Mount Distance (A) | 45 mm |
| Pulley Type | Clutch |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MAZDA | CX-9 2.5 | [PY-VPTS] | 01.2015-12.2023 |
Reference Information
| A002TX9981A | MITSUBISHI |
| A2TX9981A | MITSUBISHI |
| UD102581A | AS-PL |
