Price:
NZ$ 458.93 including GST
NZ$ 399.07 excluding GST
or four payments of $114.73
with
Learn More
each
A5592S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

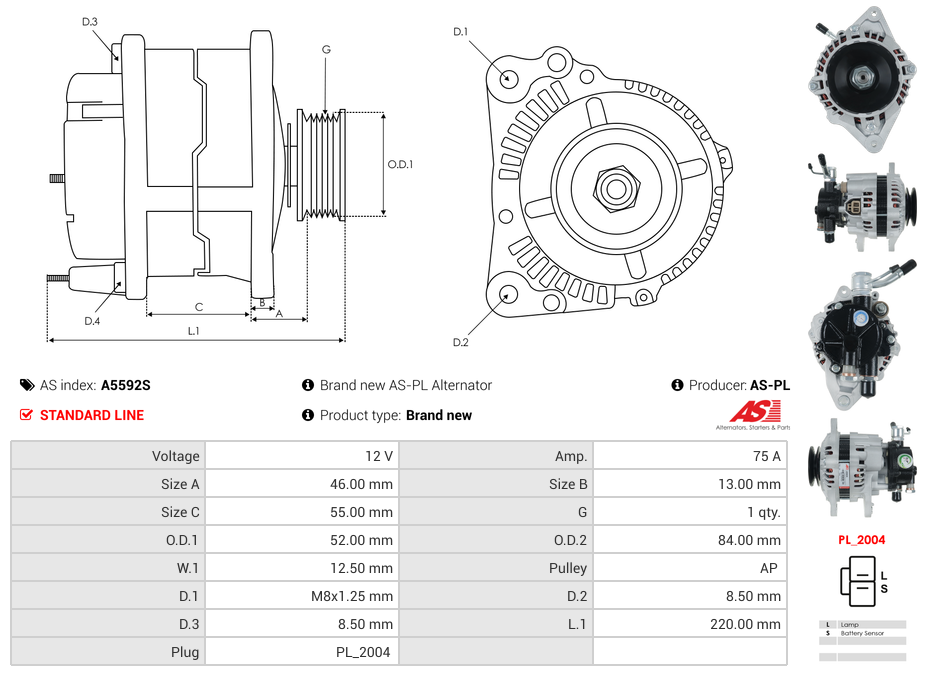

Specifications
| Amp | 75 A |
| Bottom Mounting Foot Width (B) | 13 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | 8.50 mm |
| Length (L.1) | 220 mm |
| Mount Inside Length or Pad Mount C-C (C) | 55 mm |
| Plug Code | PL_2004 |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 12.50 mm |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley Outside Diameter (O.D.2) | 84 mm |
| Pulley to Mount Distance (A) | 46 mm |
| Pulley Type | Solid |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| MITSUBISHI | Delica 2.5 | 01.1996- |
Reference Information
| 11.3304 | LAUBER |
| 114367 | CARGO |
| 155.825.065.130 | PSH |
| A002TN1683 | MITSUBISHI |
| A2TN1683 | MITSUBISHI |
| ALT31230 | WOODAUTO |
| ALTV027 | UNIPOINT |
| F032114367 | CARGO |
| MD339608 | MITSUBISHI |
| UD103216A | AS-PL |
| WOOALT31230 | WOODAUTO |
