A5594S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

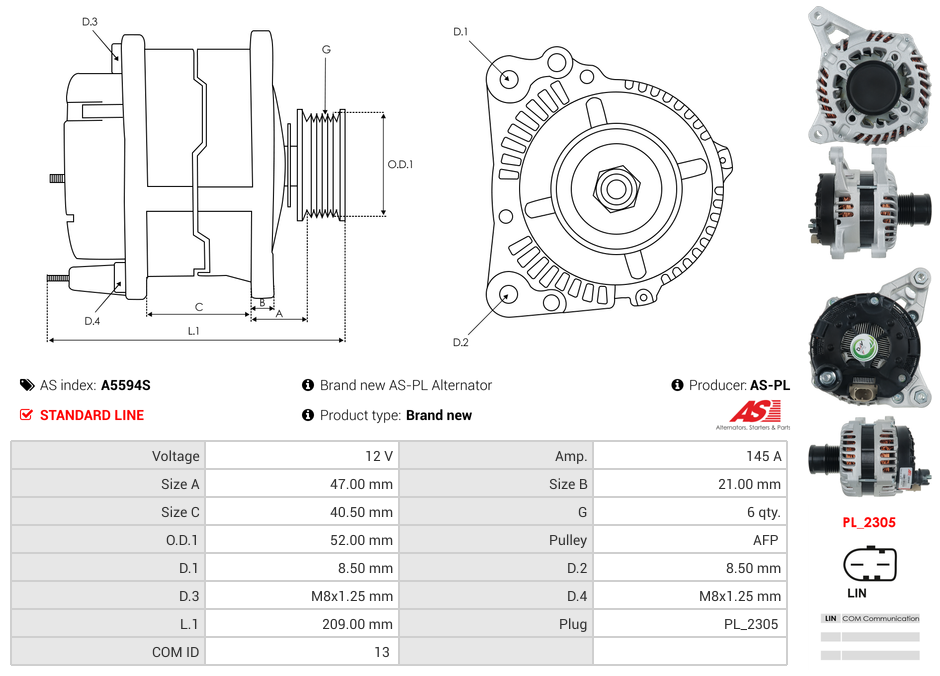

Specifications
| Amp | 145 A |
| Bottom Mounting Foot Width (B) | 21 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 209 mm |
| Mount Inside Length or Pad Mount C-C (C) | 40.50 mm |
| Plug Code | PL_2305 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 52 mm |
| Pulley to Mount Distance (A) | 47 mm |
| Pulley Type | Clutch |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| FORD | Fiesta 1.0 EcoBoost | [HF] | 01.2017-12.2023 |
| FORD | Fiesta 1.0 EcoBoost | [HF] | 05.2017-12.2025 |
| FORD | Fiesta 1.0 EcoBoost | [HF] | 12.2019-12.2025 |
| FORD | Fiesta 1.0 EcoBoost | [HJ] | 01.2017-12.2023 |
| FORD | Fiesta 1.0 EcoBoost | [HJ] | 05.2017-12.2025 |
| FORD | Fiesta 1.0 EcoBoost | [HJ] | 12.2019-12.2025 |
Reference Information
| A002TZ0281ZD | MITSUBISHI |
| A2TZ0281ZD | MITSUBISHI |
| A5594S | AS-PL |
| JX6T-10300-GA | FORD |
| UD103277A | AS-PL |
