Price:
NZ$ 718.85 including GST
NZ$ 625.09 excluding GST
or four payments of $179.71
with
Learn More
each

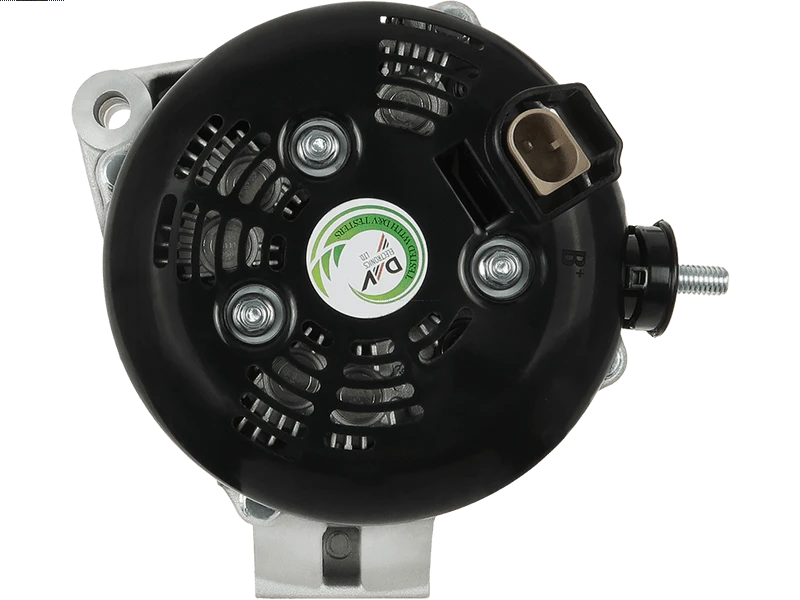

A6836S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Specifications
| Amp | 180 A |
| Diameter (D.1) | 11.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 13.50 mm |
| Length (L.1) | 198 mm |
| Mount Inside Length or Pad Mount C-C (C) | 48 mm |
| Pad mount thickness (E.1) | 50 mm |
| Pad mount thickness (E.2) | 50 mm |
| Plug Code | PL_2305 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 57.50 mm |
| Pulley to Mount Distance (A) | 22 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JAGUAR | F-Pace 3.0 SDV6 AWD | [306DT(AJTDV6)] | 09.2015- |
| JAGUAR | XF 3.0 D | [306DT(AJTDV6)] | 05.2015- |
| JAGUAR | XF Sportbrake 3.0 D | [306DT(AJTDV6)] | 07.2017- |
| JAGUAR | XJ 3.0 SDV6 | [306DT(AJTDV6)] | 04.2015-12.2019 |
| LAND ROVER | Range Rover Velar 3.0 D275 SDV6 4x4 | [306DT(TDV6)] | 04.2018- |
| LAND ROVER | Range Rover Velar 3.0 D300 SDV6 4x4 | [306DT(TDV6)] | 03.2017- |
Reference Information
| 104211-0040 | DENSO |
| 104211-0041 | DENSO |
| 12091059 | EUROTEC |
| 20040A50AV | ITAB AUTOMOTIVE |
| 2013205ABN | REAL |
| 2040A50.0 | SANDO |
| 2141931802 | DRI |
| 21814N | WAI / TRANSPO |
| 28-7933 | ELSTOCK |
| 28-7933CT | AINDE |
| 40659 | CEVAM |
| 455.548.180.050 | PSH |
| 556477RI | KUHNER |
| 58165 | EAI |
| 89216766 | POWERMAX |
| AL04197 | TMI |
| ALT42A500A | SIOM |
| C2D36987 | JAGUAR |
| CAL40A50AS | CASCO |
| FW93-10300-BC | LAND ROVER |
| JA8018 | SNRA |
| LR091104 | LAND ROVER |
| LRA04324 | LUCAS |
| LRA4324 | LUCAS |
| UD102559A | AS-PL |
