Price:
NZ$ 587.75 including GST
NZ$ 511.09 excluding GST
or four payments of $146.94
with
Learn More
each

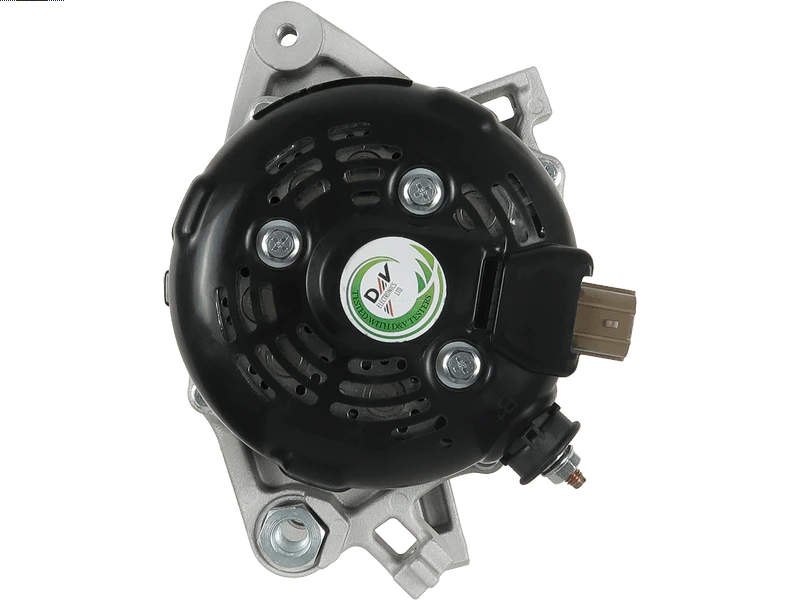

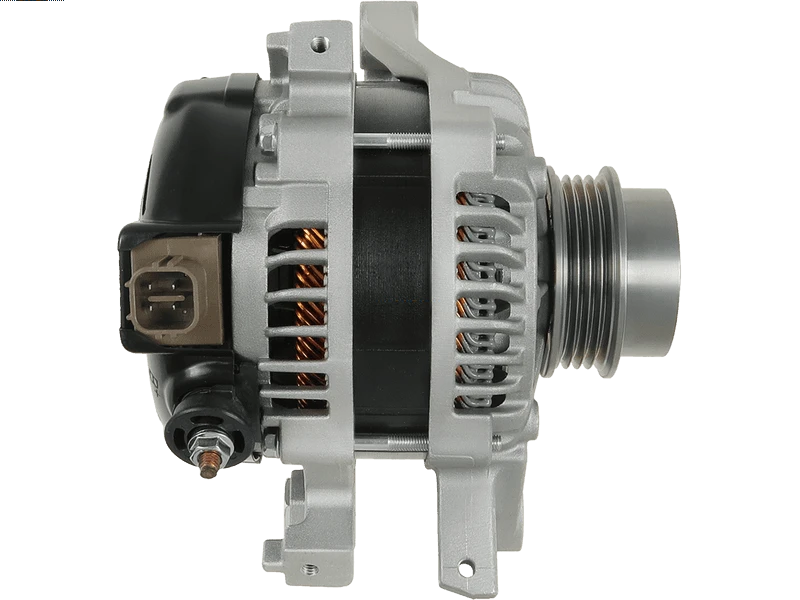

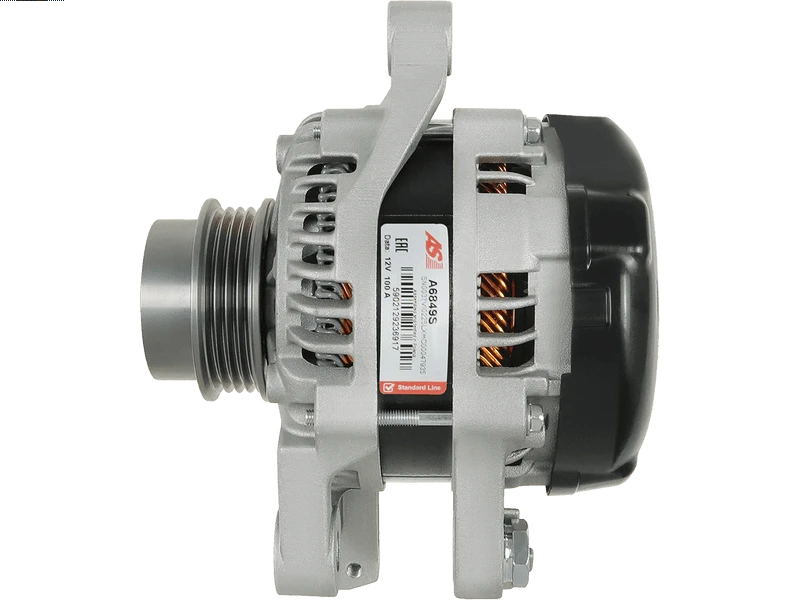

A6849S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 100 A |
| Bottom Mounting Foot Width (B) | 19 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 11 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 164 mm |
| Mount Inside Length or Pad Mount C-C (C) | 36.50 mm |
| Plug Code | PL_4000 |
| Pulley Grooves | 4 qty |
| Pulley Outside Diameter (O.D.1) | 62 mm |
| Pulley to Mount Distance (A) | 30 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Auris 1.3 | [1NR-FE] | 10.2012-12.2018 |
| TOYOTA | Corolla 1.3 | [1NR-FE] | 06.2013-12.2018 |
Reference Information
| 104211-3100 | DENSO |
| 104211-3101 | DENSO |
| 104211-3102 | DENSO |
| 104211-3103 | DENSO |
| 195.909.100.050 | PSH |
| 195.909.100.260 | PSH |
| 20040490OV | ITAB AUTOMOTIVE |
| 20132094OE | REAL |
| 2040490.1 | SANDO |
| 2353671002 | DRI |
| 27060-0Y150 | TOYOTA |
| 28-7914 | ELSTOCK |
| 3114413 | HENKEL PARTS |
| 40277 | CEVAM |
| 409ST85 | STARTCAR |
| 555360RID | KUHNER |
| 58409 | EAI |
| 89216737 | POWERMAX |
| ADN490 | AUTOTEAM |
| AL04175 | TMI |
| ALN2470 | KRAUF |
| ALT424900 | SIOM |
| ALT6494 | ELECTROLOG |
| CAL40490GS | CASCO |
| DAN1309 | DENSO |
| DENDAN1309 | WOODAUTO |
| DRA1780 | DELCO |
| G103663 | BTS TURBO |
| LRA04305 | LUCAS |
| LRA4305 | LUCAS |
| TO8141 | SNRA |
| UD102808A | AS-PL |
| WG1916810 | WILMINK GROUP |
