Associated Numbers
0986045961
Bosch Exchange
0986AN0688
Bosch Exchange
0986AN0689
Bosch Exchange
0986CN0821
Bosch Exchange
0986CR0081
Bosch Exchange
0986CR0821
Bosch Exchange
0986CR0825
Bosch Exchange
0986UN0821
Bosch Exchange
0986UR0821
Bosch Exchange
1002118150
Denso
1002118150R
RNL
1002118151
Denso
1002118170
Denso
1002118190
Denso
1002118190RT
RNL
1002118710
Denso
1002118711
Denso
1002118720
Denso
1002118730
Denso
1002118750
Denso
1002118770
Denso
1002118771
Denso
1002118772
Denso
1002118773
Denso
1012115840
Denso
1012115850
Denso
1012115870
Denso
1012118540
Denso
111394
HC-Cargo
125514080
PSH
13325N
WAI
13325R
WAI
13507N
WAI
13507R
WAI
22364N
WAI
31100P12A01
Honda
31100P12A02
Honda
31100P14A01
Honda
31100P14A02
Honda
31100P14A020M
Honda
31100P14E02
Honda
31100PT2003
Honda
31100PT20132
Honda
31100PT3A01
Honda
31100PT3A51
Honda
31100PT3A511
Honda
31100PT3A511M
Honda
31100PT3A52
Honda
31100PT3Q01
Honda
31100PT3Q02
Honda
437720
Valeo
90295123
Wilson
90295202
Wilson
90295439
Wilson
A8378
Dixie
A8378N
Dixie
AHA380
ATK
AHA407
ATK
AL1260N
Bosch (USA)
AL1260X
Bosch (USA)
AL386X
Bosch (USA)
ALT30299
Wood Auto
ALT30309
Wood Auto
ALT30322
Wood Auto
ALT5036
Unipoint
ALT5058
Unipoint
ALT5106
Unipoint
BXD1280N
Bosch (USA)
BXD1282N
Bosch (USA)
CIP20
Honda
CJP16
Honda
CJP20
Honda
CJS88
Honda
dxa556 dxa4017 658302 anj276 arj158

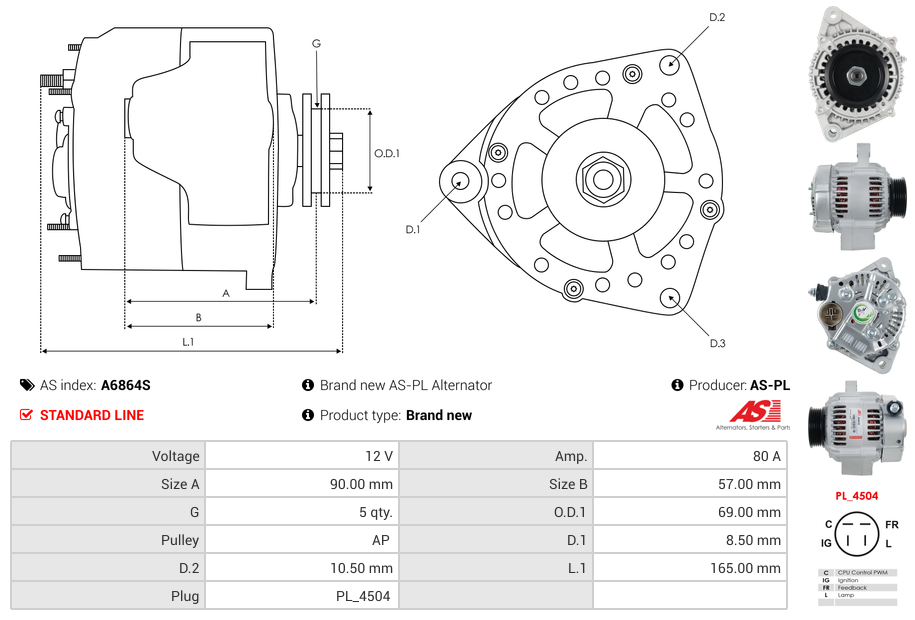

Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 57 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 10.50 mm |
| Length (L.1) | 165 mm |
| Plug Code | PL_4504 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 69 mm |
| Pulley to Mount Distance (A) | 90 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | Accord 2.0 | [F20B3] | 09.1993-12.1997 |
| HONDA | Accord 2.0 16V | [F20A4] | 01.1990-03.1993 |
| HONDA | Accord 2.0 16V | [F20A7] | 01.1992-09.1993 |
| HONDA | Accord 2.0 16V | [F20A8] | 01.1990-03.1993 |
| HONDA | Accord 2.2 16V | [F22A3] | 01.1990-03.1993 |
| HONDA | Accord Aerodeck 2.0 LS 16V | [F20B3] | 09.1993-02.1998 |
| HONDA | Accord Aerodeck 2.2 16V | [F22A7] | 01.1991-12.1993 |
| HONDA | Accord Aerodeck 2.2 16V | [F22A8] | 01.1991-12.1993 |
| HONDA | Prelude 2.3 16V | [H23A2] | 02.1992-09.1996 |
Reference Information
| 100211-8150 | DENSO |
| 100211-8150R | RNL |
| 100211-8151 | DENSO |
| 100211-8170 | DENSO |
| 100211-8190 | DENSO |
| 100211-8190RT | RNL |
| 100211-8710 | DENSO |
| 100211-8711 | DENSO |
| 100211-8720 | DENSO |
| 100211-8730 | DENSO |
| 100211-8750 | DENSO |
| 100211-8770 | DENSO |
| 100211-8771 | DENSO |
| 100211-8772 | DENSO |
| 100211-8773 | DENSO |
| 101211-5840 | DENSO |
| 101211-5850 | DENSO |
| 101211-5870 | DENSO |
| 101211-8540 | DENSO |
| 111394 | CARGO |
| 125.514.080.050 | PSH |
| 125.514.080.415 | PSH |
| 13325 | DENSO |
| 13325 | DENSO |
| 13507N | WAI / TRANSPO |
| 20040139AV | ITAB AUTOMOTIVE |
| 20132931BN | REAL |
| 2040139.0 | SANDO |
| 221-016 | DENSO |
| 31100-P12-A01 | HONDA |
| 31100-P12-A02 | HONDA |
| 31100-P14-A01 | HONDA |
| 31100-P14-A02 | HONDA |
| 31100-P14-A020M | HONDA |
| 31100-P14-E02 | HONDA |
| 31100-PT2-003 | HONDA |
| 31100-PT2-0132 | HONDA |
| 31100-PT3-A01 | HONDA |
| 31100-PT3-A51 | HONDA |
| 31100-PT3-A511 | HONDA |
| 31100-PT3-A511M | HONDA |
| 31100-PT3-A52 | HONDA |
| 31100-PT3-Q01 | HONDA |
| 31100-PT3-Q02 | HONDA |
| 474ST65 | STARTCAR |
| 65-8302 | DENSO |
| A143.660 | PSH |
| A149.545 | PSH |
| ADN139A | AUTOTEAM |
| AL02026 | TMI |
| ANM98150 | ANDEL |
| BBA2937 | BORG & BECK |
| CAL40139AS | CASCO |
| CIP20 | HONDA |
| CJP16 | HONDA |
| CJP20 | HONDA |
| CJS88 | HONDA |
| DRA3304 | DENSO |
| DXA556 | DENSO |
| F032111394 | CARGO |
| HO8019 | SNRA |
| JA1163IR | HC PARTS |
| LRA01992 | LUCAS |
| LRA1992 | LUCAS |
| UD90171A | AS-PL |
