Price:
NZ$ 432.52 including GST
NZ$ 376.10 excluding GST
or four payments of $108.13
with
Learn More
each

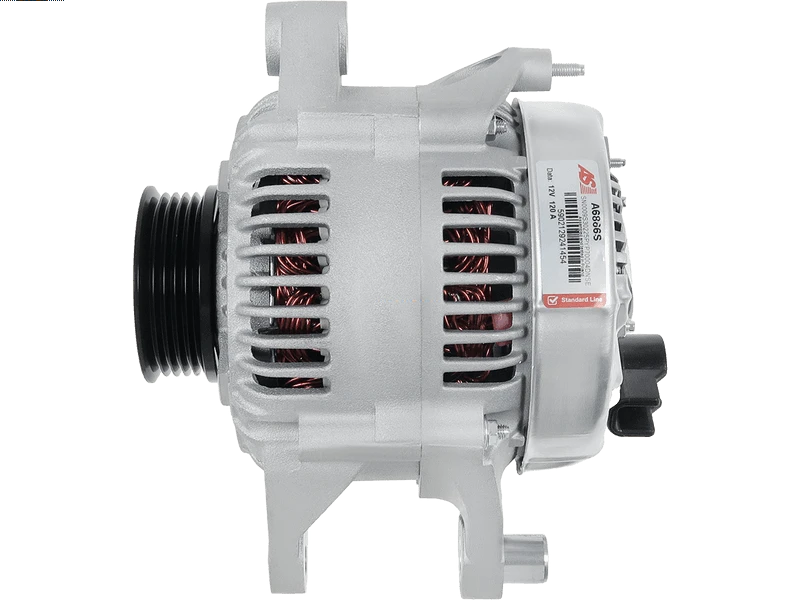

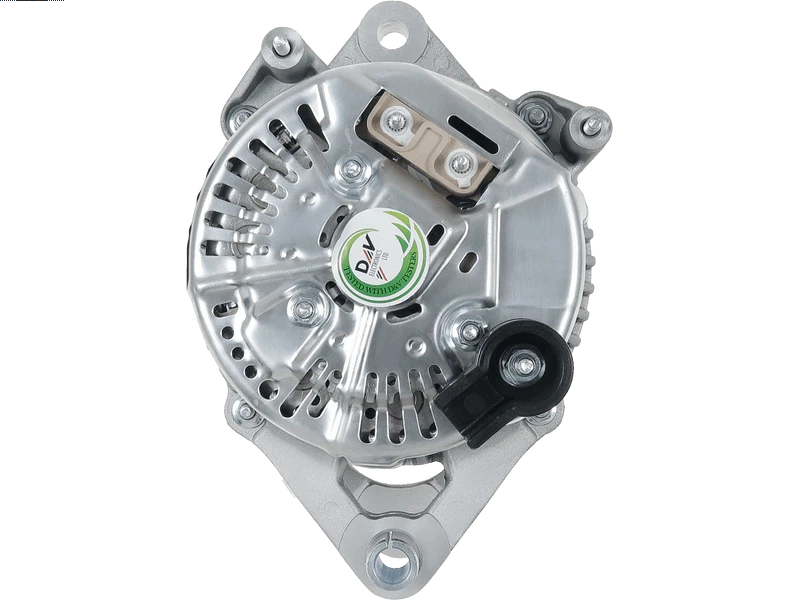

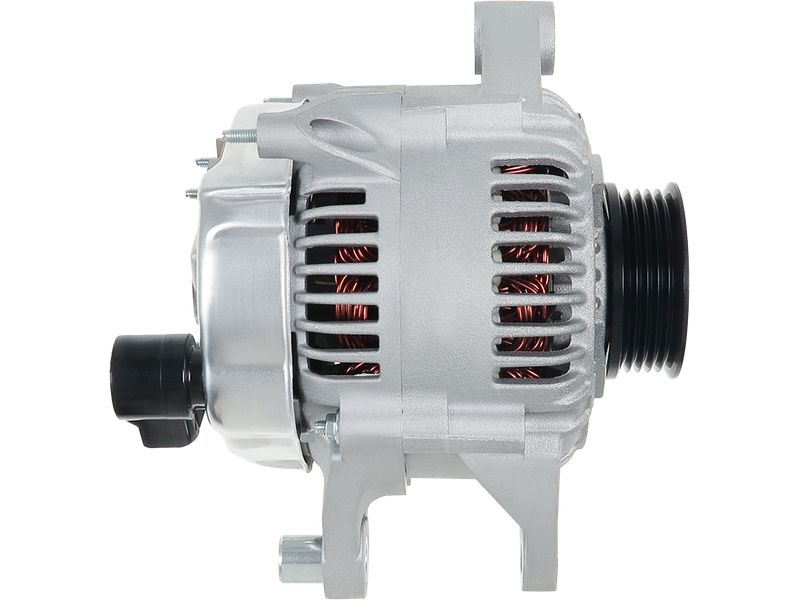

A6866S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 12 mm |
| Diameter (D.1) | 11.50 mm |
| Diameter (D.2) | 10.50 mm |
| Diameter (D.3) | 11 mm |
| Length (L.1) | 188 mm |
| Mount Inside Length or Pad Mount C-C (C) | 54 mm |
| Plug Code | PL_9102 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 65 mm |
| Pulley to Mount Distance (A) | 36 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CHRYSLER | Daytona 2.5 i Turbo | [EDT] | 01.1989-10.1992 |
| CHRYSLER | LeBaron 3.0 i V6 | [EFA] | 01.1990-12.1993 |
| CHRYSLER | LeBaron 3.0 i V6 | [EFA] | 01.1990-12.1994 |
| CHRYSLER | Voyager 3.0 i | [300] | 01.1991-09.1995 |
| CHRYSLER | Voyager 3.0 i | [6G72] | 01.1991-09.1995 |
Reference Information
| 119163 | FARCOM |
| 12090158 | EUROTEC |
| 121000-4010 | DENSO |
| 121000-4060 | DENSO |
| 13310N | WAI / TRANSPO |
| 27-2886 | ELSTOCK |
| 320ST65 | STARTCAR |
| 5234260 | CHRYSLER |
| 5340271202 | DRI |
| 56320 | EAI |
| AEF0961 | AUTOELECTRO |
| AL00223 | TMI |
| CH8015 | SNRA |
| LRA01125 | LUCAS |
| LRA1125 | LUCAS |
| UD90220A | AS-PL |
| UD90223A | AS-PL |
