A9499S - Brand new AS-PL Alternator

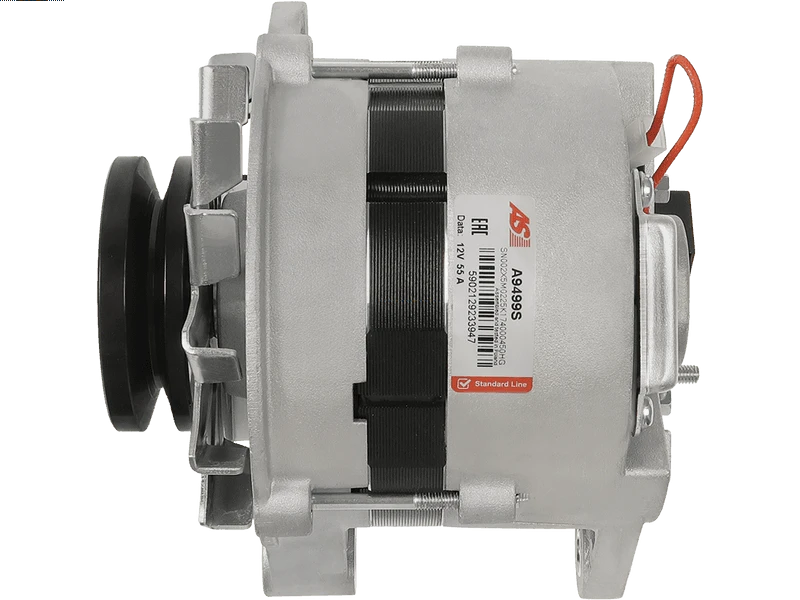

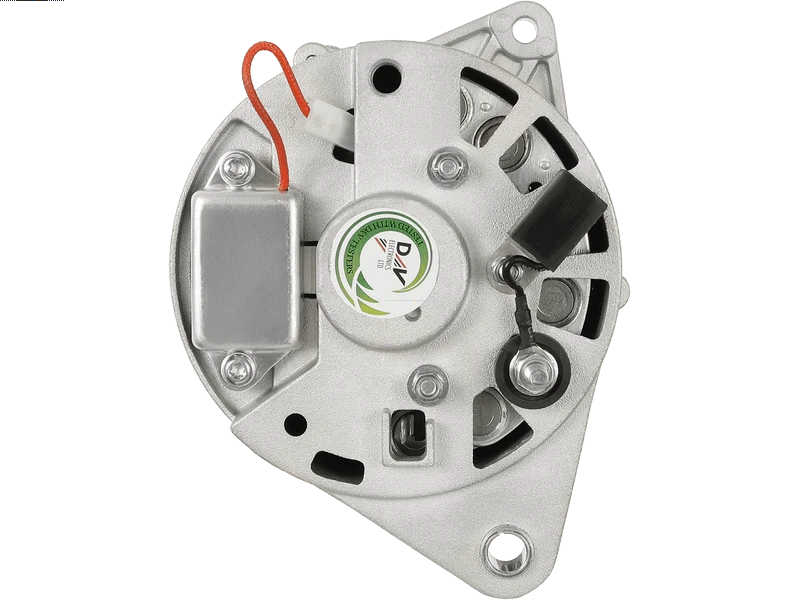

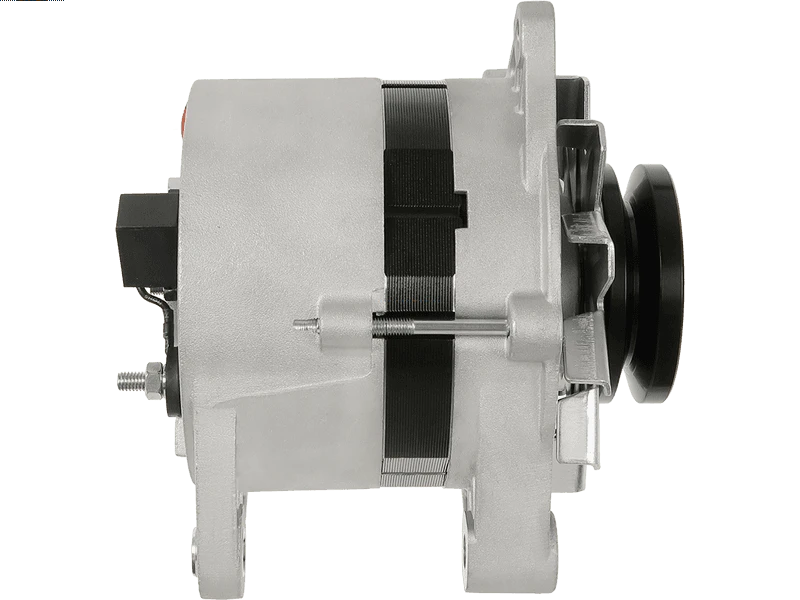

Name: Brand new AS-PL Alternator
Brand: AS GROUP NZ
SKU: A9499S
Price: 345.70 NZD
Availability: SoldOut

Price:

NZ$ 345.70 including GST

NZ$ 300.61 excluding GST

or four payments of $86.43 with
Learn More

UOM:

each

Product Code:

A9499S

Quantity In Stock Nationally:

No stock in NZ - Call us for possible procurement options

Availability:

No stock in NZ - Call us for possible procurement options

Specifications
Vehicle Applications
Reference Information

Amp	55 A
Bottom Mounting Foot Width (B)	27 mm
Diameter (D.1)	8 mm
Diameter (D.2)	10 mm
Diameter (D.3)	10 mm
Length (L.1)	165 mm
Mount Inside Length or Pad Mount C-C (C)	66.50 mm
Plug Code	PL_9104
Pulley Grooves	1 qty
Pulley Groove Width (W.1)	9 mm
Pulley Outside Diameter (O.D.1)	52 mm
Pulley Outside Diameter (O.D.2)	96 mm
Pulley to Mount Distance (A)	53 mm
Pulley Type	Solid
Voltage	12 V

Make	Model	Type	Year
SKODA	Favorit 1.3	[135]	01.1993-12.1993
SKODA	Favorit 1.3	[135]	12.1992-06.1997
SKODA	Favorit 1.3	[135B]	12.1992-06.1997
SKODA	Favorit 1.3	[135I]	12.1992-06.1997
SKODA	Favorit 1.3	[136B]	01.1994-06.1995
SKODA	Favorit 1.3	[136B]	01.1994-09.1994
SKODA	Favorit 1.3	[136I]	12.1992-06.1997
SKODA	Favorit 1.3	[781.135]	01.1989-08.1995
SKODA	Favorit 1.3	[781.135]	01.1993-12.1993
SKODA	Favorit 1.3	[781.135]	09.1991-06.1995
SKODA	Favorit 1.3	[781.135]	12.1991-06.1995
SKODA	Favorit 1.3	[781.135]	12.1992-06.1997
SKODA	Favorit 1.3	[781.13540]	10.1990-12.1992
SKODA	Favorit 1.3	[781.13540]	12.1992-06.1997
SKODA	Favorit 1.3	[781.135I40]	09.1991-06.1995
SKODA	Favorit 1.3	[781.136]	08.1991-06.1995
SKODA	Favorit 1.3	[781.13650]	01.1994-09.1994
SKODA	Favorit 1.3	[781.13650]	12.1992-06.1997
SKODA	Favorit 1.3	[781.136I50]	01.1994-06.1995
SKODA	Favorit 1.3	[781.136I50]	01.1994-09.1994
SKODA	Favorit 1.3 135	[781.135]	10.1990-09.1994
SKODA	Favorit 1.3 135	[781.135]	12.1991-09.1994
SKODA	Favorit 1.3 135 GLX	[781.13540]	01.1990-09.1994
SKODA	Favorit 1.3 135 GLX	[781.135B]	01.1990-09.1994
SKODA	Favorit 1.3 135 GLX	[781.135E]	01.1990-09.1994
SKODA	Favorit 1.3 135 GLX	[781.135I40]	01.1990-09.1994
SKODA	Favorit 1.3 135L	[781.135]	05.1989-09.1994
SKODA	Favorit 1.3 135 LX	[781.13540]	01.1990-09.1994
SKODA	Favorit 1.3 135 LX	[781.135B]	01.1990-09.1994
SKODA	Favorit 1.3 135 LX	[781.135E]	01.1990-09.1994
SKODA	Favorit 1.3 135 LX	[781.135I40]	01.1990-09.1994
SKODA	Favorit 1.3 135 X	[781.13540]	01.1990-09.1994
SKODA	Favorit 1.3 135 X	[781.135B]	01.1990-09.1994
SKODA	Favorit 1.3 135 X	[781.135E]	01.1990-09.1994
SKODA	Favorit 1.3 135 X	[781.135I40]	01.1990-09.1994
SKODA	Favorit 1.3 136	[136L]	10.1990-09.1994

011-003-000627R	REMANTE
0986036961	BOSCH
118370	FARCOM
12036960	EUROTEC
210168R	ERA
212102552	DRI
269ST65	STARTCAR
28-1595	ELSTOCK
3117987	HENKEL PARTS
3117988	HENKEL PARTS
443113516630	MAGNETON
443113516631	MAGNETON
443113516632	MAGNETON
445.001.055.110	PSH
445.001.055.550	PSH
56269	EAI
8EL725872-001	HELLA
9036961	FRIESEN
944390369610	MAGNETI MARELLI
AL00801	TMI
ALG0300	KRAUF
CA589IR	HC PARTS
IR7914	PROTECH
LRA00567	LUCAS
LRA567	LUCAS
MRA36961	MAGNETI MARELLI
QRA2198	QUINTON HAZELL
SK8003	SNRA
UD102318A	AS-PL
