Price:
NZ$ 350.43 including GST
NZ$ 304.72 excluding GST
or four payments of $87.61
with
Learn More
each

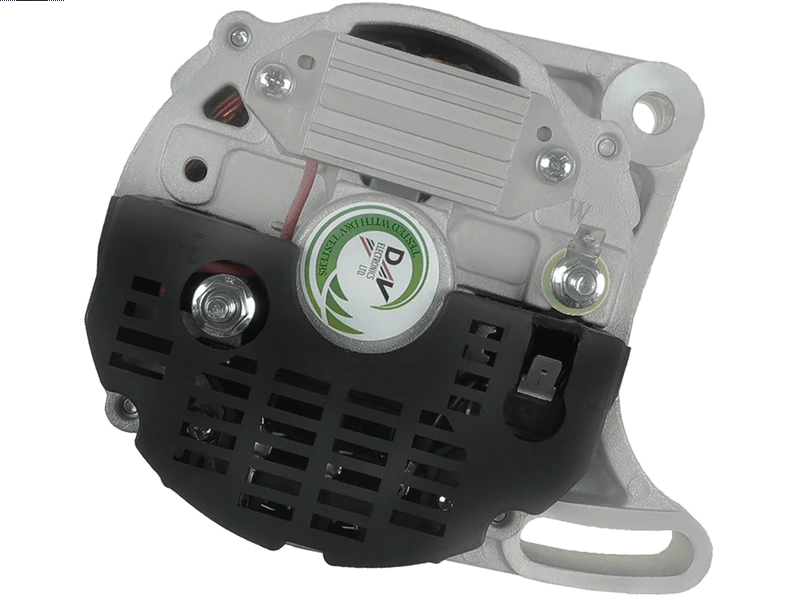

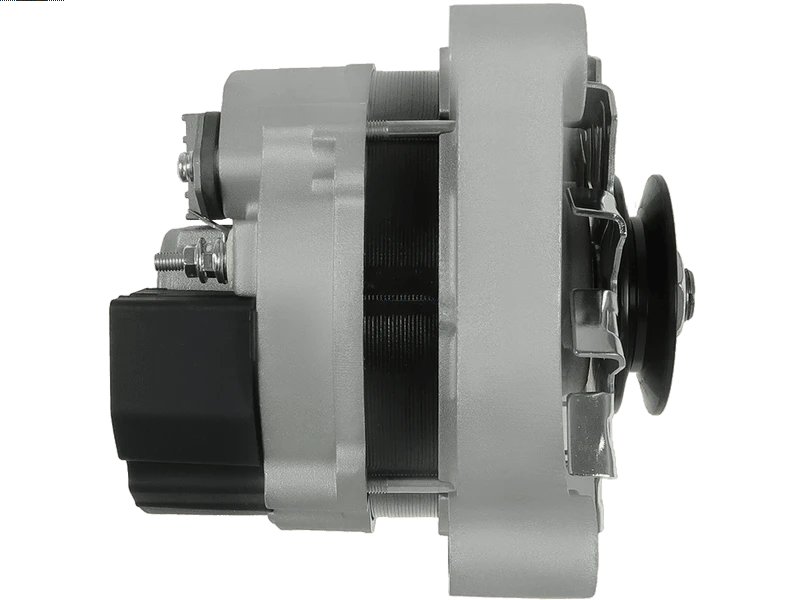

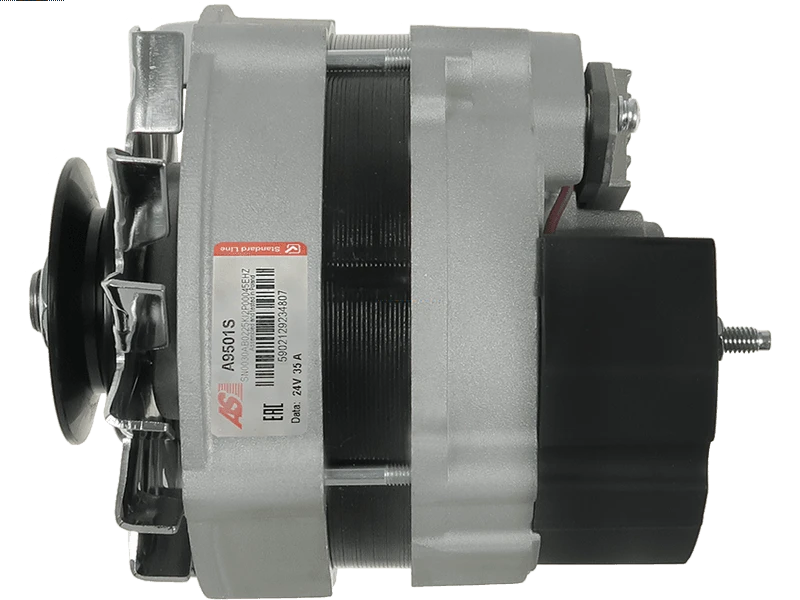

A9501S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Specifications
| Amp | 35 A |
| Bottom Mounting Foot Width (B) | 32 mm |
| Diameter (D.1) | 10 mm |
| Diameter (D.2) | 11 mm |
| Length (L.1) | 168 mm |
| Plug Code | PL_9105 |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 9.50 mm |
| Pulley Outside Diameter (O.D.1) | 44 mm |
| Pulley Outside Diameter (O.D.2) | 68 mm |
| Pulley to Mount Distance (A) | 50 mm |
| Pulley Type | Solid |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BELARUS | 310 1.6 | [LDW1603/B3] | 01.2013- |
| BELARUS | 320.4 1.6 | [LDW1603/B3] | 01.2013- |
| BELARUS | 320.5 1.6 | [LDW1603/B3] | 01.2013- |
| BELARUS | 422 2.1 | [LDW2204] | 01.2013- |
| BELARUS | 622 2.1 | [LDW2204T] | 01.2013- |
| LOMBARDINI | CHD 1400 | 01.1988- | |
| LOMBARDINI | CHD 1503 | ||
| LOMBARDINI | LDW 1204 1.2 | ||
| LOMBARDINI | LDW 1404 1.2 | ||
| LOMBARDINI | LDW 1503 | ||
| LOMBARDINI | LDW 1603 1.7 | ||
| LOMBARDINI | LDW 2004 | ||
| LOMBARDINI | LDW 2204M 2.2 | ||
| LOMBARDINI | LDW 2204MT 2.2 | ||
| LOMBARDINI | LDW 2204TSD 2.2 | ||
| LOMBARDINI | LDW 502 | ||
| LOMBARDINI | LDW 602 | ||
| LOMBARDINI | LDW 903 0.9 | ||
| LOMBARDINI | LGW 527 0.5 |
Reference Information
| 11.201.488 | ISKRA / LETRIKA |
| 11.203.700 | ISKRA / LETRIKA |
| 112936 | FARCOM |
| 11572660 | LOMBARDINI |
| 11573830 | LOMBARDINI |
| 20021619OV | ITAB AUTOMOTIVE |
| 20119916OE | REAL |
| 2021619.1 | SANDO |
| 2512 | CEVAM |
| 553108RIM | KUHNER |
| 756.001.035.311 | PSH |
| AAK3195 | ISKRA / LETRIKA |
| AAK3570 | ISKRA / LETRIKA |
| AIS619 | AUTOTEAM |
| ALI3476 | KRAUF |
| ALT20683 | WOODAUTO |
| ALT236190 | SIOM |
| ALT79420 | ELECTROLOG |
| ALTE140 | 3EFFE |
| CAL21619GS | CASCO |
| G105096 | BTS TURBO |
| IA0488 | ISKRA / LETRIKA |
| MG565 | MAHLE |
| UD102571A | AS-PL |
