Price:
NZ$ 442.88 including GST
NZ$ 385.11 excluding GST
or four payments of $110.72
with
Learn More
each

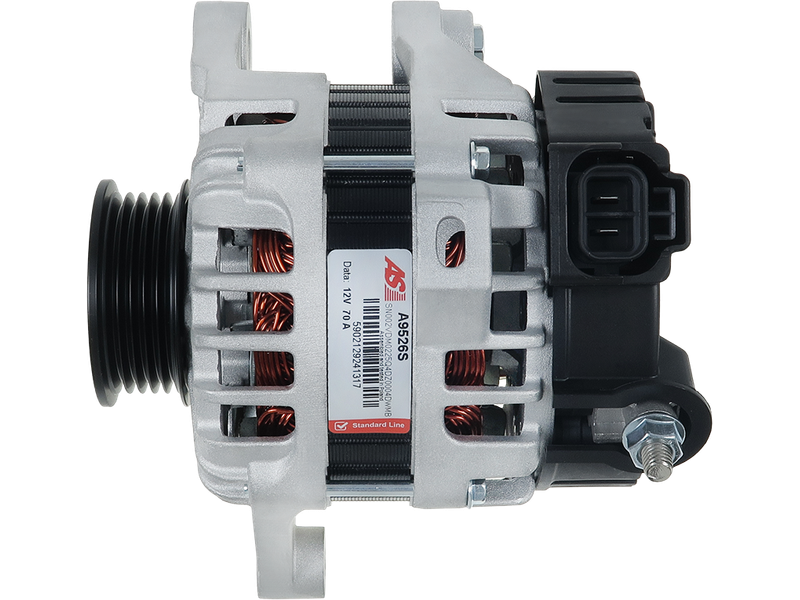

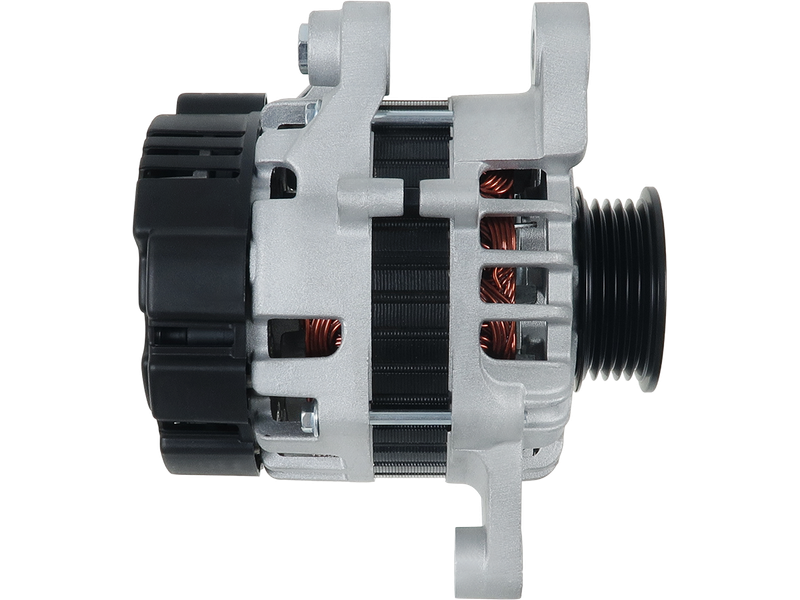

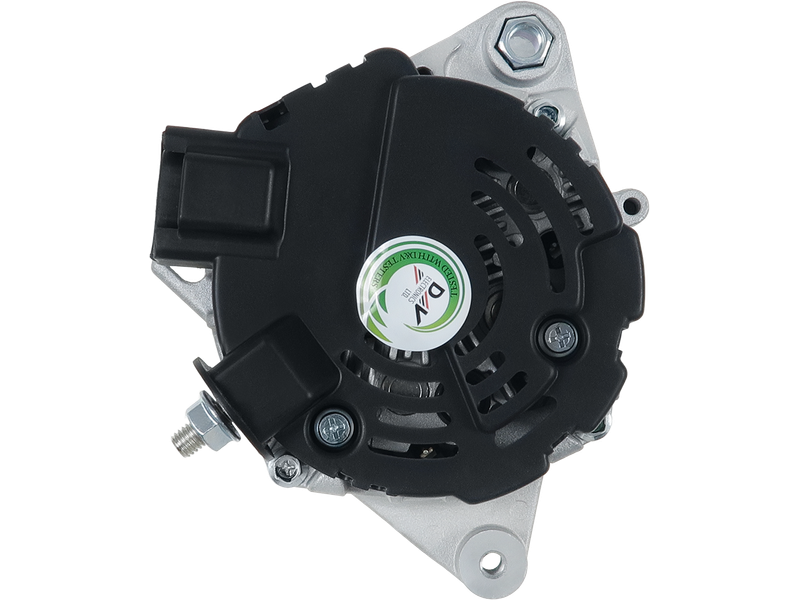

A9526S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 70 A |
| Bottom Mounting Foot Width (B) | 16 mm |
| Diameter (D.1) | 10.50 mm |
| Diameter (D.2) | M8x1.25 mm |
| Diameter (D.3) | M10x1.25 mm |
| Length (L.1) | 166 mm |
| Mount Inside Length or Pad Mount C-C (C) | 43 mm |
| Plug Code | PL_2003 |
| Pulley Grooves | 5 qty |
| Pulley Outside Diameter (O.D.1) | 57.50 mm |
| Pulley to Mount Distance (A) | 20 mm |
| Pulley Type | Solid |
| Unit Type | HYUNDAI / KIA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HYUNDAI | i10 1.0 | [G3LA] | 01.2011-12.2013 |
| KIA | Picanto 1.0 | [G3LA] | 05.2011-03.2017 |
| KIA | Picanto 1.0 Bi-Fuel | [B3LA] | 05.2011-10.2014 |
| KIA | Picanto 1.0 LPG | [B3LA] | 08.2013-03.2017 |
Reference Information
| 063730046010 | MAGNETI MARELLI |
| 20032183OV | ITAB AUTOMOTIVE |
| 20193381OE | REAL |
| 2032183.1 | SANDO |
| 209597 | ERA |
| 21893N | WAI / TRANSPO |
| 224322702 | DRI |
| 255.540.070.000 | PSH |
| 255.540.070.360 | PSH |
| 255.540.070.460 | PSH |
| 28-7532 | ELSTOCK |
| 37300-04010 | HYUNDAI / KIA |
| 40021 | CEVAM |
| 444358 | VALEO |
| 57719 | EAI |
| 600228 | VALEO |
| 719ST75 | STARTCAR |
| 89216054 | POWERMAX |
| A0002656193 | MANDO |
| A132.438 | PSH |
| A147.442 | PSH |
| AL03485 | TMI |
| ALT01048 | ELECTROLOG |
| ALT341830 | SIOM |
| AMA183 | AUTOTEAM |
| ANM98665 | ANDEL |
| BN3730004010 | MANDO |
| CAL32183GS | CASCO |
| DRA1683 | DELCO |
| EAL-3022 | KAVO PARTS |
| G102706 | BTS TURBO |
| G102707 | BTS TURBO |
| KI8008 | SNRA |
| LRA03922 | LUCAS |
| LRA3922 | LUCAS |
| MQA046 | MAGNETI MARELLI |
| UD91222A | AS-PL |
| VAL600228 | WOODAUTO |
| WG2472267 | WILMINK GROUP |
