Price:
NZ$ 1,091.65 including GST
NZ$ 949.26 excluding GST
or four payments of $272.91
with
Learn More
each

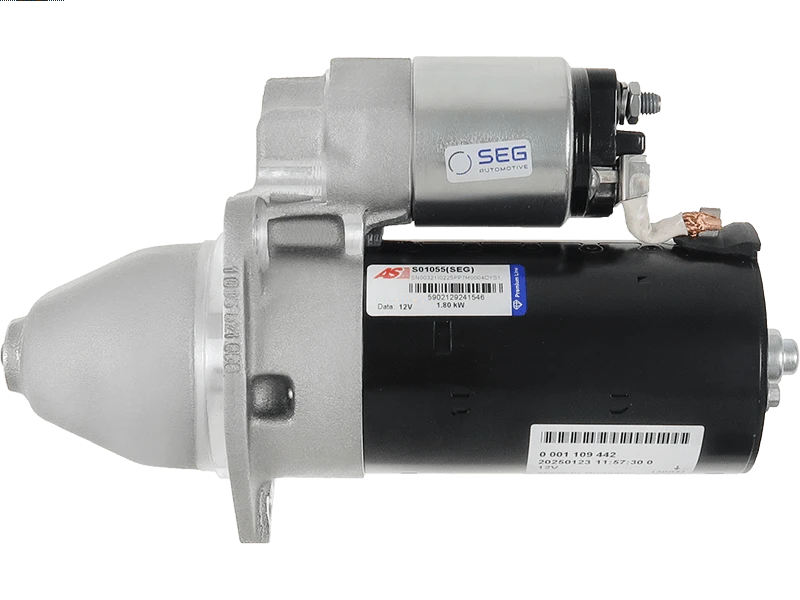

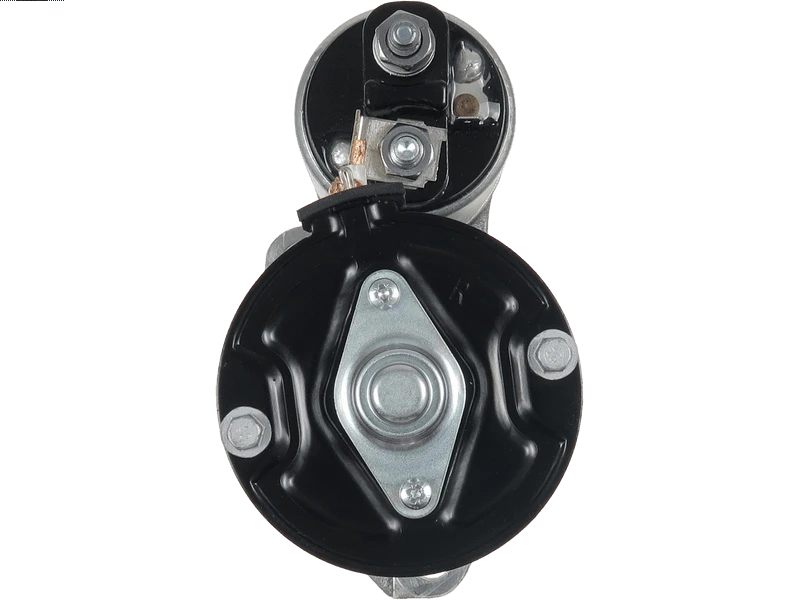

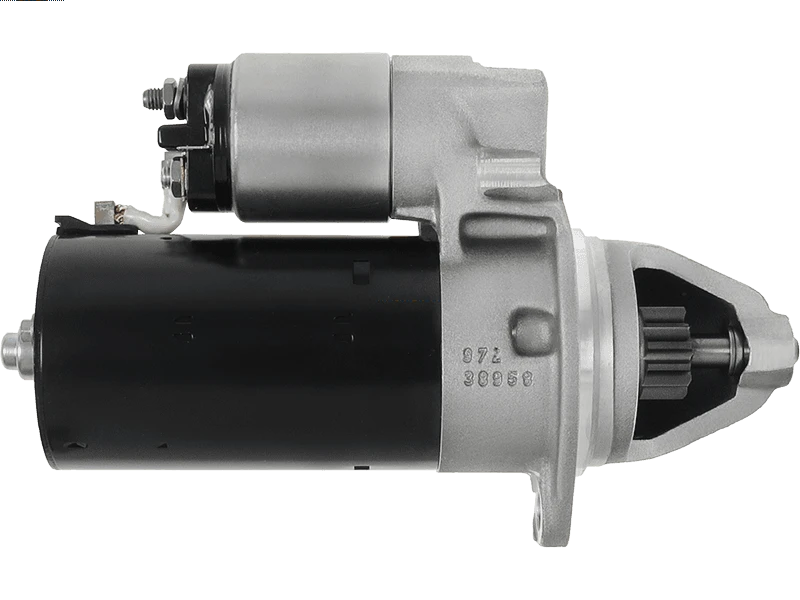

S01055(SEG)
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 1.80 kW |
| Length (L.1) | 265 mm |
| Mount Hole Center - Center (O.1) | 100 mm |
| Mount Hole Diameter (C.1) | 12.50 mm |
| Mount Hole Diameter (C.2) | 12.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 40 mm |
| Rotation | CW |
| Spigot Diameter (A) | 82 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HATZ | Engine | [1D60] | 01.1990-12.1991 |
| HATZ | Engine | [1D80] | 01.1990-12.1991 |
Reference Information
| 0001109363 | BOSCH |
| 0001109363-R | BOSCH |
| 0001109442 | BOSCH |
| 0001314047 | BOSCH |
| 0986018080 | BOSCH |
| 10010314RV | ITAB AUTOMOTIVE |
| 10440742 | ALANKO |
| 112040 | CARGO |
| 116333 | CARGO |
| 1986S00753 | BOSCH |
| 20401413BN | REAL |
| 20401413RC | REAL |
| 25-2347 | ELSTOCK |
| 260-15101 | DIXIE |
| 50353420 | HATZ |
| 6010314.0 | SANDO |
| 6010314.2 | SANDO |
| 680006102 | DRI |
| 730.501.102.011 | PSH |
| 730.501.102.210 | PSH |
| 730.501.102.280 | PSH |
| 8475 | CEVAM |
| 8EA738258-051 | HELLA |
| A18080 | ATL AUTOTECHNIK |
| AC-CBS1340 | ACAUTO |
| ANM10300 | ANDEL |
| ANM10300X | ANDEL |
| BOS0001109363 | WOODAUTO |
| BREF032116333 | CARWOOD GROUP |
| CGB-28080 | AINDE |
| CS1340 | HC PARTS |
| CST10314AS | CASCO |
| CST10314RS | CASCO |
| DRS8080 | DELCO |
| F032112040 | CARGO |
| F032116333 | CARGO |
| LRS01434 | LUCAS |
| LRS1434 | LUCAS |
| PRSS530 | 3EFFE |
| S100246 | BTS TURBO |
| S100247 | BTS TURBO |
| S12BH0389 | SIDAT |
| S12BH0389A2 | SIDAT |
| S135.235 | PSH |
| S144.126 | PSH |
| ST00976 | TMI |
| STB1340 | KRAUF |
| STR10171 | ELECTROLOG |
| STRS530 | 3EFFE |
| TS-6176 | DIXIE |
| UD04251(SEG)S | AS-PL |
