Price:
NZ$ 586.27 including GST
NZ$ 509.80 excluding GST
or four payments of $146.57
with
Learn More
each
S01070S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

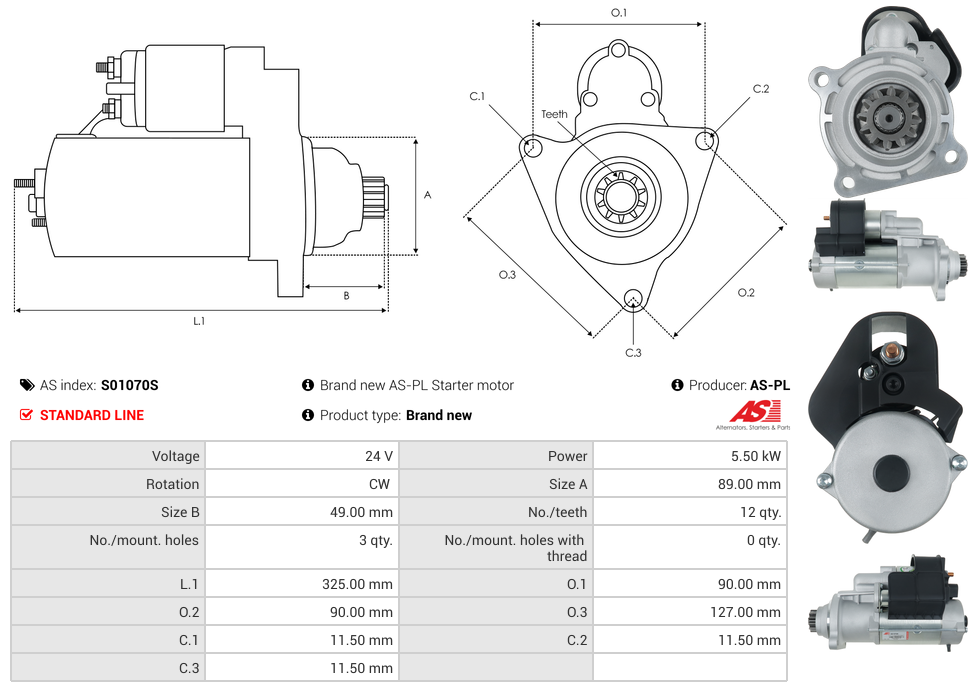

Specifications
| Kilowatt | 5.50 kW |
| Length (L.1) | 325 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 11.50 mm |
| Mount Hole Diameter (C.2) | 11.50 mm |
| Mount Hole Diameter (C.3) | 11.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| Pinion at Rest (B) | 49 mm |
| Rotation | CW |
| Spigot Diameter (A) | 89 mm |
| Unit Type | BOSCH |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| IVECO | Various Models |
Reference Information
| 0001263501 | BOSCH |
| 0001263502 | BOSCH |
| 10010846AV | ITAB AUTOMOTIVE |
| 10010846OV | ITAB AUTOMOTIVE |
| 108270 | FARCOM |
| 20401648BN | REAL |
| 20401648OE | REAL |
| 5801311484 | IVECO |
| 5802001283 | IVECO |
| 6010846.0 | SANDO |
| 6010846.1 | SANDO |
| 994327600 | IVECO |
| CST10846AS | CASCO |
| CST10846GS | CASCO |
| MAV128460A | SIOM |
| UD17339S | AS-PL |
