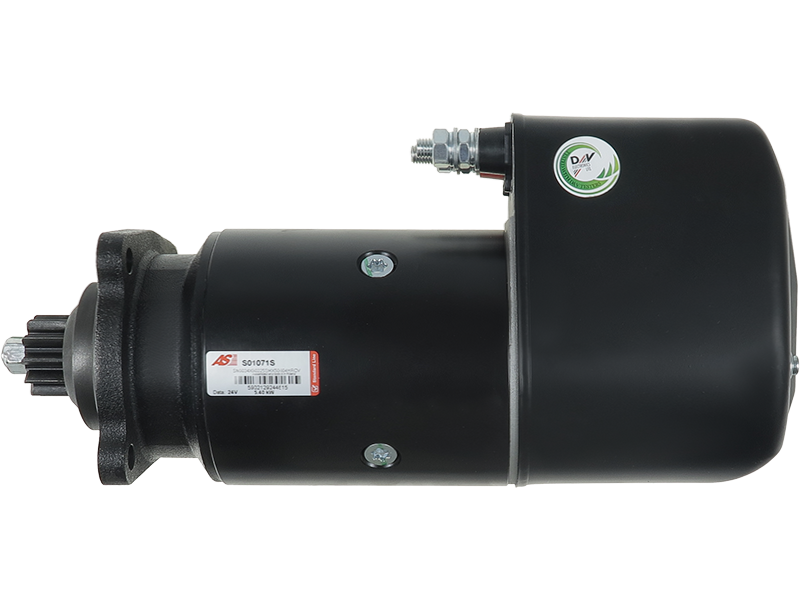

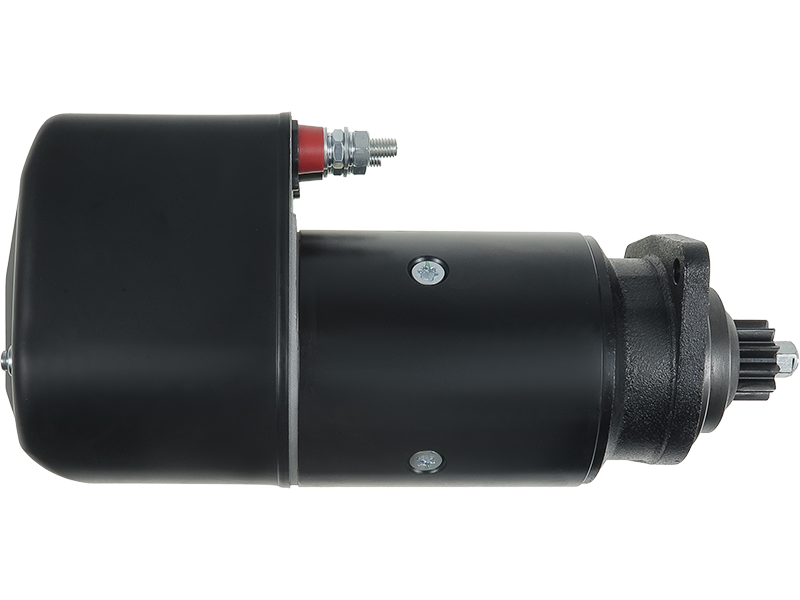

S01071S - Brand new AS-PL Starter motor

Name: Brand new AS-PL Starter motor
Brand: AS GROUP NZ
SKU: S01071S
Price: 789.83 NZD
Availability: BackOrder

Price:

NZ$ 789.83 including GST

NZ$ 686.81 excluding GST

or four payments of $197.46 with
Learn More

UOM:

each

Product Code:

S01071S

Quantity In Stock Nationally:

No stock in NZ currently

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

Specifications
Vehicle Applications
Reference Information

Kilowatt	5.40 kW
Length (L.1)	390 mm
Mount Hole Center - Center (O.1)	90 mm
Mount Hole Center - Center (O.2)	90 mm
Mount Hole Center - Center (O.3)	127 mm
Mount Hole Diameter (C.1)	11 mm
Mount Hole Diameter (C.2)	11 mm
Mount Hole Diameter (C.3)	11 mm
No./Mount holes	3 qty
No./Mount holes with thread	0 qty
No./Teeth	11 qty
Pinion at Rest (B)	46 mm
Rotation	CW
Spigot Diameter (A)	89 mm
Unit Type	BOSCH
Voltage	24 V

Make	Model	Type	Year
VOLVO	B12 12.0	[TD122FH]	01.1991-12.2006
VOLVO	B12 12.0	[TD122FH]	01.1992-
VOLVO	B12 12.0	[TD122FL]	01.1991-12.2006
VOLVO	B12 12.0	[TD122FL]	01.1992-
VOLVO	B12 12.0	[TD123E]	01.1991-12.2006
VOLVO	B12 12.0	[TD123EC]	01.1991-12.2006
VOLVO	B12 12.0	[TD123ES]	01.1991-12.2006
VOLVO	B12 12.0	[TD123ES]	01.1992-
VOLVO	B12 12.1	[D12A340]	01.1991-12.2006
VOLVO	B12 12.1	[D12A370]	01.1991-12.2006
VOLVO	B12 12.1	[D12A380]	01.1991-12.2006
VOLVO	B12 12.1	[D12A410]	01.1991-12.2006
VOLVO	B12 12.1	[D12A420]	01.1991-12.2006
VOLVO	B12 12.1	[D12A420]	01.1992-
VOLVO	B12 12.1	[D12B390]	01.1991-12.2006
VOLVO	B12 12.1	[D12B430]	01.1991-12.2006
VOLVO	B12 12.1	[D12C390]	01.1991-12.2006
VOLVO	B12 12.1	[D12C430]	01.1991-12.2006
VOLVO	B12 12.1	[D12D340]	01.1991-12.2006
VOLVO	B12 12.1	[D12D380]	01.1991-12.2006
VOLVO	B12 12.1	[D12D420]	01.1991-12.2006
VOLVO	B12 12.1		01.1991-12.2006
VOLVO	F 10/320 9.6	[TD102F]	01.1987-12.1995
VOLVO	F 10/320 9.6	[TD102F]	10.1987-12.1990
VOLVO	F 10/320 9.6	[TD102F]	12.1990-12.1994
VOLVO	F 10/320 9.6	[TD102FBQ]	10.1987-12.1990
VOLVO	F 10/320 9.6	[TD102FBQ]	12.1990-12.1994
VOLVO	F 10/320 9.6	[TD102FD]	01.1987-12.1995
VOLVO	F 10/320 9.6	[TD102FDQ]	10.1987-12.1990
VOLVO	F 10/320 9.6	[TD102FDQ]	12.1990-12.1994
VOLVO	F 10/320 9.6	[TD102FF]	01.1987-12.1995
VOLVO	F 10/320 9.6	[TD102FF]	10.1987-12.1990
VOLVO	F 10/320 9.6	[TD102FF]	12.1990-12.1994
VOLVO	F 10/320 9.6	[TD102FL]	01.1987-12.1995
VOLVO	F 10/320 9.6	[TD102FL]	10.1987-12.1990
VOLVO	F 10/320 9.6	[TD102FL]	12.1990-12.1994
VOLVO	F 10/320 9.6	[TD102FM]	01.1987-12.1995
VOLVO	F 10/320 9.6	[TD102FM]	10.1987-12.1990
VOLVO	F 10/320 9.6	[TD102FM]	12.1990-12.1994
VOLVO	F 10/320 9.6	[TD103E]	10.1987-12.1990
VOLVO	F 10/320 9.6	[TD103E]	12.1990-12.1994
VOLVO	F 10/320 9.6	[TD103ES]	01.1987-12.1995
VOLVO	F 10/320 9.6	[TD103ES]	10.1987-12.1990
VOLVO	F 10/320 9.6	[TD103ES]	12.1990-12.1994
VOLVO	F 12/360 12.0	[TD122F]	01.1987-12.1995
VOLVO	F 12/360 12.0	[TD122F]	01.1988-12.1990
VOLVO	F 12/360 12.0	[TD122F]	01.1991-12.1994
VOLVO	F 12/360 12.0	[TD122F]	10.1990-12.1994
VOLVO	F 12/360 12.0	[TD122F]	12.1990-12.1994
VOLVO	F 12/360 12.0	[TD122FH]	01.1987-12.1995
VOLVO	F 12/360 12.0	[TD122FH]	01.1988-12.1990
VOLVO	F 12/360 12.0	[TD122FH]	01.1991-12.1994
VOLVO	F 12/360 12.0	[TD122FH]	10.1990-12.1994
VOLVO	F 12/360 12.0	[TD122FH]	12.1990-12.1994
VOLVO	F 12/360 12.0	[TD122FR]	01.1987-12.1995
VOLVO	F 12/360 12.0	[TD123E]	01.1987-12.1995
VOLVO	F 12/380 12.0	[TD122FK]	01.1987-12.1995
VOLVO	F 12/390 12.0	[TD122FA]	01.1987-12.1995
VOLVO	F 12/400 12.0	[TD122FL]	01.1987-12.1995
VOLVO	F 12/400 12.0	[TD122FL]	01.1988-12.1990
VOLVO	F 12/400 12.0	[TD122FL]	12.1990-12.1994
VOLVO	F 12/400 12.0	[TD122FS]	01.1987-12.1995
VOLVO	F 12/400 12.0	[TD122FS]	01.1988-12.1990
VOLVO	F 12/400 12.0	[TD122FS]	01.1988-12.1994
VOLVO	F 12/400 12.0	[TD122FS]	12.1990-12.1994
VOLVO	F 12/400 12.0	[TD123ES]	01.1988-12.1994
VOLVO	F 12/400 12.0	[TD123ES]	12.1990-12.1994
VOLVO	F 12/410 12.0	[TD122FL]	01.1988-12.1994
VOLVO	F 12/410 12.0	[TD122FL]	12.1990-12.1994
VOLVO	F 12/410 12.0	[TD122FS]	01.1988-12.1994
VOLVO	F 12/410 12.0	[TD122FS]	12.1990-12.1994
VOLVO	F 12/410 12.0	[TD123ES]	01.1987-12.1995
VOLVO	F 12/410 12.0	[TD123ES]	01.1988-12.1994
VOLVO	FL 10/280 9.6	[TD101G]	09.1985-12.1990
VOLVO	FL 10/285 9.6	[TD101G]	09.1985-02.1996
VOLVO	FL 10/285 9.6	[TD102FH]	09.1985-02.1996
VOLVO	FL 10/285 9.6	[TD103E]	09.1985-02.1996
VOLVO	FL 10/310 9.6	[D10A310]	09.1985-09.1998
VOLVO	FL 10/310 9.6	[TD101F]	09.1985-09.1998
VOLVO	FL 10/310 9.6	[TD101FC]	09.1985-09.1998
VOLVO	FL 10/310 9.6	[TD101FD]	09.1985-09.1998
VOLVO	FL 10/310 9.6	[TD102FF]	09.1985-02.1996
VOLVO	FL 10/310 9.6	[TD102FM]	09.1985-02.1996
VOLVO	FL 10/310 9.6	[TD103EA]	09.1985-09.1998
VOLVO	FL 10/320 9.6	[D10A320]	09.1985-09.1998
VOLVO	FL 10/320 9.6	[D10A320]	12.1995-09.1998
VOLVO	FL 10/320 9.6	[TD102F]	09.1985-09.1998
VOLVO	FL 10/320 9.6	[TD102FDQ]	09.1985-09.1998
VOLVO	FL 10/320 9.6	[TD102FL]	09.1985-09.1998
VOLVO	FL 10/320 9.6	[TD102FQ]	09.1985-09.1998
VOLVO	FL 10/320 9.6	[TD103ES]	09.1992-02.1996
VOLVO	FL 10/350 9.6		02.1995-09.1998
VOLVO	FL 10/360 9.6	[D10A360]	02.1995-09.1998
VOLVO	FL 10/360 9.6	[D10A360]	12.1995-09.1998
VOLVO	FL 10H/320 9.6	[D10A320]	12.1995-09.1998
VOLVO	FL 10H/360 9.6	[D10A360]	12.1995-09.1998
VOLVO	FM 10/320 9.6	[D10A320]	04.1999-12.2001
VOLVO	FM 10/320 9.6	[D10B320]	04.1999-12.2001
VOLVO	FM 10/360 9.6	[D10B360]	04.1999-12.2001
VOLVO	NL 10/260 9.6	[TD101G]	01.1989-12.1992
VOLVO	NL 10/280 9.6	[TD102FS]	01.1989-12.1995
VOLVO	NL 10/310 9.6	[TD102F]	01.1989-12.1995
VOLVO	NL 10/310 9.6	[TD102FT]	01.1992-12.1995
VOLVO	NL 10/320 9.6	[TD102FL]	01.1992-12.1995
VOLVO	NL 10/320 9.6	[TD103ES]	01.1989-12.1995
VOLVO	NL 12/290 12.0	[TD121G]	01.1989-12.1992
VOLVO	NL 12/360 12.0	[TD122F]	01.1992-12.1995
VOLVO	NL 12/360 12.0	[TD122FR]	01.1992-12.1995
VOLVO	NL 12/400 12.0	[TD122FS]	01.1989-12.1995

0001415005	BOSCH
0001416007	BOSCH
10010776AV	ITAB AUTOMOTIVE
103518	FARCOM
10440022	ALANKO
11031126	VOLVO
11090167	EUROTEC
1540831401	KUBOTA
20401677BN	REAL
20401677EL	REAL
220229R	ERA
22604	ERA
422997	VOLVO
51262017029	MAN
6010776.0	SANDO
6010776.3	SANDO
7240340	VOLVO
811.211.113.010	PSH
811.211.113.016	PSH
811.211.113.310	PSH
8113900	VOLVO
81262019029	MAN
BREF032110207	CARWOOD GROUP
CST10776AS	CASCO
CST10776ES	CASCO
F032110207	BOSCH
MAV127760A	SIOM
REM19024014	WOODAUTO
RNL416007	RNL
S100995	BTS TURBO
S135.470	PSH
S145.686	PSH
STR1426	ELECTROLOG
TT15467	TESLA TECHNICS
UD102941S	AS-PL
