Price:
NZ$ 240.74 including GST
NZ$ 209.34 excluding GST
or four payments of $60.19
with
Learn More
each

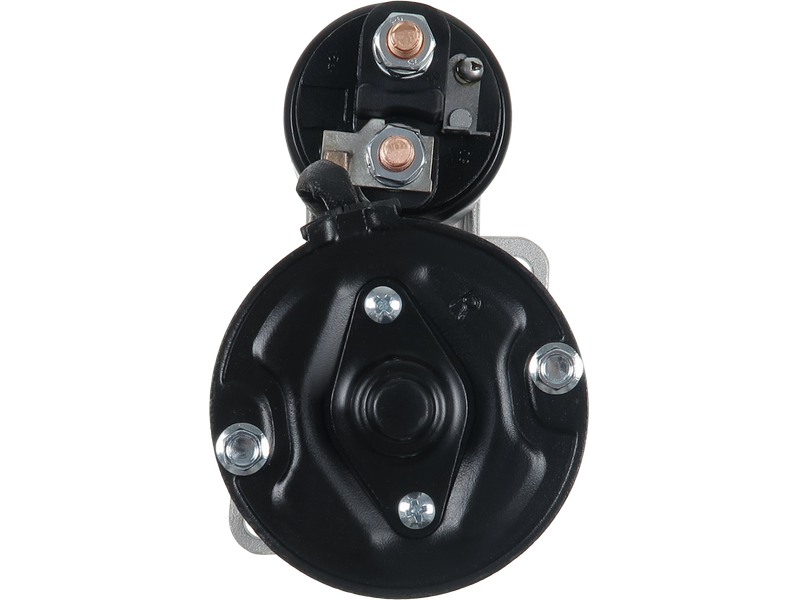

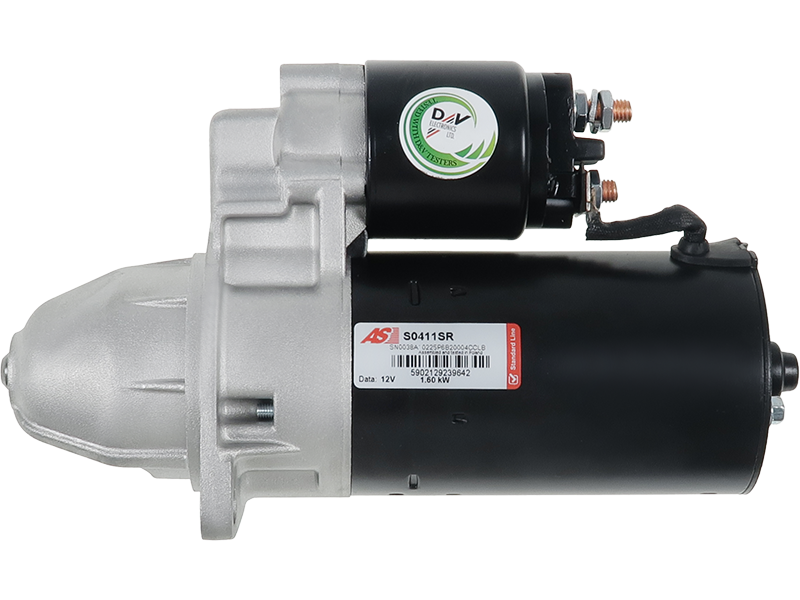

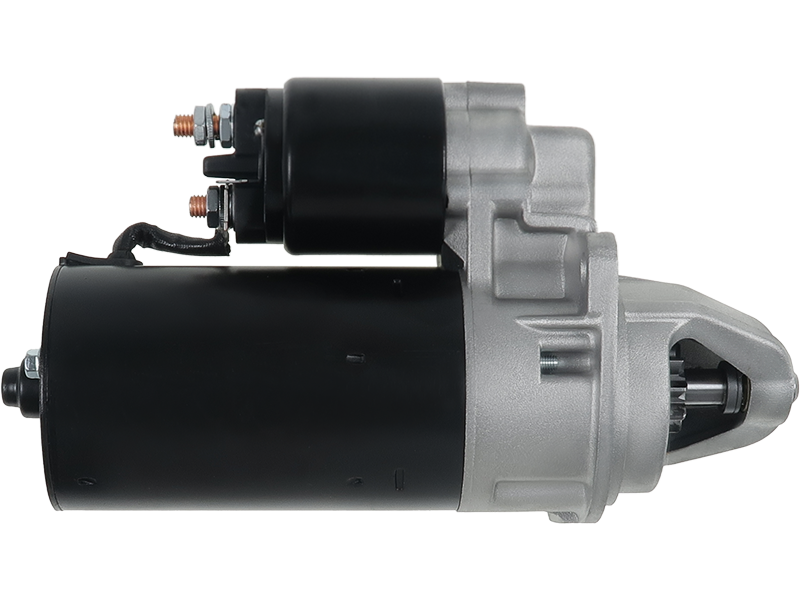

S0411SR
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 1.60 kW |
| Length (L.1) | 255 mm |
| Mount Hole Center - Center (O.1) | 105 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 27 mm |
| Rotation | CW |
| Spigot Diameter (A) | 76 mm |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AMMANN | RX1510-CI 1.0 | [LDW1003] | 01.2008- |
| BCS | 300 1.0 | [LDW1003] | 01.2005- |
| BCS | 400 1.4 | [LDW1404] | 01.2005- |
| LOMBARDINI | 904 1.2 | 01.1995- | |
| LOMBARDINI | Engine 0.7 | [7LD665F] | 01.1992- |
| LOMBARDINI | Engine 0.7 | [7LD740F] | 01.1992- |
| LOMBARDINI | Engine 0.7 | [8LD740.2] | 01.1992- |
| LOMBARDINI | Engine 0.7 | [LDW702] | |
| LOMBARDINI | Engine 1.0 | [LDW1003] | |
| LOMBARDINI | Engine 1.1 | [9LD561.2] | 01.1992- |
| LOMBARDINI | Engine 1.2 | [9LD625.2] | 01.1992- |
| PIAGGIO | Porter 1.4 D | [LDW1404] | 04.1998- |
| PIAGGIO | Quargo 0.7 D | [LDW702] | 01.2004- |
| VOLVO | ZL302C 1.4 | [F4M1008] |
Reference Information
| 0001109009 | BOSCH |
| 0001109009 | BOSCH |
| 0001110042 | BOSCH |
| 0001110042 | BOSCH |
| 0001115034 | BOSCH |
| 0001115034 | BOSCH |
| 0001115035 | BOSCH |
| 0001115035 | BOSCH |
| 0001314001 | BOSCH |
| 0001314001 | BOSCH |
| 011-001-000038R | REMANTE |
| 011-001-000038R | REMANTE |
| 0986022500 | BOSCH |
| 0986022500 | BOSCH |
| 1005821194 | LOMBARDINI |
| 1005821194 | LOMBARDINI |
| 103696 | FARCOM |
| 103696 | FARCOM |
| 10439777 | ALANKO |
| 10439777 | ALANKO |
| 11022500 | EUROTEC |
| 11022500 | EUROTEC |
| 115816 | CARGO |
| 115816 | CARGO |
| 120-10109 | ROBERT'S |
| 120-10109 | ROBERT'S |
| 120-10109NOE | ROBERT'S |
| 120-10109NOE | ROBERT'S |
| 18365N | WAI / TRANSPO |
| 18365N | WAI / TRANSPO |
| 1986S00762 | BOSCH |
| 1986S00762 | BOSCH |
| 2-0030 | EXACT |
| 2-0030 | EXACT |
| 20401341BN | REAL |
| 20401341BN | REAL |
| 20401341OE | REAL |
| 20401341OE | REAL |
| 220913 | ERA |
| 220913 | ERA |
| 220913A | ERA |
| 220913A | ERA |
| 25-2357 | ELSTOCK |
| 25-2357 | ELSTOCK |
| 254005 | KUHNER |
| 254005 | KUHNER |
| 254005B | KUHNER |
| 254005B | KUHNER |
| 3124616 | HENKEL PARTS |
| 3124616 | HENKEL PARTS |
| 3124617 | HENKEL PARTS |
| 3124617 | HENKEL PARTS |
| 330667 | LOGISTIK |
| 330667 | LOGISTIK |
| 5010367 | MEAT & DORIA |
| 5010367 | MEAT & DORIA |
| 5340147 | LOMBARDINI |
| 5340147 | LOMBARDINI |
| 5840081 | LOMBARDINI |
| 5840081 | LOMBARDINI |
| 5840147 | LOMBARDINI |
| 5840147 | LOMBARDINI |
| 58401470 | LOMBARDINI |
| 58401470 | LOMBARDINI |
| 5840224 | LOMBARDINI |
| 5840224 | LOMBARDINI |
| 58402240 | LOMBARDINI |
| 58402240 | LOMBARDINI |
| 6010143.0 | SANDO |
| 6010143.0 | SANDO |
| 6010143.1 | SANDO |
| 6010143.1 | SANDO |
| 681012092 | CEVAM |
| 681012092 | CEVAM |
| 690.501.092.011 | PSH |
| 690.501.092.011 | PSH |
| 690.501.092.280 | PSH |
| 690.501.092.280 | PSH |
| 690.501.092.460 | PSH |
| 690.501.092.460 | PSH |
| 8014890 | FRIESEN |
| 8014890 | FRIESEN |
| 850051 | PIAGGIO |
| 850051 | PIAGGIO |
| 88212785 | POWERMAX |
| 88212785 | POWERMAX |
| 91-15-7076 | WILSON |
| 91-15-7076 | WILSON |
| A1016373 | CASE |
| A1016373 | CASE |
| A22500 | ATL AUTOTECHNIK |
| A22500 | ATL AUTOTECHNIK |
| ANM16096X | ANDEL |
| ANM16096X | ANDEL |
| ASM1765 | APEC |
| BOS0001115034 | WOODAUTO |
| BOS0001115034 | WOODAUTO |
| BOS0001115035 | WOODAUTO |
| BOS0001115035 | WOODAUTO |
| CGB-23876 | AINDE |
| CGB-23876 | AINDE |
| CMA-621041 | COMLINE |
| CMA-621041 | COMLINE |
| CS1545 | HC PARTS |
| CS1545 | HC PARTS |
| CST10143AS | CASCO |
| CST10143AS | CASCO |
| CST10143GS | CASCO |
| CST10143GS | CASCO |
| DRS3876 | DELCO |
| DRS3876 | DELCO |
| ED0058402240-S | LOMBARDINI |
| ED0058402240-S | LOMBARDINI |
| F002G70047 | BOSCH |
| F002G70047 | BOSCH |
| F032115816 | CARGO |
| F032115816 | CARGO |
| GS115035-A | GPARTS |
| GS115035-A | GPARTS |
| GS115035B-CX | GPARTS |
| GS115035B-CX | GPARTS |
| GS115035B-R | GPARTS |
| GS115035B-R | GPARTS |
| H5010367 | HOFFER |
| H5010367 | HOFFER |
| IR9030 | PROTECH |
| IR9030 | PROTECH |
| LRS01439 | LUCAS |
| LRS01439 | LUCAS |
| LRS1439 | LUCAS |
| LRS1439 | LUCAS |
| MAV6570 | SIOM |
| MAV6570 | SIOM |
| NPANSM1765 | NAPA |
| PRSL070 | 3EFFE |
| PRSL070 | 3EFFE |
| RNL2250 | RNL |
| RNL2250 | RNL |
| S12BH0103A2 | SIDAT |
| S12BH0103A2 | SIDAT |
| S134.804 | PSH |
| S134.804 | PSH |
| S145.398 | PSH |
| S145.398 | PSH |
| S-22070 | DTS |
| S-22070 | DTS |
| S510486 | BTS TURBO |
| S510486 | BTS TURBO |
| SBO143 | AUTOTEAM |
| SBO143 | AUTOTEAM |
| SBO143A | AUTOTEAM |
| SBO143A | AUTOTEAM |
| SEG0001115034 | WOODAUTO |
| SEG0001115034 | WOODAUTO |
| SEG0001115035 | WOODAUTO |
| SEG0001115035 | WOODAUTO |
| SG2041 | GHIBAUDI |
| SG2041 | GHIBAUDI |
| SS115035-A | GPARTS |
| SS115035-A | GPARTS |
| SS115035B-R | GPARTS |
| SS115035B-R | GPARTS |
| ST00984 | TMI |
| ST00984 | TMI |
| STB0515 | KRAUF |
| STB0515 | KRAUF |
| STR10256 | ELECTROLOG |
| STR10256 | ELECTROLOG |
| STR22070 | WOODAUTO |
| STR22070 | WOODAUTO |
| STR50541 | WOODAUTO |
| STR50541 | WOODAUTO |
| STRL070 | 3EFFE |
| STRL070 | 3EFFE |
| VOE9002901237 | VOLVO |
| VOE9002901237 | VOLVO |
| WG2013481 | WILMINK GROUP |
| WG2013481 | WILMINK GROUP |
| WG2013482 | WILMINK GROUP |
| WG2013482 | WILMINK GROUP |
