Price:
NZ$ 357.78 including GST
NZ$ 311.11 excluding GST
or four payments of $89.45
with
Learn More
each

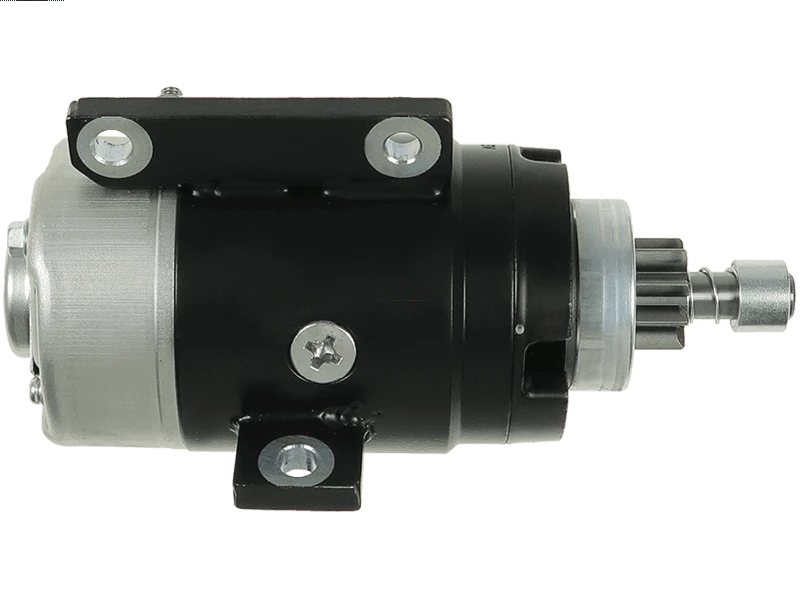

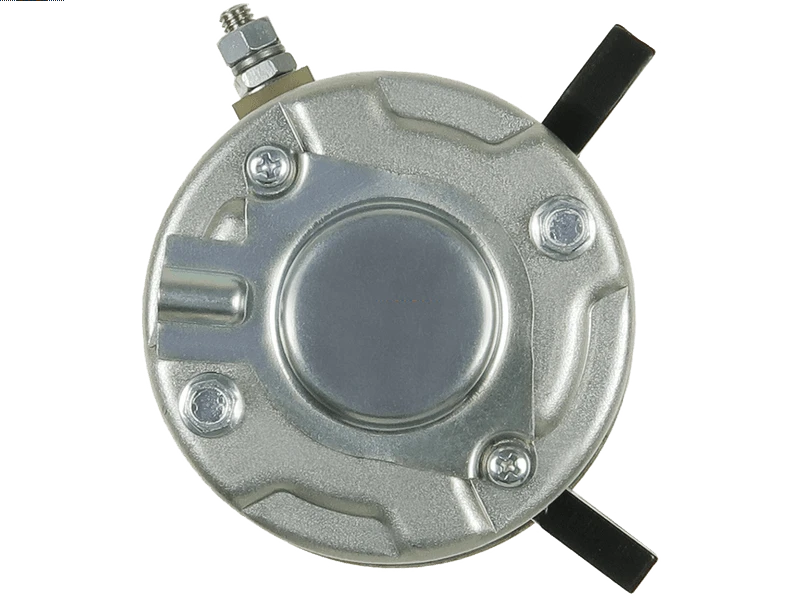

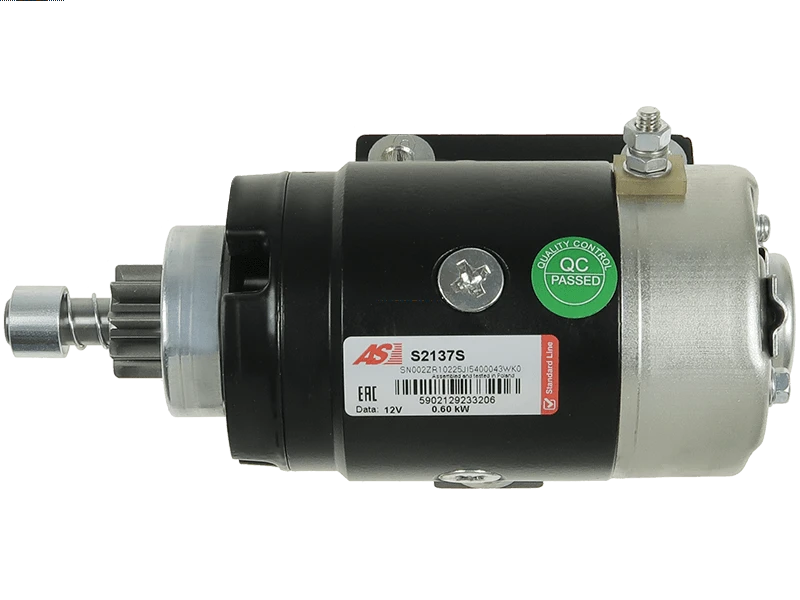

S2137S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.60 kW |
| Length (L.1) | 196 mm |
| Mount Hole Center - Center (O.1) | 67 mm |
| Mount Hole Center - Center (O.2) | 76 mm |
| Mount Hole Center - Center (O.3) | 84 mm |
| Mount Hole Diameter (C.1) | 8 mm |
| Mount Hole Diameter (C.2) | 9 mm |
| Mount Hole Diameter (C.3) | 9 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 31 mm |
| Rotation | ACW |
| Unit Type | HITACHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YAMAHA | Engine | [75H.P.] | 01.1994-12.1999 |
| YAMAHA | Engine | [80H.P.] | 01.1997-12.1997 |
| YAMAHA | Engine | [85H.P.] | 01.1990-12.1996 |
| YAMAHA | Engine | [90ETL] | 01.1984-12.1990 |
| YAMAHA | Engine | [90ETLJD] | 01.1987-12.1990 |
| YAMAHA | Engine | [90ETX] | 01.1984-12.1984 |
| YAMAHA | Engine | [90H.P.] | 01.1984-12.2006 |
| YAMAHA | Engine | [90TJR] | 01.1993-12.2001 |
| YAMAHA | Engine | [90TLR] | 01.1991-12.2008 |
| YAMAHA | Engine | [B90TLR] | 01.1998-12.1999 |
| YAMAHA | Engine | [C75TLR] | 01.1994-12.1999 |
| YAMAHA | Engine | [C80TLR] | 01.1997-12.1997 |
| YAMAHA | Engine | [C85TLR] | 01.1991-12.1996 |
| YAMAHA | Engine | [C90TLR] | 01.1997-12.2001 |
| YAMAHA | Engine | [CV85EL] | 01.1990-12.1990 |
| YAMAHA | Engine | [CV85ETL] | 01.1990-12.1990 |
| YAMAHA | Engine | [P75TLH] | 01.1996-12.1999 |
Reference Information
| 10020247AV | ITAB AUTOMOTIVE |
| 104-10387 | ROBERT'S |
| 107586 | FARCOM |
| 18344 | LESTER |
| 18344N | WAI / TRANSPO |
| 18344N-OE | WAI / TRANSPO |
| 20445742BN | REAL |
| 20445742OE | REAL |
| 2-2517-HI | WAI / TRANSPO |
| 2-2517-HI-1 | WAI / TRANSPO |
| 240-10105 | DIXIE |
| 256723 | KUHNER |
| 400.048.093.080 | PSH |
| 400.048.093.270 | PSH |
| 6020247.0 | SANDO |
| 6020247.1 | SANDO |
| 688-81800-10 | YAMAHA |
| 688-81800-10-00 | YAMAHA |
| 688-81800-11 | YAMAHA |
| 688-81800-11-00 | YAMAHA |
| 688-81800-12 | YAMAHA |
| 688-81800-12-00 | YAMAHA |
| 71-25-18344 | WILSON |
| CMA-661276 | COMLINE |
| CST20247AS | CASCO |
| CST20247GS | CASCO |
| PRSJ046 | 3EFFE |
| S114-263 | HITACHI |
| S114-263B | HITACHI |
| S114-263BN | HITACHI |
| S132.075 | PSH |
| SHI247A | AUTOTEAM |
| ST-18344 | RCP |
| STRJ046 | 3EFFE |
| TT16899 | TESLA |
| UD102466S | AS-PL |
