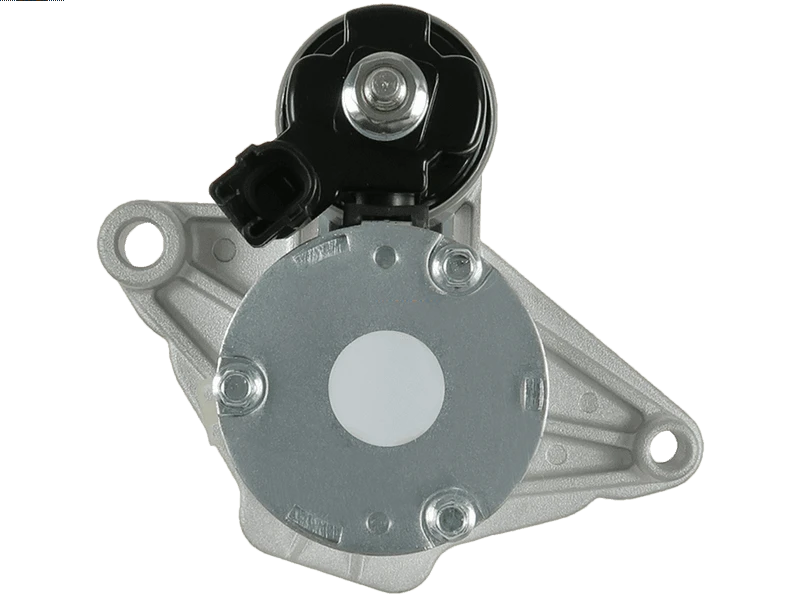

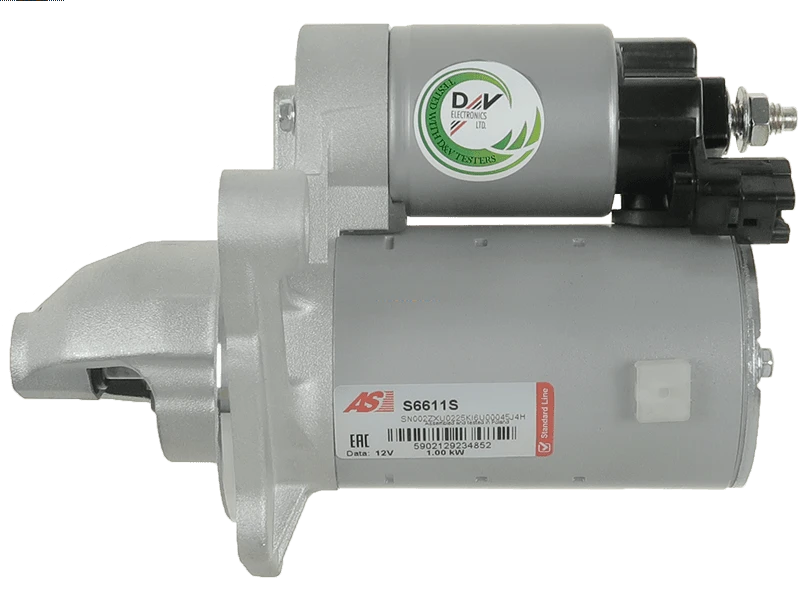

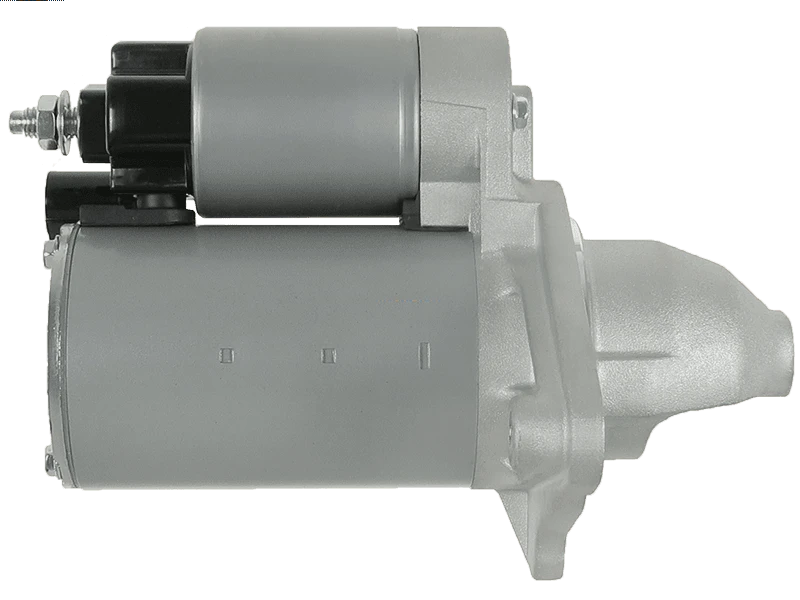

Specifications
Kilowatt | 1 kW |
Length (L.1) | 190 mm |
Mount Hole Center - Center (O.1) | 137 mm |
Mount Hole Diameter (C.1) | 11 mm |
Mount Hole Diameter (C.2) | M10x1.25 mm |
No./Mount holes | 2 qty |
No./Mount holes with thread | 1 qty |
No./Teeth | 9 qty |
Pinion at Rest (B) | 24 mm |
Rotation | CW |
Spigot Diameter (A) | 74 mm |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
TOYOTA | Sienta 1.5 | [2NR-FE] | 01.2016- |
TOYOTA | Vios 1.3 | [1NR-FE] | 01.2016- |
TOYOTA | Vios 1.5 | [2NR-FE] | 01.2016- |
TOYOTA | Yaris 1.3 | [1NR-FE] | 01.2016- |
TOYOTA | Yaris 1.5 | [2NR-FE] | 01.2016- |
Reference Information
28100-0Y300 | TOYOTA |
28100-0Y340 | TOYOTA |
30570 | LESTER |
30570N | WAI / TRANSPO |
438000-3630 | DENSO |
STN3186 | KRAUF |
UD102536S | AS-PL |
