Price:
NZ$ 604.03 including GST
NZ$ 525.24 excluding GST
or four payments of $151.01
with
Learn More
each

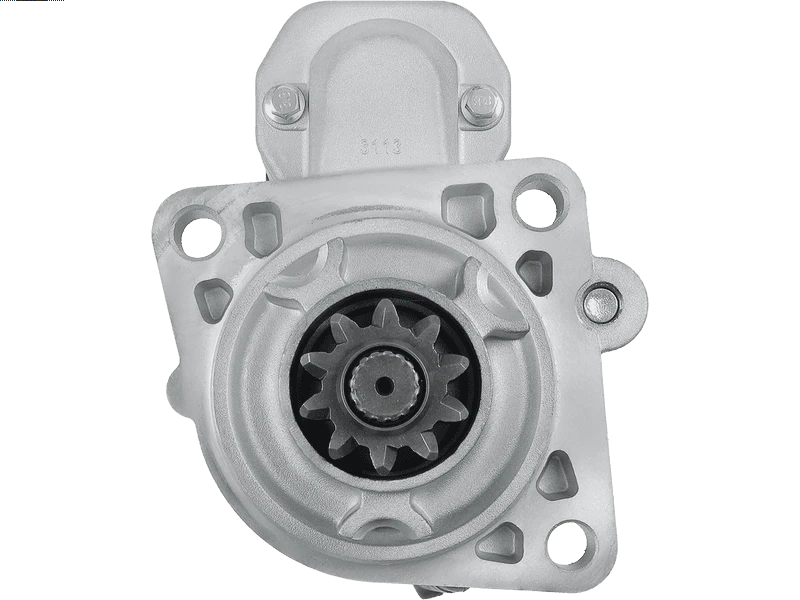

S6630S
No stock in NZ currently
No stock in NZ currently
Specifications
| Kilowatt | 7.80 kW |
| Length (L.1) | 300 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 127 mm |
| Mount Hole Diameter (C.1) | 12 mm |
| Mount Hole Diameter (C.2) | 12 mm |
| Mount Hole Diameter (C.3) | 12 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 10 qty |
| Pinion at Rest (B) | 50 mm |
| Rotation | CW |
| Spigot Diameter (A) | 88 mm |
| Unit Type | DENSO |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 160G LC 4.5 | [4045] | 01.2012-12.2022 |
| JOHN DEERE | 180G LC 4.5 | [4045] | 01.2012-12.2022 |
| JOHN DEERE | 2154G 6.8 | [6068] | 01.2016-12.2019 |
| JOHN DEERE | 2154G LC 6.8 | [6068] | 01.2016-12.2019 |
| JOHN DEERE | 2156G 6.8 | [6068] | 01.2016-12.2018 |
| JOHN DEERE | 2156G 6.8 | [6068] | 01.2016-12.2019 |
| JOHN DEERE | 2156G LC 6.8 | [6068] | 01.2016-12.2018 |
| JOHN DEERE | 2156G LC 6.8 | [6068] | 01.2016-12.2019 |
| JOHN DEERE | 2654G 6.8 | [6068] | 01.2016-12.2019 |
| JOHN DEERE | 2654G LC 6.8 | [6068] | 01.2016-12.2019 |
| JOHN DEERE | 2656G 6.8 | [6068] | 01.2016-12.2019 |
| JOHN DEERE | 2656G LC 6.8 | [6068] | 01.2016-12.2019 |
| JOHN DEERE | 300G LC 6.8 | [6068] | 01.2014-12.2018 |
| JOHN DEERE | 344K 4.5 | [4045] | 01.2013-12.2018 |
| LIEBHERR | R924 7.0 | [D934-A7] | 01.2012-12.2019 |
Reference Information
| 190-90123 | ROBERT'S |
| 190-90123NOE | ROBERT'S |
| 256475 | KUHNER |
| 428000-7970 | DENSO |
| 428000-7971 | DENSO |
| 91-29-5945 | WILSON |
| RE543881 | JOHN DEERE |
| RE548696 | JOHN DEERE |
| RE551644 | JOHN DEERE |
| S6630S | AS-PL |
| SE502736 | JOHN DEERE |
| UD102972S | AS-PL |
