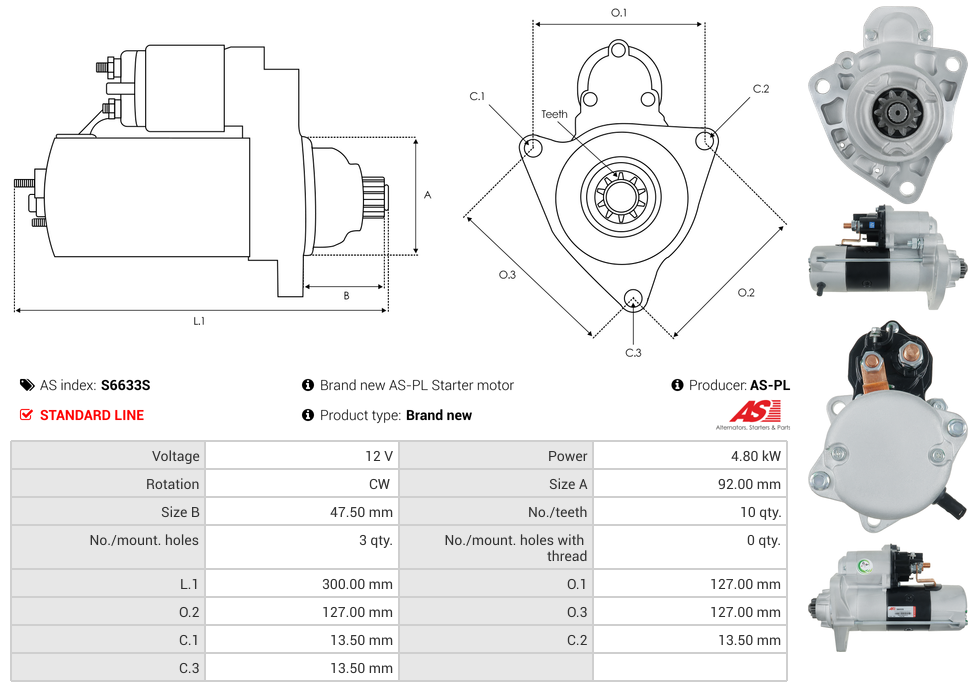

Specifications
Kilowatt | 4.80 kW |
Length (L.1) | 300 mm |
Mount Hole Center - Center (O.1) | 127 mm |
Mount Hole Center - Center (O.2) | 127 mm |
Mount Hole Center - Center (O.3) | 127 mm |
Mount Hole Diameter (C.1) | 13.50 mm |
Mount Hole Diameter (C.2) | 13.50 mm |
Mount Hole Diameter (C.3) | 13.50 mm |
No./Mount holes | 3 qty |
No./Mount holes with thread | 0 qty |
No./Teeth | 10 qty |
Pinion at Rest (B) | 47.50 mm |
Rotation | CW |
Spigot Diameter (A) | 92 mm |
Unit Type | DENSO |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CUMMINS | Engine |
Reference Information
107835 | FARCOM |
19334N | WAI / TRANSPO |
3563432 | CUMMINS |
428000-7870 | DENSO |
428000-9960 | DENSO |
5363432 | CUMMINS |
6304587 | CUMMINS |
700.560.103.050 | PSH |
700.560.103.260 | PSH |
DEN4280007870 | WOODAUTO |
HM95R2012SE | PRESTOLITE |
STR70514 | WOODAUTO |
UD102971S | AS-PL |
WOOSTR70514 | WOODAUTO |
