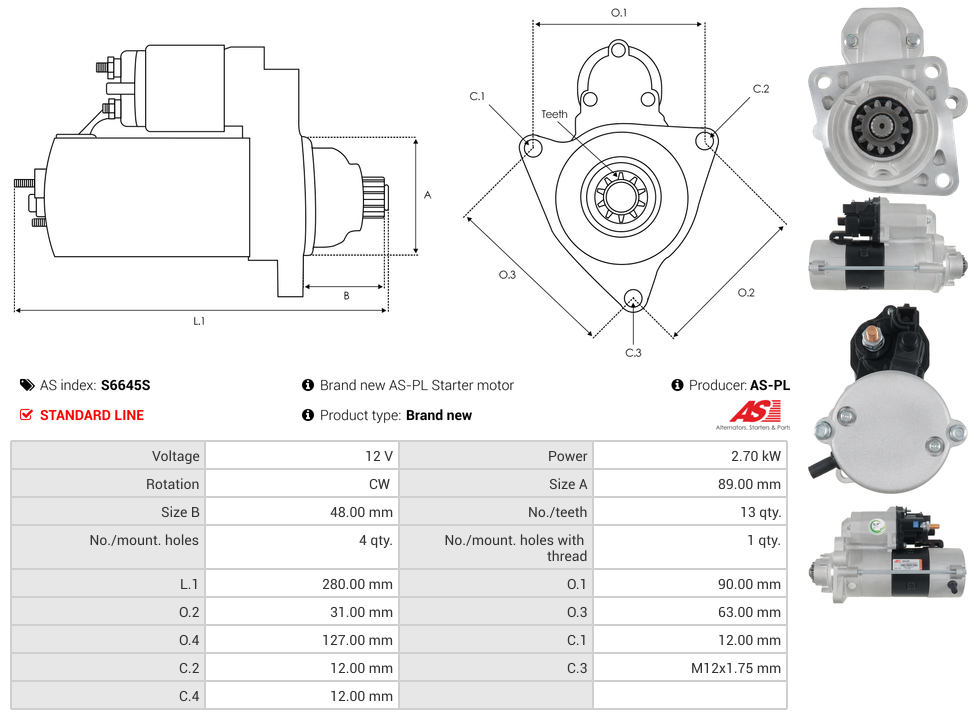

Specifications
Kilowatt | 2.70 kW |
Length (L.1) | 280 mm |
Mount Hole Center - Center (O.1) | 90 mm |
Mount Hole Center - Center (O.2) | 31 mm |
Mount Hole Center - Center (O.3) | 63 mm |
Mount Hole Center - Center (O.4) | 127 mm |
Mount Hole Diameter (C.1) | 12 mm |
Mount Hole Diameter (C.2) | 12 mm |
Mount Hole Diameter (C.3) | M12x1.75 mm |
Mount Hole Diameter (C.4) | 12 mm |
No./Mount holes | 4 qty |
No./Mount holes with thread | 1 qty |
No./Teeth | 13 qty |
Pinion at Rest (B) | 48 mm |
Rotation | CW |
Spigot Diameter (A) | 89 mm |
Voltage | 12 V |
Vehicle Applications
Make | Model | Type | Year |
---|---|---|---|
CUMMINS | Engine 5.0 | [ISV] | |
NISSAN | Various Models |
Reference Information
10040569OV | ITAB AUTOMOTIVE |
108861 | FARCOM |
190-90135 | ROBERT'S |
190-90135NOE | ROBERT'S |
20432965OE | REAL |
256500D | KUHNER |
4335552 | CUMMINS |
438000-2170 | DENSO |
6040569.1 | SANDO |
700.548.133.260 | PSH |
CST40569GS | CASCO |
DENDSN2102 | WOODAUTO |
DSN2102 | DENSO |
GSSN2102-N | GPARTS |
MAV425690 | SIOM |
STN1638 | KRAUF |
UD102981S | AS-PL |
WG2072115 | WILMINK GROUP |
