Price:
NZ$ 144.42 including GST
NZ$ 125.58 excluding GST
or four payments of $36.11
with
Learn More
each

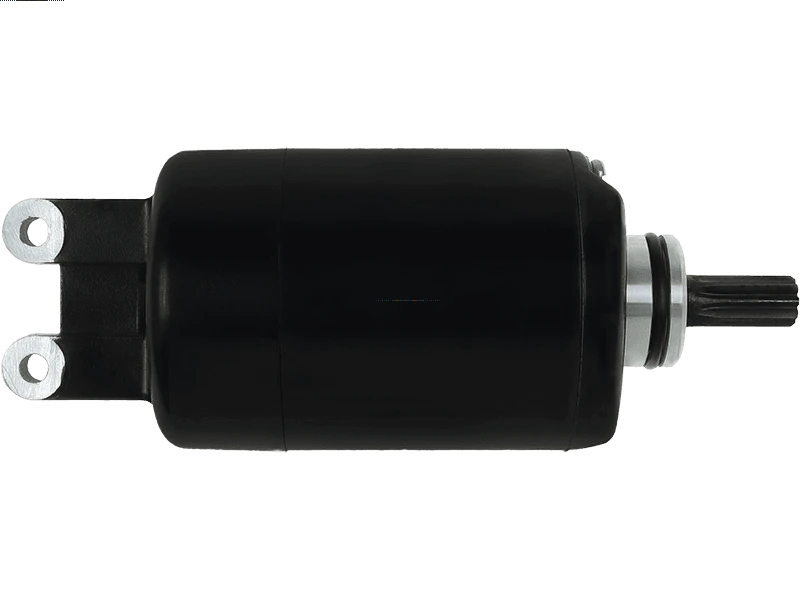

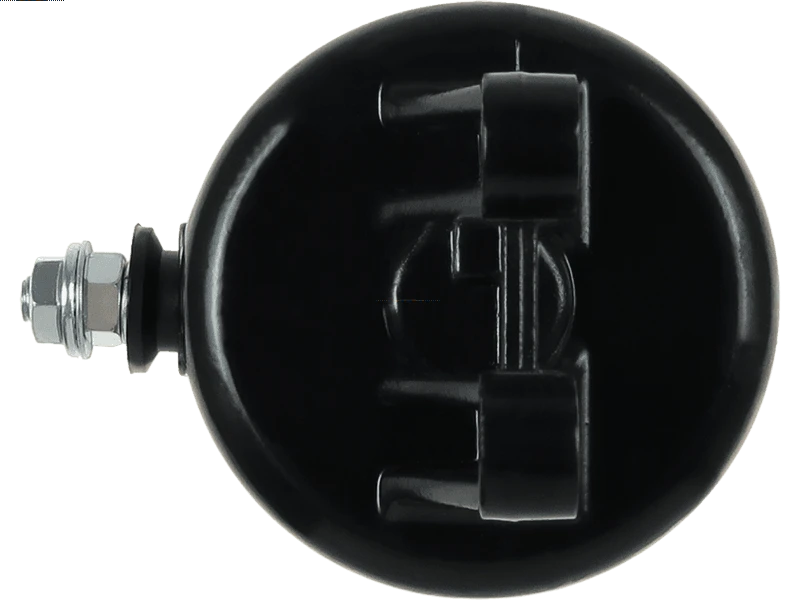

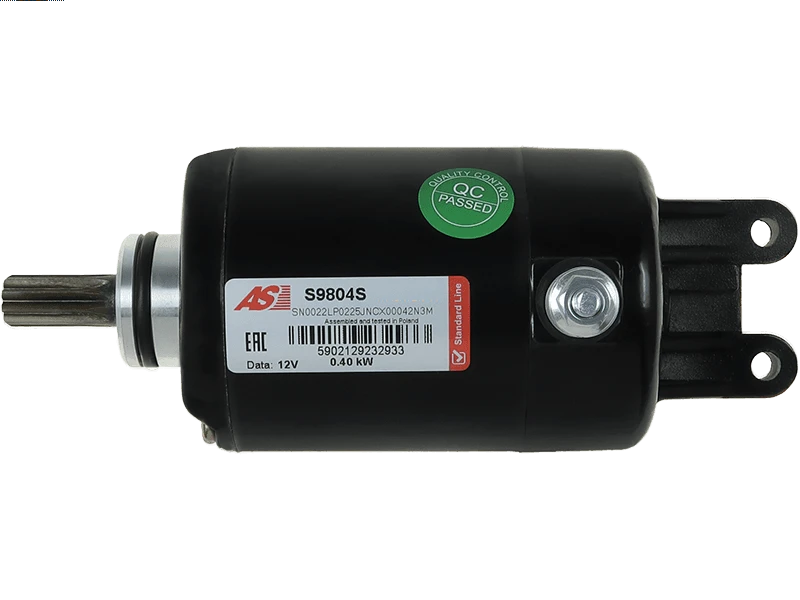

S9804S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Kilowatt | 0.40 kW |
| Length (L.1) | 177 mm |
| Mount Hole Center - Center (O.1) | 30 mm |
| Mount Hole Diameter (C.1) | 6 mm |
| Mount Hole Diameter (C.2) | 6 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 42 mm |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HONDA | FES 250 Foresight 2T | [249cc] | 01.1998-12.2005 |
| HONDA | FES 250 Foresight 4T | [249cc] | 01.2000-12.2005 |
| PIAGGIO | X9 250 | [249cc] | 01.2000-12.2009 |
Reference Information
| 10033121AV | ITAB AUTOMOTIVE |
| 108705 | FARCOM |
| 19593 | LESTER |
| 19593N | WAI / TRANSPO |
| 20467121BN | REAL |
| 255814 | KUHNER |
| 31200-KAB-008 | HONDA |
| 31200-KAB-018 | HONDA |
| 410-58026 | J&N |
| 496278 | PIAGGIO |
| 6033121.0 | SANDO |
| 71-38-19593 | WILSON |
| 755010 | PEUGEOT |
| CH2-0005N | JUST PARTS |
| CST33121AS | CASCO |
| MAV351210A | SIOM |
| SCH0024 | ARROWHEAD |
| SM13-268 | MITSUBA |
| SMT121A | AUTOTEAM |
| UD19091S | AS-PL |
