S9805S - Brand new AS-PL Starter motor

Brand new AS-PL Starter motor
Price:
NZ$ 163.89 including GST

NZ$ 142.51 excluding GST


or four payments of $40.97 with
Afterpay Payment Offer Learn More

UOM:
each
Product Code:
S9805S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Purchase Qty:

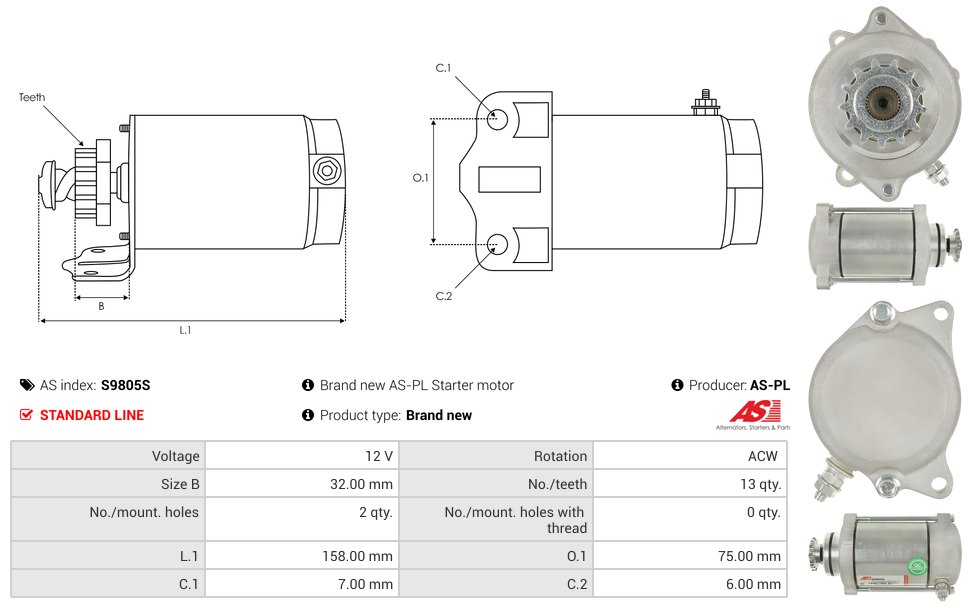

Kilowatt0.60 kW
Length (L.1)158 mm
Mount Hole Center - Center (O.1)75 mm
Mount Hole Diameter (C.1)7 mm
Mount Hole Diameter (C.2)6 mm
No./Mount holes2 qty
No./Mount holes with thread0 qty
No./Teeth13 qty
Pinion at Rest (B)32 mm
RotationACW
Unit TypeMITSUBA
Voltage12 V
Make Model Type Year
KAWASAKI KEF300 Lakota 300 A1-A6 [290cc] 01.1995-12.2000
KAWASAKI KEF300 Lakota Sport B1-B3 [290cc] 01.2001-12.2003
KAWASAKI KLF300 Bayou 300 4x4 C1-C16 [290cc] 01.1989-12.2004
KAWASAKI KLF300 Bayou 300 A1 [290cc] 01.1986-12.1986
KAWASAKI KLF300 Bayou 300 A2 [290cc] 01.1987-12.1987
KAWASAKI KLF300 Bayou 300 B1 [290cc] 01.1988-12.1988
KAWASAKI KLF300 Bayou 300 B2-B17 [290cc] 01.1989-12.2004
KAWASAKI KVF300 Prairie 300 4x4 A1-A4 [290cc] 01.1999-12.2002
KAWASAKI KVF300 Prairie 300 B1-B4 [290cc] 01.1999-12.2002
18701LESTER
18701NWAI / TRANSPO
21163-1080KAWASAKI
21163-1115KAWASAKI
21163-1141KAWASAKI
21163-1249KAWASAKI
400.079.132.200PSH
71-26-18701WILSON
KW2-0008R-1JUST PARTS
SMU0054ARROWHEAD
STU1496KRAUF
UD19087SAS-PL
