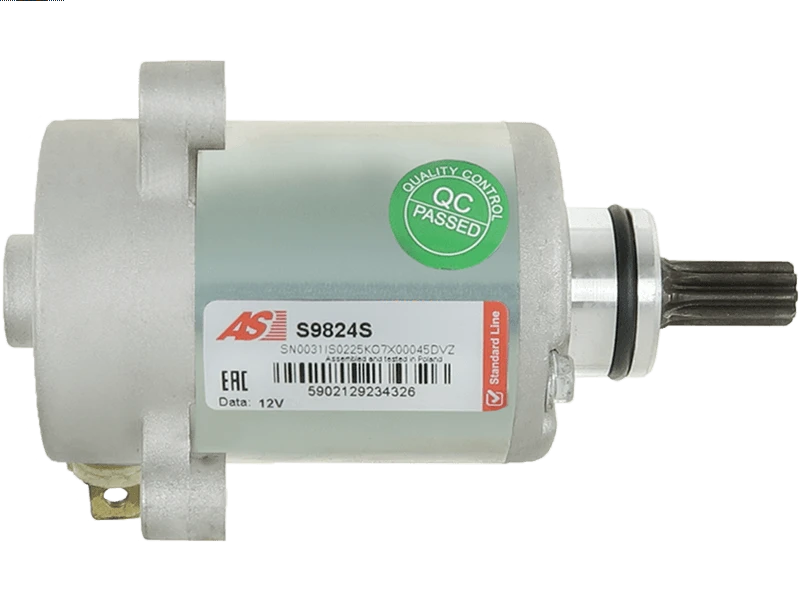

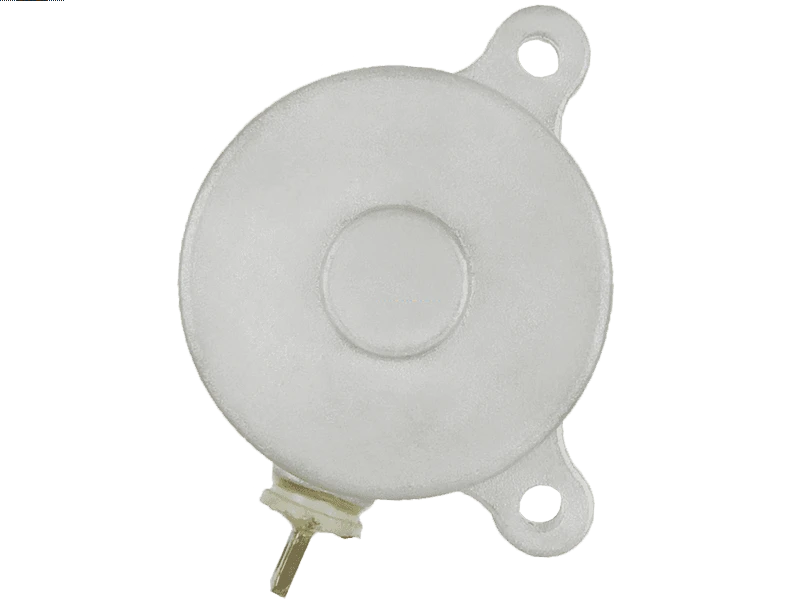

S9824S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 138 mm |
| Mount Hole Center - Center (O.1) | 66 mm |
| Mount Hole Diameter (C.1) | 6.50 mm |
| Mount Hole Diameter (C.2) | 6.50 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 43 mm |
| Rotation | CW |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SUZUKI | LT-Z90 | [90cc] | 01.2007-12.2018 |
Reference Information
| 108530 | FARCOM |
| 19031 | LESTER |
| 19031N | WAI / TRANSPO |
| 191-613 | PIC |
| 31100-33G00 | SUZUKI |
| 31100-33G01 | SUZUKI |
| 410-58039 | J&N |
| 439108 | ALANKO |
| 71-26-19031 | WILSON |
| SMU0440 | ARROWHEAD |
| ST-19698 | RCP |
| SZ2-0071N | JUST PARTS |
| UD102679S | AS-PL |
