Price:
NZ$ 153.08 including GST
NZ$ 133.11 excluding GST
or four payments of $38.27
with
Learn More
each

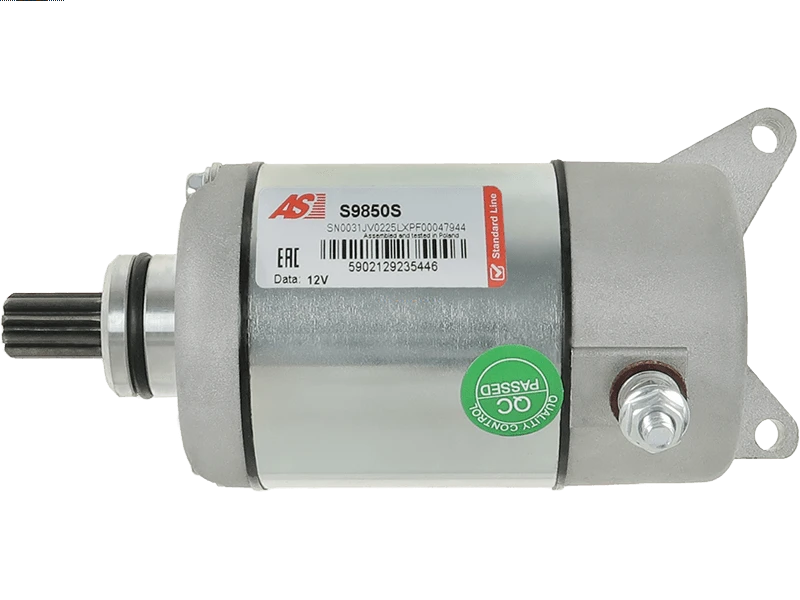

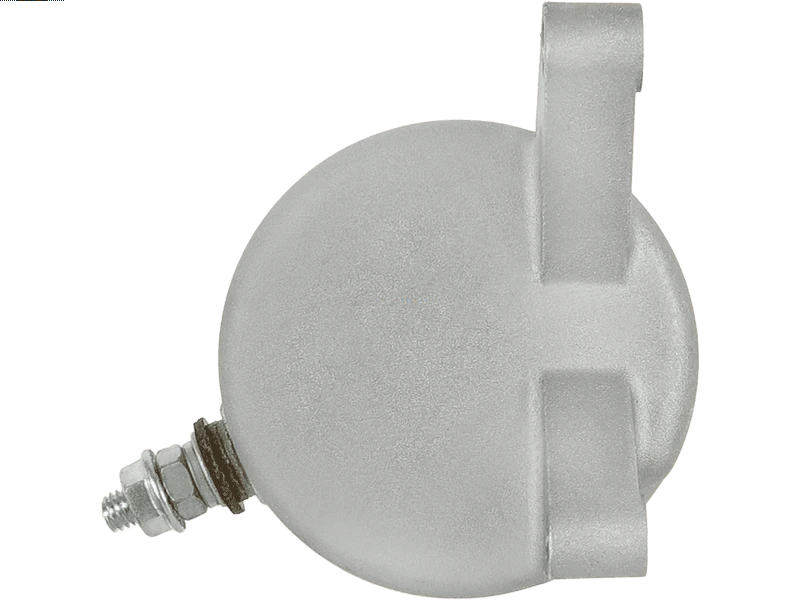

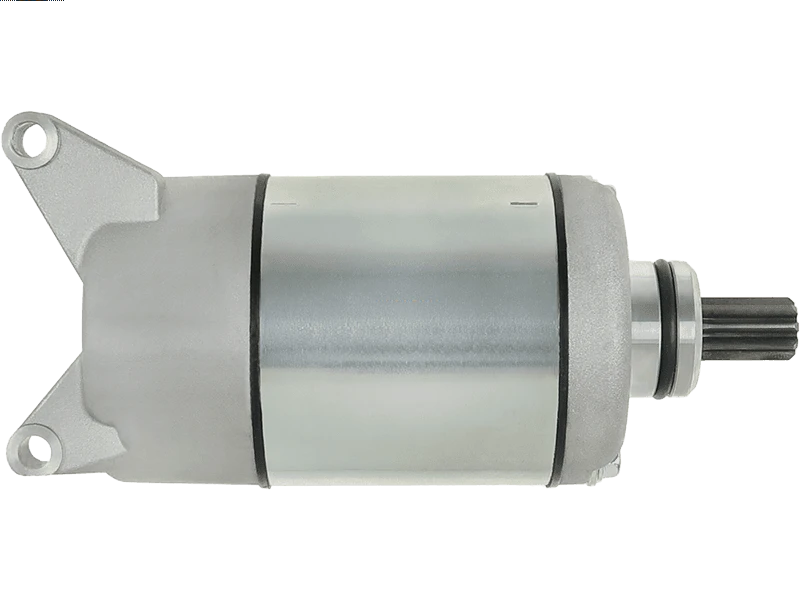

S9850S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 170 mm |
| Mount Hole Center - Center (O.1) | 65 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 39 mm |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YAMAHA | XV500 Virago | [494cc] | 01.1983-12.1984 |
| YAMAHA | XV535 Virago | [535cc] | 01.1987-12.1988 |
| YAMAHA | XV535 Virago | [535cc] | 01.1989- |
| YAMAHA | XV535 Virago | [535cc] | 01.1990-12.2000 |
| YAMAHA | XVS650AT V Star Silverado | [649cc] | 01.2002-12.2010 |
| YAMAHA | XVS650A V Star Classic | [649cc] | 01.1998-12.2010 |
| YAMAHA | XVS650 V Star Custom | [649cc] | 01.2013-12.2015 |
Reference Information
| 18751 | LESTER |
| 18751N | WAI / TRANSPO |
| 191-371 | PIC |
| 191-371A | PIC |
| 22U-81800-60-00 | YAMAHA |
| 256767 | KUHNER |
| 3JB-81800-00-00 | YAMAHA |
| 3JB-81800-01-00 | YAMAHA |
| 3JB-81890-00-00 | YAMAHA |
| 3JB-81890-01-00 | YAMAHA |
| 410-54161 | J&N |
| 4UR-81800-00-00 | YAMAHA |
| 4VR-81800-00-00 | YAMAHA |
| SM8219 | MITSUBA |
| SMU0161 | ARROWHEAD |
| UD102713S | AS-PL |
| YA2-0084R | JUST PARTS |
| YA2-9124 | JUST PARTS |
