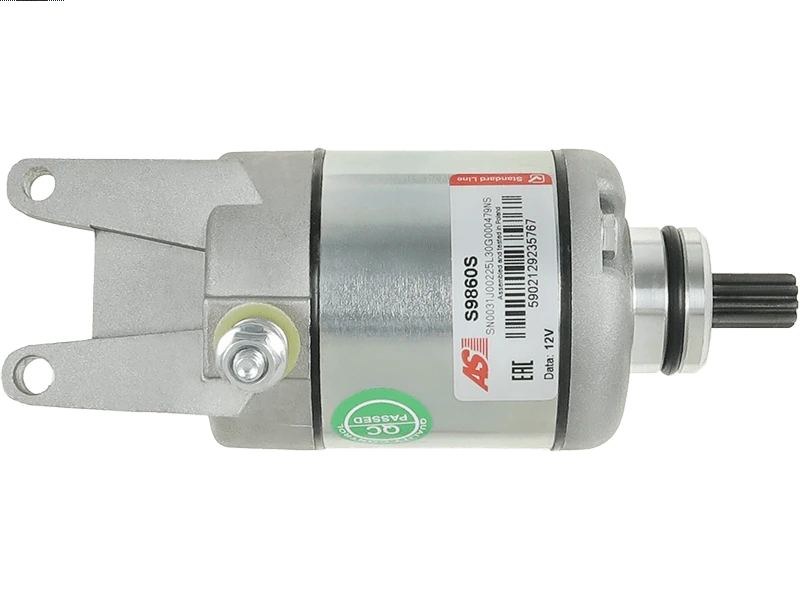

S9860S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 159 mm |
| Mount Hole Center - Center (O.1) | 37 mm |
| Mount Hole Diameter (C.1) | 6.50 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 34.50 mm |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| APRILIA | Scarabeo 250 | [244cc] | 01.2004-12.2006 |
| APRILIA | Sportcity Cube 250 | [244cc] | 05.2006- |
| PIAGGIO | MP3 250 RL | [244cc] | 01.2007-12.2013 |
| VESPA | GTS 250 | [244cc] | 06.2005-12.2012 |
| VESPA | GTS 250 ABS | [244cc] | 06.2005-12.2012 |
| VESPA | GTS 250 i.e. | [244cc] | 06.2005-12.2012 |
| VESPA | GTS 300 ABS | [278cc] | 06.2014-10.2016 |
| VESPA | GTS 300 ABS | [278cc] | 10.2016- |
| VESPA | GTS 300 Super | [278cc] | 04.2008- |
| VESPA | GTS 300 Super Sport | [278cc] | 01.2010- |
| VESPA | GTV 250 | [244cc] | 01.2007-09.2012 |
| VESPA | GTV 300 i.e | [278cc] | 01.2007-09.2012 |
Reference Information
| 1A009964R | PIAGGIO |
| 1D001434 | PIAGGIO |
| 1D001647 | PIAGGIO |
| 30933 | LESTER |
| 30933N | WAI / TRANSPO |
| 58173R | PIAGGIO |
| 58294R | PIAGGIO |
| UD102684S | AS-PL |
