Price:
NZ$ 174.87 including GST
NZ$ 152.06 excluding GST
or four payments of $43.72
with
Learn More
each

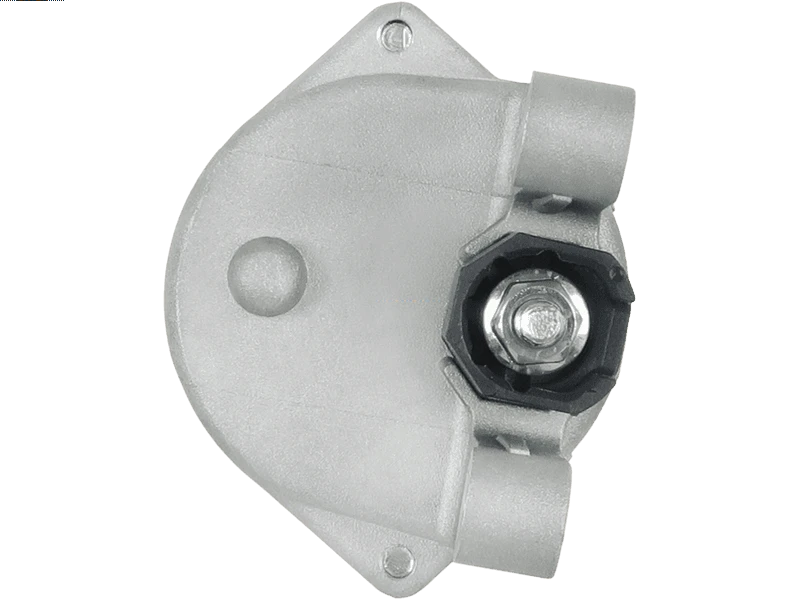

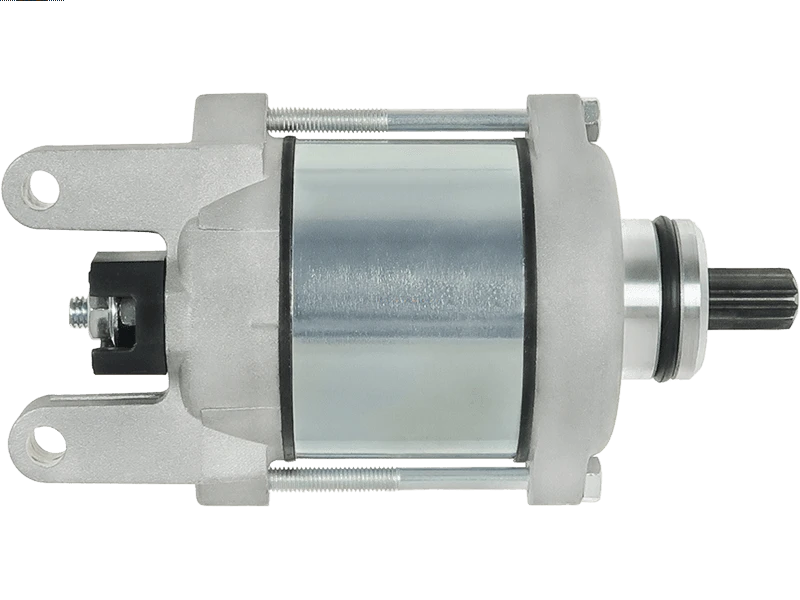

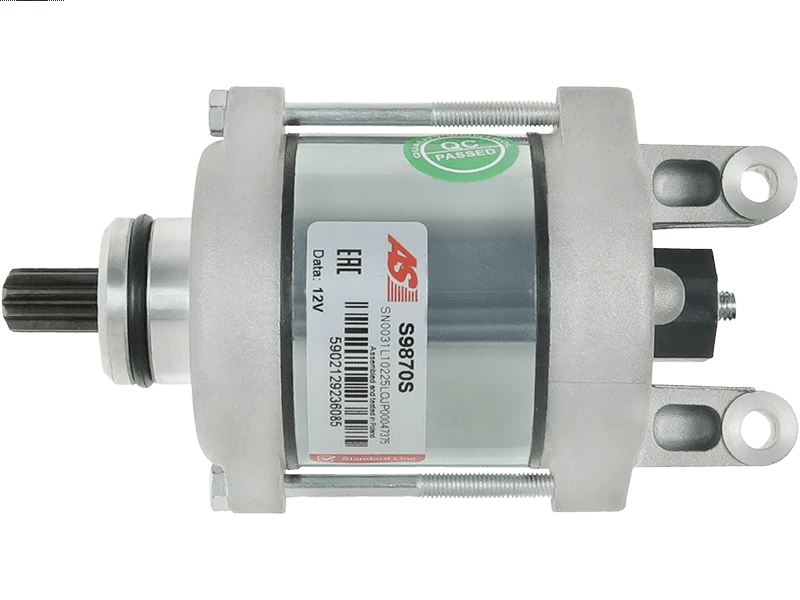

S9870S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Length (L.1) | 143 mm |
| Mount Hole Center - Center (O.1) | 45 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 35 mm |
| Rotation | CW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| KTM | 250 EXC-F | [249cc] | 01.2017-12.2020 |
| KTM | 250 EXC-F Six Days | [249cc] | 01.2017-12.2020 |
| KTM | 250 SX-F | [249cc] | 01.2016-12.2021 |
| KTM | 250 SX-F Factory Edition | [249cc] | 01.2015-12.2017 |
| KTM | 250 XC-F | [249cc] | 01.2016-12.2021 |
| KTM | 350 EXC-F | [350cc] | 01.2017-12.2021 |
| KTM | 350 EXC-F Six Days | [350cc] | 01.2017-12.2020 |
| KTM | 350 SX-F | [350cc] | 01.2016-12.2021 |
| KTM | 350 XC-F | [350cc] | 01.2016-12.2021 |
| KTM | 350 XCF-W | [350cc] | 01.2021- |
| KTM | Freeride 250F | [350cc] | 01.2018-12.2020 |
Reference Information
| 79240001000 | KTM |
| UD102744S | AS-PL |
