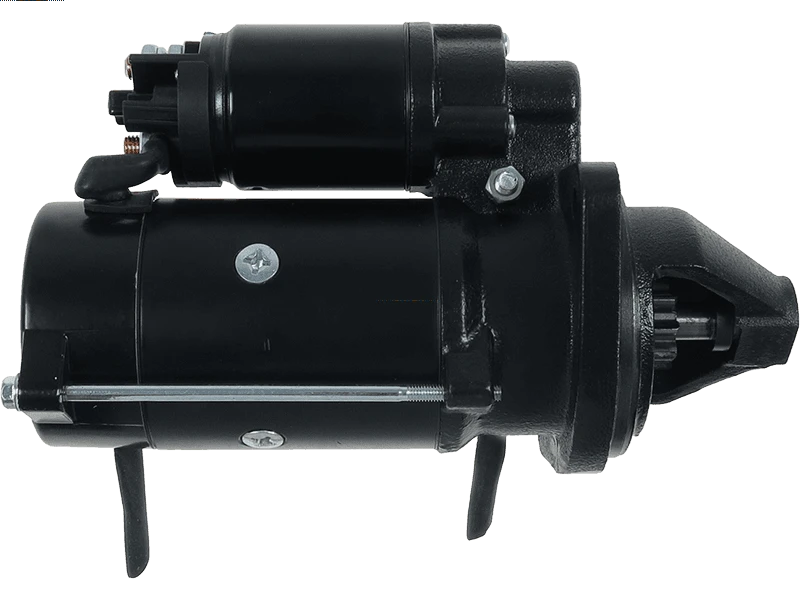

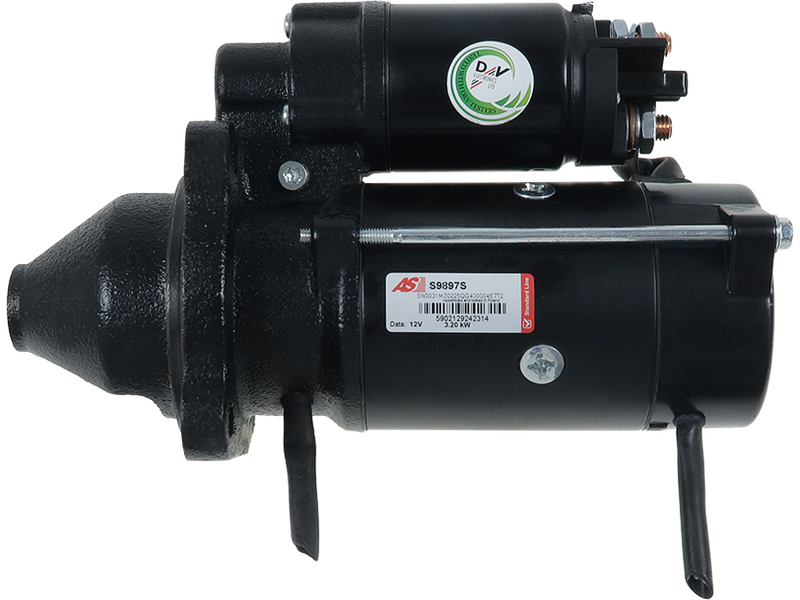

S9897S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options
Specifications
| Kilowatt | 3.20 kW |
| Length (L.1) | 277 mm |
| Mount Hole Center - Center (O.1) | 90 mm |
| Mount Hole Center - Center (O.2) | 90 mm |
| Mount Hole Center - Center (O.3) | 128 mm |
| Mount Hole Diameter (C.1) | 10.50 mm |
| Mount Hole Diameter (C.2) | 10.50 mm |
| Mount Hole Diameter (C.3) | 10.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 29 mm |
| Rotation | CW |
| Spigot Diameter (A) | 98 mm |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AGRALE | 1600D 3.0 | 10.1885- | |
| AGRALE | 1800D 3.9 | 10.1888- | |
| AGRALE | TX1600 3.0 | 09.1983-09.1985 | |
| MULLER | RT62 2.0 | 01.1981- | |
| MULLER | RT82 2.9 | 01.1981- | |
| MWM | 7200 5.9 Turbo | 06.1986- | |
| MWM | D229-3 2.9 | 01.1980- | |
| MWM | D229-4 3.9 | 01.1981- | |
| MWM | D229-6 5.9 | 01.1981- | |
| MWM | TBD229-6 5.9 | 10.1888- | |
| SLC | TD229-6 5.9 | 08.1983- | |
| VALTRA | 685 3.0 | 08.1992- | |
| VALTRA | 685 ATS | ||
| VALTRA | 685 ECO 3.0 | 07.1994- |
Reference Information
| 10021222AV | ITAB AUTOMOTIVE |
| 10021222OV | ITAB AUTOMOTIVE |
| 108409 | FARCOM |
| 11.130.823 | ISKRA / LETRIKA |
| 11.131.974 | ISKRA / LETRIKA |
| 11.132.051 | ISKRA / LETRIKA |
| 11.132.173 | ISKRA / LETRIKA |
| 20419222BN | REAL |
| 20419222OE | REAL |
| 221561 | VALTRA |
| 255291M | KUHNER |
| 3119725 | HENKEL PARTS |
| 35258240 | PRESTOLITE |
| 35259750 | PRESTOLITE |
| 520.503.093.090 | PSH |
| 520.503.093.311 | PSH |
| 6021222.0 | SANDO |
| 6021222.1 | SANDO |
| 72736045 | MAHLE |
| 8031130 | AGCO |
| 80311300 | VALTRA |
| 83645200 | VALTRA |
| 87344400 | VALTRA |
| 9000083015 | BOSCH |
| 9000083056 | BOSCH |
| 9000083069 | BOSCH |
| 9000453033 | BOSCH |
| 905720100077 | MWM |
| 905720100091 | MWM |
| AZE4222 | ISKRA / LETRIKA |
| CST21222AS | CASCO |
| CST21222GS | CASCO |
| IS0823 | ISKRA / LETRIKA |
| IS1165 | ISKRA / LETRIKA |
| IS1177 | ISKRA / LETRIKA |
| MAHMS417 | WOODAUTO |
| MS417 | MAHLE |
| NS18R-76020 | YANMAR |
| PRE35259750 | WOODAUTO |
| S104302 | BTS TURBO |
| STR79334 | ELECTROLOG |
| UD91365S | AS-PL |
| V221561 | AGCO |
| WG2045187 | WILMINK GROUP |
