Price:
NZ$ 897.37 including GST
NZ$ 780.32 excluding GST
or four payments of $224.34
with
Learn More
each
S9898S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

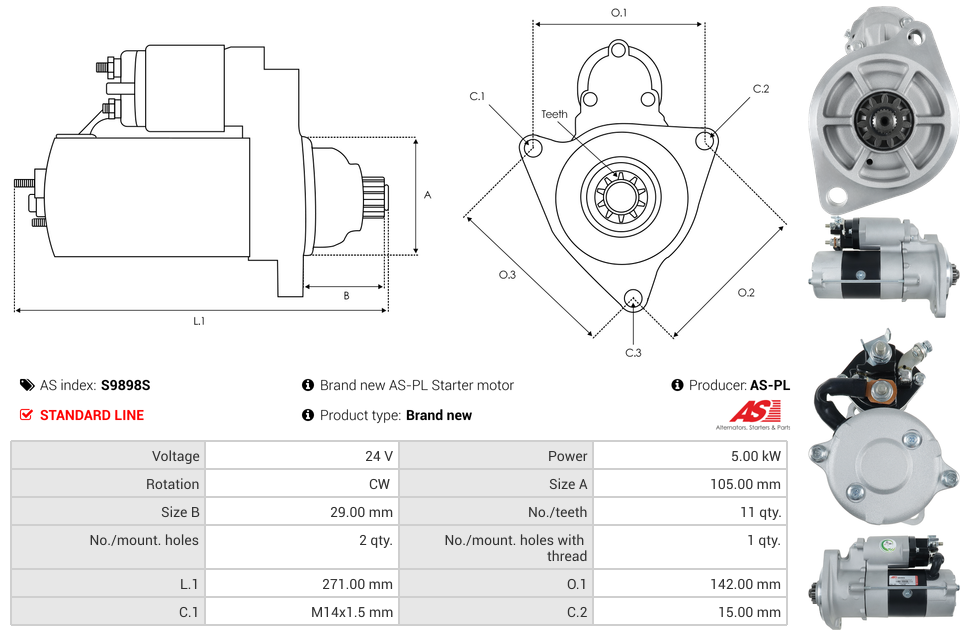

Specifications
| Kilowatt | 5 kW |
| Length (L.1) | 271 mm |
| Mount Hole Center - Center (O.1) | 142 mm |
| Mount Hole Diameter (C.1) | M14x1.5 mm |
| Mount Hole Diameter (C.2) | 15 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 29 mm |
| Rotation | CW |
| Spigot Diameter (A) | 105 mm |
| Unit Type | SAWAFUJI |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| TOYOTA | Dyna 4.0 D4D | [N04C-TQ] | 10.2006- |
| TOYOTA | Dyna 4.0 D4D | [N04C-UH] | 10.2006- |
| TOYOTA | Dyna 4.0 D4D | [N04C-UL] | 10.2006- |
| TOYOTA | Dyna 4.0 D4D | [N04C-UP] | 10.2006- |
Reference Information
| 03655020026 | SAWAFUJI |
| 03655020027 | SAWAFUJI |
| 03655020028 | SAWAFUJI |
| 03655020037 | SAWAFUJI |
| 0986JR1308 | BOSCH |
| 10037607AV | ITAB AUTOMOTIVE |
| 10037607OV | ITAB AUTOMOTIVE |
| 191.517.112.170 | PSH |
| 28100-2894A | HINO |
| 28100-78113 | HINO |
| 28100-78113A | HINO |
| 28100-78113B | HINO |
| 28100-78114 | HINO |
| 28100-E0080 | HINO |
| 3655020023 | SAWAFUJI |
| QDJ2608 | DONGFENG |
| RNL2810078113 | RNL |
| S131.367 | PSH |
| STR75614 | WOODAUTO |
| TT16630 | TESLA TECHNICS |
| UD30286S | AS-PL |
| WOOSTR75614 | WOODAUTO |
View your shopping basket or Browse other items in Starter Motors.
