SD9071S
No stock in NZ currently
No stock in NZ currently

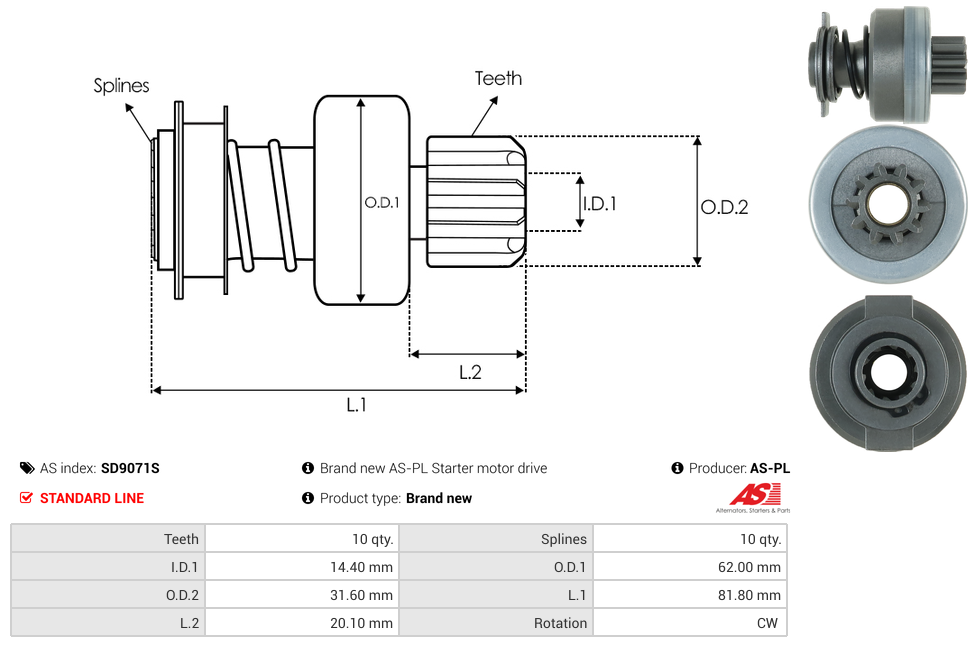

Specifications
| Inside Diameter (I.D.1) | 14.40 mm |
| Length (L.1) | 81.80 mm |
| Length (L.2) | 20.10 mm |
| No./Splines | 10 qty |
| No./Teeth | 10 qty |
| Outside Diameter (O.D.1) | 62 mm |
| Outside Diameter (O.D.2) | 31.60 mm |
| Rotation | CW |
| Unit Type | ISKRA / LETRIKA |
Reference Information
| 01-036 | STEMOT |
| 060.000.794.312 | PSH |
| 16.902.381 | ISKRA / LETRIKA |
| 16.902.792 | ISKRA / LETRIKA |
| 16.908.807 | ISKRA / LETRIKA |
| 335827 | CARGO |
| 61-23-14010 | WILSON |
| 6211 | GHIBAUDI |
| 72737584 | MAHLE |
| 72738664 | MAHLE |
| DRV7917 | ELECTROLOG |
| F032335827 | CARGO |
| LET16902381 | WOODAUTO |
| LET16908807 | WOODAUTO |
| MAHMSX332KIT | WOODAUTO |
| MAHMSX743 | WOODAUTO |
| MSX286 | MAHLE |
| MSX332KIT | MAHLE |
| MSX743 | MAHLE |
| SDI4596 | KRAUF |
| UD103880SD | AS-PL |
| WG2045699 | WILMINK GROUP |
