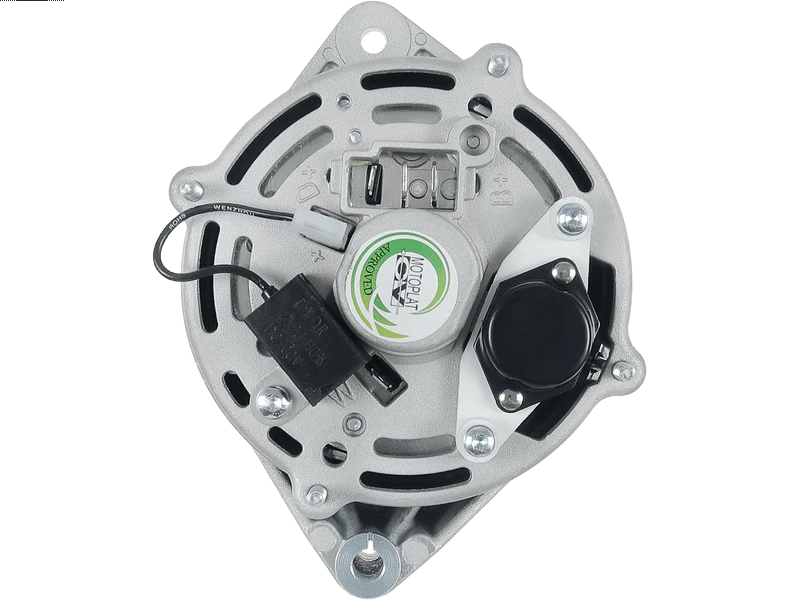

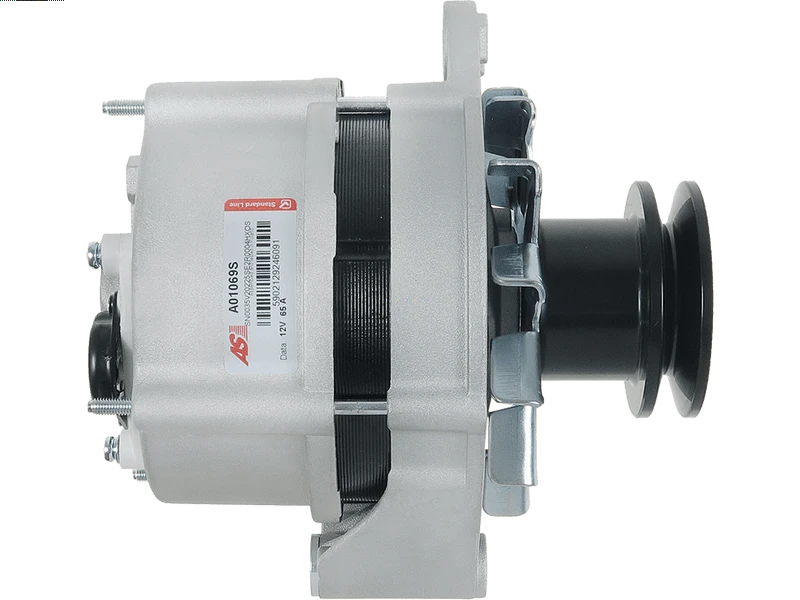

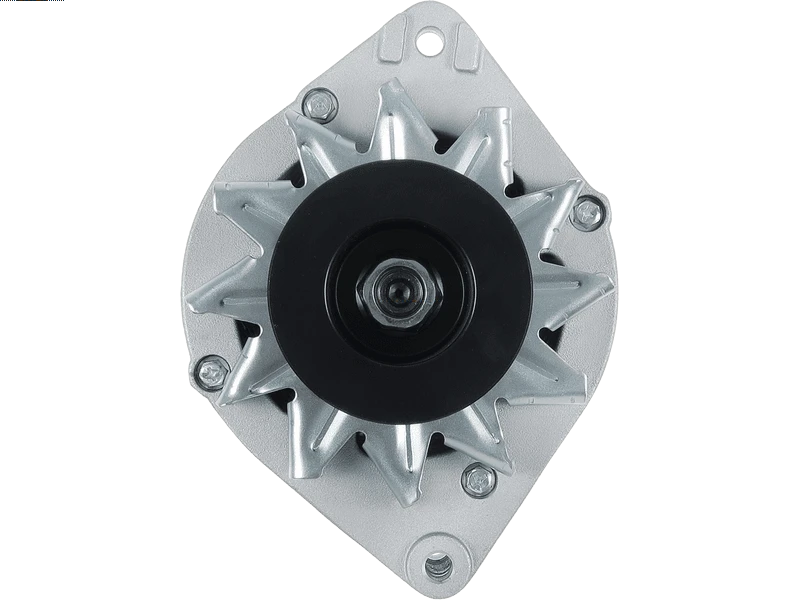

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 373.29 including GST
NZ$ 324.60 excluding GST
or four payments of $93.32
with
Learn More
each
A01069S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 65 A |
| Bottom Mounting Foot Width (B) | 56.00 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Length (L.1) | 181.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 56.00 mm |
| Plug Code | PL_3200 |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 10.00 mm |
| Pulley Outside Diameter (O.D.1) | 46.50 mm |
| Pulley Outside Diameter (O.D.2) | 73.00 mm |
| Pulley to Mount Distance (A) | 109.00 mm |
| Pulley Type | Solid |
| Unit Type | BOSCH |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | 50 1.1 | [HC] | 08.1974-07.1977 |
| AUDI | 50 1.3 | [HH] | 08.1977-07.1978 |
| VW | Caddy 1.6 D | [CR] | 08.1982-07.1992 |
| VW | Caddy 1.6 D | [JK] | 08.1982-07.1992 |
| VW | Caddy 1.6 D | [ME] | 08.1982-07.1992 |
| VW | Golf 1.1 | [FA] | 04.1974-07.1983 |
| VW | Golf 1.1 | [GG] | 04.1974-07.1983 |
| VW | Golf 1.3 | [GF] | 08.1979-07.1983 |
| VW | Golf 1.5 D | [CK] | 08.1976-07.1980 |
| VW | Golf 1.6 D | [CR] | 08.1980-07.1983 |
| VW | Golf 1.6 D | [JK] | 08.1980-07.1983 |
| VW | Golf 1.6 TD | [CY] | 03.1982-07.1983 |
| VW | Jetta 1.1 | [GG] | 08.1979-02.1984 |
| VW | Jetta 1.3 | [GF] | 08.1979-02.1984 |
| VW | Passat B1 1.3 | [FY] | 05.1973-07.1980 |
| VW | Passat B1 1.3 | [FZ] | 01.1978-07.1980 |
| VW | Passat B2 1.3 | [FY] | 08.1980-07.1983 |
| VW | Passat B2 1.3 | [FZ] | 08.1980-07.1986 |
| VW | Scirocco 1.3 | [GF] | 08.1979-07.1980 |
| VW | Scirocco 1.3 | [GF] | 08.1980-12.1983 |
