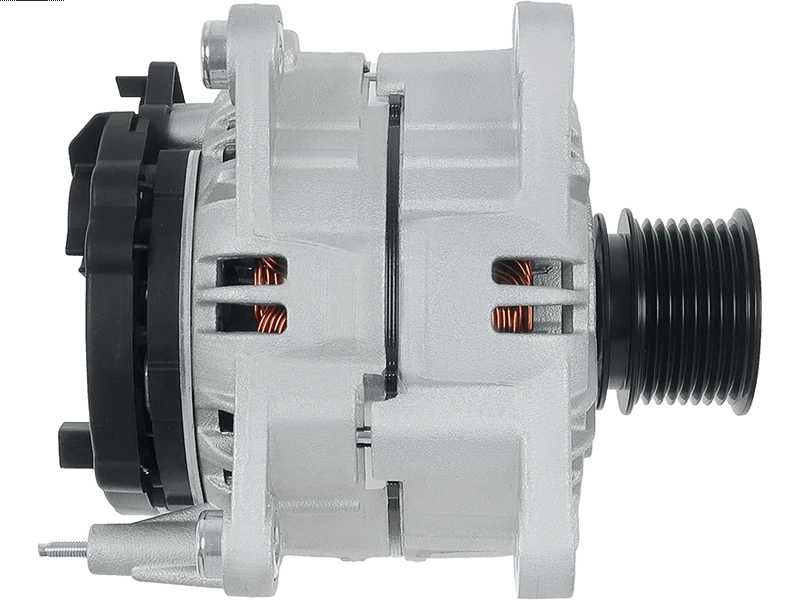

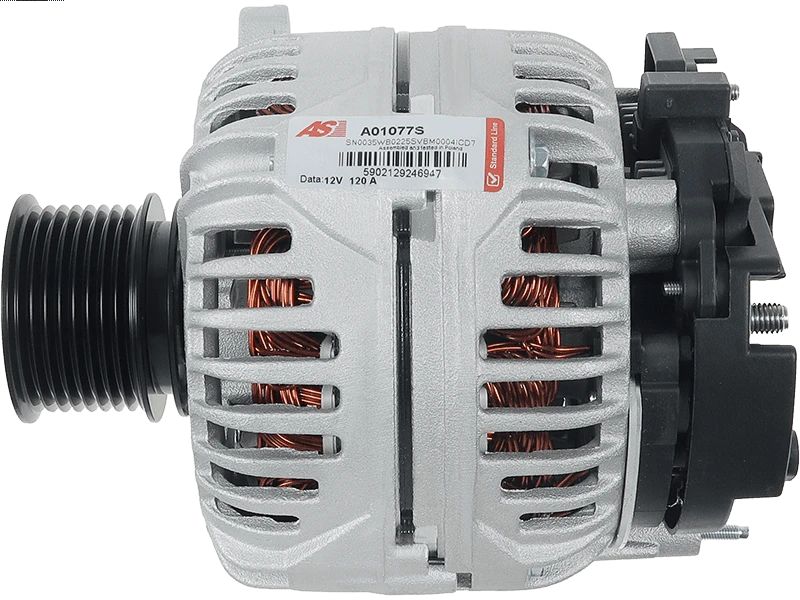

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 586.43 including GST
NZ$ 509.94 excluding GST
or four payments of $146.61
with
Learn More
A01077S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

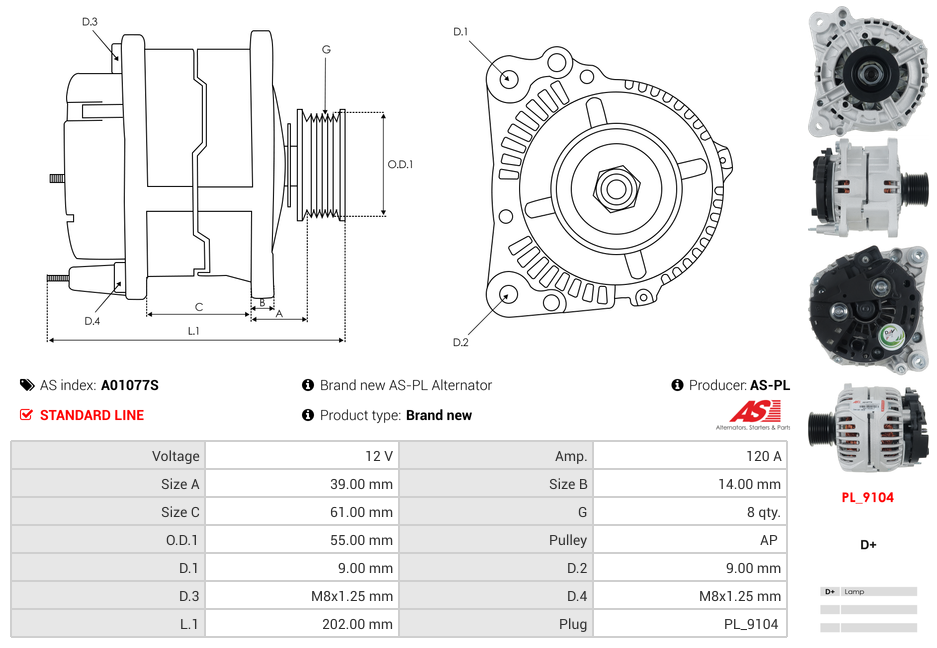

Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 14.00 mm |
| Diameter (D.1) | 9.00 mm |
| Diameter (D.2) | 9.00 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 202.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61.00 mm |
| Plug Code | PL_9104 |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.1) | 55.00 mm |
| Pulley to Mount Distance (A) | 39.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| JOHN DEERE | 310SJ | ||
| JOHN DEERE | 310SJ-TMC | ||
| JOHN DEERE | 325J | ||
| JOHN DEERE | 325K | ||
| JOHN DEERE | 325SK | ||
| JOHN DEERE | 410J-TMC | ||
| JOHN DEERE | 710J | ||
| JOHN DEERE | 710K |
