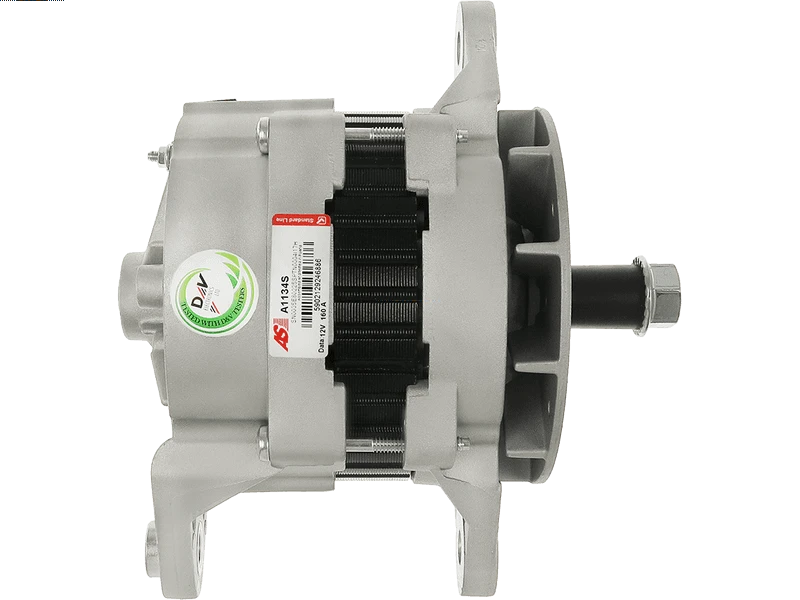

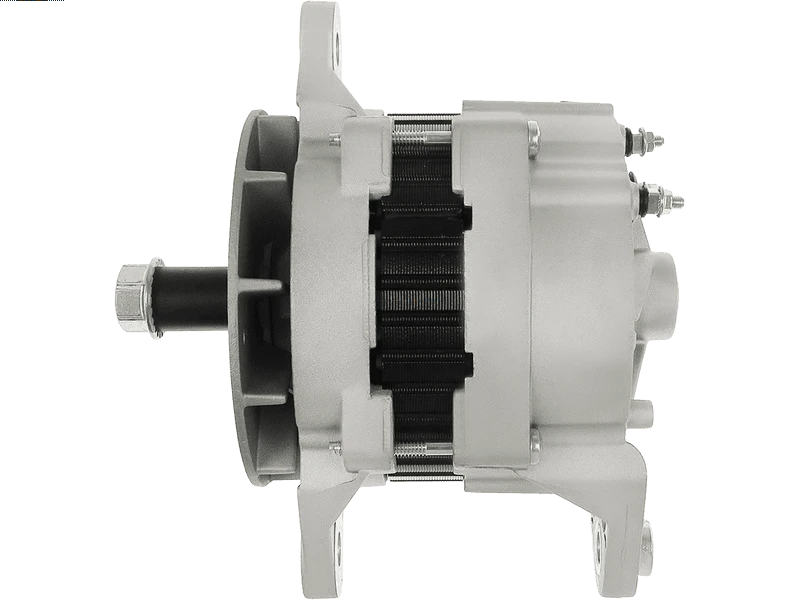

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 613.41 including GST
NZ$ 533.40 excluding GST
or four payments of $153.35
with
Learn More
A1134S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

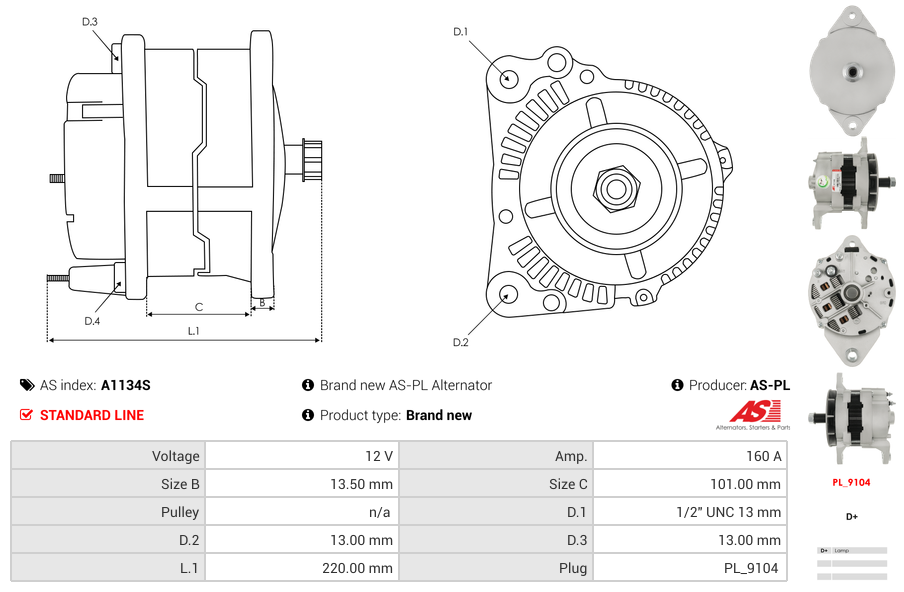

Specifications
| Amp | 160 A |
| Bottom Mounting Foot Width (B) | 13.50 mm |
| Diameter (D.1) | 1/2" UNC 13 mm |
| Diameter (D.2) | 13.00 mm |
| Diameter (D.3) | 13.00 mm |
| Length (L.1) | 220.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 101.00 mm |
| Plug Code | PL_9104 |
| Pulley Type | n/a |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BLUE BIRD | Engine 6.6 | [3116] | 01.1992-12.1996 |
| BLUE BIRD | Engine 7.2 | [3126] | 01.1992-12.1996 |
| CHEVROLET | B6 8.2 | [NT] | 01.1989-12.1993 |
| CHEVROLET | B7 6.6 | [3116] | 01.1994-12.2002 |
| CHEVROLET | B7 7.2 | [3126] | 01.1998-12.2002 |
| CHEVROLET | C5500 6.6 | [3116] | 01.1991-12.2000 |
| CHEVROLET | C5500 7.2 | [3126] | 01.1998-12.2002 |
| CHEVROLET | C60 6.6 | [3116] | 01.1991-12.2000 |
| CHEVROLET | C60 7.2 | [3126] | 01.1998-12.2002 |
| CHEVROLET | C60 8.2 | [NT] | 01.1990-12.1991 |
| CHEVROLET | C6500 6.6 | [3116] | 01.1991-12.2002 |
| CHEVROLET | C6500 7.2 | [3126] | 01.1998-12.2002 |
| CHEVROLET | C6D 8.2 | [NT] | 01.1990-12.1991 |
| CHEVROLET | C70 6.6 | [3116] | 01.1991-12.2002 |
| CHEVROLET | C70 7.2 | [3126] | 01.1998-12.2002 |
| CHEVROLET | C70 8.2 | [NT] | 01.1990-12.1991 |
| CHEVROLET | C7500 6.6 | [3116] | 01.1991-12.2002 |
| CHEVROLET | C7500 7.2 | [3126] | 01.1998-12.2002 |
| CHEVROLET | C80 6.6 | [3116] | 01.1991-12.2002 |
| CHEVROLET | C80 7.2 | [3126] | 01.1998-12.2002 |
| CHEVROLET | C8500 6.6 | [3116] | 01.1991-12.2002 |
| CHEVROLET | C8500 7.2 | [3126] | 01.1998-12.2002 |
| CHEVROLET | Engine 6.6 | [3116] | 01.1991-12.1992 |
| CHEVROLET | Engine 6.6 | [3116] | 01.1991-12.1993 |
| CHEVROLET | Engine 6.6 | [3116] | 01.1993-12.1993 |
| CHEVROLET | Engine 6.6 | [3116] | 01.1994-12.1994 |
| CHEVROLET | Engine 6.6 | [3116] | 01.1994-12.2002 |
| CHEVROLET | Engine 6.6 | [3116] | 01.1995-12.2002 |
| CHEVROLET | Engine 7.0 V8 | [427] | 01.1993-12.1993 |
| CHEVROLET | Engine 7.2 | [3126] | 01.1997-12.2002 |
| CHEVROLET | Engine 8.2 | [NT] | 01.1990-12.1991 |
| CHEVROLET | Kodiak 6.6 | [3116] | 01.1991-12.2002 |
| CHEVROLET | Kodiak 7.2 | [3126] | 01.1998-12.2002 |
| CHEVROLET | P-Series 6.6 | [3116] | 01.1991-12.2000 |
| CHEVROLET | P-Series 7.0 V8 | [427] | 01.1993-12.1998 |
| CHEVROLET | P-Series 7.2 | [3126] | 01.1996-12.2000 |
| CHEVROLET | T5500 6.6 | [3116] | 01.1997-12.1998 |
| CHEVROLET | T5500 7.2 | [3126] | 01.1997-12.2002 |
| CHEVROLET | T6500 6.6 | [3116] | 01.1997-12.1998 |
| CHEVROLET | T6500 7.2 | [3126] | 01.1997-12.2002 |
| CHEVROLET | T7500 6.6 | [3116] | 01.1997-12.1998 |
| CHEVROLET | T7500 7.2 | [3126] | 01.1997-12.2002 |
| CHEVROLET | T8500 6.6 | [3116] | 01.1997-12.1998 |
| CHEVROLET | T8500 7.2 | [3126] | 01.1997-12.2002 |
| CHEVROLET | Topkick 6.6 | [3116] | 01.1991-12.2002 |
| CHEVROLET | Topkick 7.2 | [3126] | 01.1998-12.2002 |
| GMC | B6 8.2 | [NT] | 01.1989-12.1993 |
| GMC | B7 6.6 | [3116] | 01.1994-12.2002 |
| GMC | B7 7.2 | [3126] | 01.1998-12.2002 |
| GMC | C5500 6.6 | [3116] | 01.1991-12.2000 |
| GMC | C5500 7.2 | [3126] | 01.1998-12.2002 |
| GMC | C60 6.6 | [3116] | 01.1991-12.2000 |
| GMC | C60 7.2 | [3126] | 01.1998-12.2002 |
| GMC | C60 8.2 | [NT] | 01.1990-12.1991 |
| GMC | C6500 6.6 | [3116] | 01.1991-12.2002 |
| GMC | C6500 7.2 | [3126] | 01.1998-12.2002 |
| GMC | C6D 8.2 | [NT] | 01.1990-12.1991 |
| GMC | C70 6.6 | [3116] | 01.1991-12.2002 |
| GMC | C70 7.2 | [3126] | 01.1998-12.2002 |
| GMC | C70 8.2 | [NT] | 01.1990-12.1991 |
| GMC | C7500 6.6 | [3116] | 01.1991-12.2002 |
| GMC | C7500 7.2 | [3126] | 01.1998-12.2002 |
| GMC | C80 6.6 | [3116] | 01.1991-12.2002 |
| GMC | C80 7.2 | [3126] | 01.1998-12.2002 |
| GMC | C8500 6.6 | [3116] | 01.1991-12.2002 |
| GMC | C8500 7.2 | [3126] | 01.1998-12.2002 |
| GMC | Engine 6.6 | [3116] | 01.1991-12.1992 |
| GMC | Engine 6.6 | [3116] | 01.1991-12.1993 |
| GMC | Engine 6.6 | [3116] | 01.1993-12.1993 |
| GMC | Engine 6.6 | [3116] | 01.1994-12.1994 |
| GMC | Engine 6.6 | [3116] | 01.1994-12.2002 |
| GMC | Engine 6.6 | [3116] | 01.1995-12.2002 |
| GMC | Engine 7.0 V8 | [427] | 01.1993-12.1993 |
| GMC | Engine 7.2 | [3126] | 01.1997-12.2002 |
| GMC | Engine 8.2 | [NT] | 01.1990-12.1991 |
| GMC | Kodiak 6.6 | [3116] | 01.1991-12.2002 |
| GMC | Kodiak 7.2 | [3126] | 01.1998-12.2002 |
| GMC | P-Series 6.6 | [3116] | 01.1991-12.2000 |
| GMC | P-Series 7.0 V8 | [427] | 01.1993-12.1998 |
| GMC | P-Series 7.2 | [3126] | 01.1996-12.2000 |
| GMC | T5500 6.6 | [3116] | 01.1997-12.1998 |
| GMC | T5500 7.2 | [3126] | 01.1997-12.2002 |
| GMC | T6500 6.6 | [3116] | 01.1997-12.1998 |
| GMC | T6500 7.2 | [3126] | 01.1997-12.2002 |
| GMC | T7500 6.6 | [3116] | 01.1997-12.1998 |
| GMC | T7500 7.2 | [3126] | 01.1997-12.2002 |
| GMC | T8500 6.6 | [3116] | 01.1997-12.1998 |
| GMC | T8500 7.2 | [3126] | 01.1997-12.2002 |
| GMC | Topkick 6.6 | [3116] | 01.1991-12.2002 |
| GMC | Topkick 7.2 | [3126] | 01.1998-12.2002 |
