A3822S - Brand new AS-PL Alternator

Name: Brand new AS-PL Alternator
Brand: AS-PL
SKU: A3822S
Price: 672.34 NZD
Availability: BackOrder

Brand new AS-PL Alternator

STANDARD LINE

Manufacturer:

AS-PL

Replacement For:

VALEO

Price:

NZ$ 672.34 including GST

NZ$ 584.64 excluding GST

or four payments of $168.09 with
Learn More

Product Code:

A3822S

Quantity In Stock Nationally:

No stock in NZ - Call us for possible procurement options

Availability:

This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

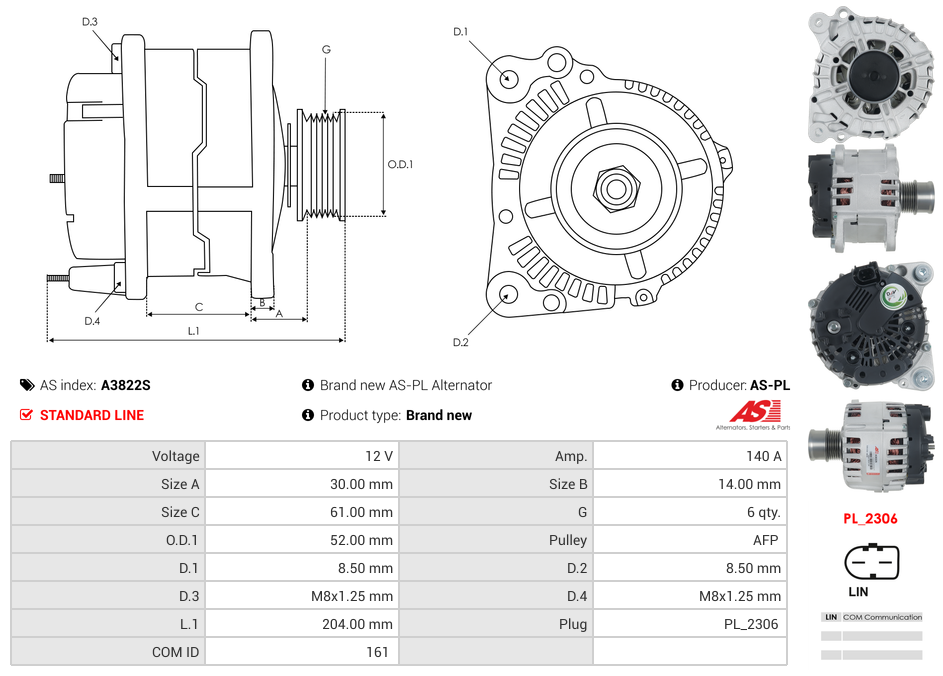

Specifications
Vehicle Applications

Amp	140 A
Bottom Mounting Foot Width (B)	14.00 mm
Diameter (D.1)	8.50 mm
Diameter (D.2)	8.50 mm
Diameter (D.3)	M8x1.25 mm
Diameter (D.4)	M8x1.25 mm
Length (L.1)	204.00 mm
Mount Inside Length or Pad Mount C-C (C)	61.00 mm
Plug Code	PL_2306
Pulley Grooves	6 qty
Pulley Outside Diameter (O.D.1)	52.00 mm
Pulley to Mount Distance (A)	30.00 mm
Pulley Type	AFP
Voltage	12 V

Make	Model	Type	Year
AUDI	A1 1.0 25 TFSi Citycarver	[DKLA]	07.2019-06.2022
AUDI	A1 1.0 25 TFSi Sportback	[DKLA]	11.2018-
AUDI	A1 1.0 25 TFSi Sportback	[DLAC]	11.2018-
AUDI	A1 1.0 25 TFSi Sportback	[DUSB]	11.2018-
AUDI	A1 1.0 30 TFSi Citycarver	[DKJA]	07.2019-06.2022
AUDI	A1 1.0 30 TFSi Citycarver	[DKRF]	07.2019-06.2022
AUDI	A1 1.0 30 TFSi Citycarver	[DLAA]	09.2020-06.2022
AUDI	A1 1.0 30 TFSi Sportback	[DKJA]	07.2018-
AUDI	A1 1.0 30 TFSi Sportback	[DKRF]	07.2018-
AUDI	A1 1.0 30 TFSi Sportback	[DLAA]	09.2020-
AUDI	A1 1.0 30 TFSi Sportback	[DUSA]	07.2018-
AUDI	A1 1.5 35 TFSi Allstreet	[DPCA]	07.2022-
AUDI	A1 1.5 35 TFSi Allstreet	[DXDB]	07.2022-
AUDI	A1 1.5 35 TFSi Citycarver	[DPCA]	07.2019-06.2022
AUDI	A1 1.5 35 TFSi Sportback	[DADA]	09.2018-
AUDI	A1 1.5 35 TFSi Sportback	[DPCA]	09.2018-
AUDI	A1 1.5 35 TFSi Sportback	[DXDB]	09.2018-
AUDI	A3 1.0 30 TFSi	[DKRF]	07.2018-10.2020
AUDI	A3 1.0 30 TFSi Sportback	[DKRF]	07.2018-10.2020
AUDI	A3 1.0 TFSi	[CHZD]	07.2016-10.2020
AUDI	A3 1.0 TFSi	[DKRF]	07.2016-10.2020
AUDI	A3 1.5 35 TFSi	[DADA]	10.2018-10.2020
AUDI	A3 1.5 35 TFSi	[DPCA]	10.2018-10.2020
AUDI	A3 1.5 35 TFSi Sportback	[DADA]	10.2018-10.2020
AUDI	A3 1.5 35 TFSi Sportback	[DPCA]	10.2018-10.2020
AUDI	A3 1.5 35 TFSi Sportback	[DPCA]	11.2019-
AUDI	Q2 1.0 30 TFSi	[DKRF]	07.2018-
AUDI	Q2 1.0 30 TFSi	[DLAA]	08.2020-
AUDI	Q2 1.0 30 TFSi	[DUSA]	07.2018-
AUDI	Q2 1.0 TFSi	[CHZJ]	10.2016-10.2020
AUDI	Q2 1.5 35 TFSi	[DADA]	07.2018-
AUDI	Q2 1.5 35 TFSi	[DPCA]	07.2018-
AUDI	Q2 1.5 35 TFSi	[DXDB]	07.2018-
AUDI	Q3 1.5 35 TFSi	[DADA]	08.2018-
AUDI	Q3 1.5 35 TFSi	[DPCA]	08.2018-
AUDI	Q3 1.5 35 TFSi	[DXDB]	08.2018-
AUDI	Q3 1.5 35 TFSi Sportback	[DPCA]	09.2019-
AUDI	Q3 1.5 35 TFSi Sportback	[DXDB]	09.2019-
SEAT	Arona 1.0 TGi	[DBYA]	11.2018-
SEAT	Arona 1.0 TSi	[CHZJ]	07.2017-
SEAT	Arona 1.0 TSi	[DKJA]	07.2017-
SEAT	Arona 1.0 TSi	[DKRF]	07.2017-
SEAT	Arona 1.0 TSi	[DLAA]	06.2020-
SEAT	Arona 1.0 TSi	[DUSA]	07.2017-
SEAT	Arona 1.0 TSi	[DXUA]	07.2017-
SEAT	Arona 1.5 TSi	[DADA]	07.2017-
SEAT	Arona 1.5 TSi	[DPCA]	07.2017-
SEAT	Arona 1.5 TSi	[DXDB]	07.2017-
SEAT	Ateca 1.0 TSi	[CHZJ]	05.2016-
SEAT	Ateca 1.0 TSi	[DKRF]	05.2016-
SEAT	Ateca 1.0 TSi	[DLAA]	09.2020-
SEAT	Ateca 1.0 TSi	[DUSA]	05.2016-
SEAT	Ibiza 1.0 TGi	[DBYA]	11.2017-
SEAT	Ibiza 1.0 TSi	[CHZJ]	01.2017-
SEAT	Ibiza 1.0 TSi	[CHZL]	01.2017-
SEAT	Ibiza 1.0 TSi	[DKJA]	01.2017-
SEAT	Ibiza 1.0 TSi	[DKLA]	01.2017-
SEAT	Ibiza 1.0 TSi	[DKRF]	01.2017-
SEAT	Ibiza 1.0 TSi	[DLAA]	06.2020-
SEAT	Ibiza 1.0 TSi	[DLAC]	01.2017-
SEAT	Ibiza 1.0 TSi	[DUSA]	01.2017-
SEAT	Ibiza 1.0 TSi	[DUSB]	01.2017-
SEAT	Leon 1.5 TSi	[DACA]	09.2018-08.2020
SEAT	Leon 1.5 TSi	[DADA]	09.2018-08.2020
SEAT	Leon 1.5 TSi	[DPBA]	09.2018-08.2020
SEAT	Leon 1.5 TSi	[DPCA]	09.2018-08.2020
SEAT	Leon ST 1.5 TSi	[DACA]	09.2018-08.2020
SEAT	Leon ST 1.5 TSi	[DADA]	09.2018-08.2020
SEAT	Leon ST 1.5 TSi	[DPBA]	09.2018-08.2020
SEAT	Leon ST 1.5 TSi	[DPCA]	09.2018-08.2020
SEAT	Tarraco 1.5 TSi ACT	[DADA]	09.2018-
SEAT	Tarraco 1.5 TSi ACT	[DPCA]	09.2018-
SEAT	Tarraco 1.5 TSi ACT	[DXDB]	09.2018-
SKODA	Kamiq 1.0 TSi	[DKLA]	07.2019-
SKODA	Kamiq 1.0 TSi	[DLAC]	07.2019-
SKODA	Kamiq 1.0 TSi	[DUSB]	07.2019-
SKODA	Kamiq 1.5 TSi	[DADA]	07.2019-
SKODA	Kamiq 1.5 TSi	[DPCA]	07.2019-
SKODA	Kamiq 1.5 TSi	[DXDB]	07.2019-
SKODA	Kodiaq 1.5 TSi	[DADA]	07.2018-
SKODA	Kodiaq 1.5 TSi	[DPCA]	07.2018-
SKODA	Kodiaq 1.5 TSi 4x4	[DADA]	07.2018-
SKODA	Kodiaq 1.5 TSi 4x4	[DPCA]	07.2018-
SKODA	Octavia 1.0 TSi	[DLAA]	06.2020-
SKODA	Octavia 1.5 TSi	[DADA]	02.2017-10.2020
SKODA	Octavia 1.5 TSi	[DPCA]	01.2020-
SKODA	Octavia 1.5 TSi	[DPCA]	02.2017-10.2020
SKODA	Octavia 1.5 TSi	[DPCA]	11.2019-
SKODA	Octavia 1.5 TSi	[DXDB]	01.2020-
SKODA	Octavia 1.5 TSi	[DXDB]	11.2019-
SKODA	Octavia 1.5 TSi G-TEC	[DHFA]	06.2020-
SKODA	Scala 1.5 TSi	[DADA]	02.2019-
SKODA	Scala 1.5 TSi	[DPCA]	02.2019-
SKODA	Scala 1.5 TSi	[DXDB]	02.2019-
SKODA	Superb 1.5 TSi	[DADA]	02.2017-
SKODA	Superb 1.5 TSi	[DADA]	03.2015-06.2024
SKODA	Superb 1.5 TSi	[DPCA]	02.2017-
SKODA	Superb 1.5 TSi	[DPCA]	03.2015-06.2024
VW	Golf Sportsvan 1.5 TSi	[DADA]	05.2017-08.2020
VW	Golf Sportsvan 1.5 TSi	[DPCA]	05.2017-08.2020
VW	Golf VII 1.0 TSi	[CHZK]	01.2017-07.2019
VW	Golf VII 1.0 TSi	[DKLB]	01.2017-07.2019
VW	Golf VII 1.5 TSi	[DADA]	04.2017-08.2020
VW	Golf VII 1.5 TSi	[DPCA]	04.2017-08.2020
VW	Golf VIII 1.0 TSi	[DLAA]	02.2020-
VW	Golf VIII 1.0 TSi	[DLAA]	08.2020-
VW	Golf VIII 1.0 TSi	[DLAB]	02.2020-
VW	Golf VIII 1.0 TSi	[DLAB]	08.2020-
VW	Golf VIII 1.5 TGi	[DHFA]	09.2020-
VW	Golf VIII 1.5 TSi	[DPBA]	07.2019-
VW	Golf VIII 1.5 TSi	[DPBA]	08.2020-
VW	Golf VIII 1.5 TSi	[DPCA]	07.2019-
VW	Golf VIII 1.5 TSi	[DPCA]	08.2020-
VW	Golf VIII 1.5 TSi	[DXDB]	07.2019-
VW	Golf VIII 1.5 TSi	[DXDB]	08.2020-
VW	Passat 1.5 TSi	[DADA]	08.2018-03.2024
VW	Passat 1.5 TSi	[DPCA]	08.2018-03.2024
VW	Polo 1.5 TSi	[DADA]	10.2018-08.2021
VW	Polo 1.5 TSi	[DPCA]	10.2018-08.2021
VW	Sharan 1.4 TSi	[CZDA]	05.2015-11.2022
VW	Sharan 1.4 TSi	[DJKA]	05.2015-11.2022
VW	Taigo 1.5 TSi	[DPCA]	09.2021-
VW	Taigo 1.5 TSi	[DXDB]	09.2021-
VW	T-Cross 1.0 TSi	[CHZL]	12.2018-
VW	T-Cross 1.0 TSi	[DKJA]	12.2018-
VW	T-Cross 1.0 TSi	[DKLA]	12.2018-
VW	T-Cross 1.0 TSi	[DKRF]	12.2018-
VW	T-Cross 1.0 TSi	[DLAC]	12.2018-
VW	T-Cross 1.0 TSi	[DUSA]	12.2018-
VW	T-Cross 1.0 TSi	[DUSB]	12.2018-
VW	T-Cross 1.5 TSi	[DADA]	01.2020-
VW	T-Cross 1.5 TSi	[DPCA]	01.2020-
VW	T-Cross 1.5 TSi	[DXDB]	01.2020-
VW	Tiguan 1.5 TSi	[DACB]	07.2018-
VW	Tiguan 1.5 TSi	[DADA]	11.2018-
VW	Tiguan 1.5 TSi	[DPBE]	07.2018-
VW	Tiguan 1.5 TSi	[DPCA]	11.2018-
VW	Tiguan 1.5 TSi	[DXDB]	11.2018-
VW	Touran 1.5 TSi	[DADA]	11.2018-
VW	Touran 1.5 TSi	[DPCA]	11.2018-
VW	Touran 1.5 TSi	[DXDB]	11.2018-
VW	T-Roc 1.0 TSi	[CHZJ]	07.2017-
VW	T-Roc 1.0 TSi	[DKRF]	07.2017-
VW	T-Roc 1.0 TSi	[DKRF]	12.2019-
VW	T-Roc 1.0 TSi	[DLAA]	09.2020-
VW	T-Roc 1.0 TSi	[DUSA]	07.2017-
VW	T-Roc 1.0 TSi	[DUSA]	12.2019-
VW	T-Roc 1.5 TSi	[DPCA]	12.2019-
VW	T-Roc 1.5 TSi	[DXDB]	12.2019-
VW	T-Roc 1.5 TSi 4motion	[DADA]	05.2018-11.2019
VW	T-Roc 1.5 TSi 4motion	[DPCA]	05.2018-11.2019
VW	Up! 1.0 GTi	[DKRA]	11.2017-11.2023
