Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DENSO
Price:
NZ$ 650.37 including GST
NZ$ 565.54 excluding GST
or four payments of $162.59
with
Learn More
each
A6896S
4
Associated Numbers
|
1042106750 |
Denso |
|---|---|
|
1042106750RJ |
RNL |
|
1042106751 |
Denso |
|
1042106752 |
Denso |
|
12317638337 |
BMW |
|
12317638338 |
BMW |
|
215921170 |
PSH |
|
22115N |
WAI |
|
7638337 |
BMW |
|
LRA04229 |
Lucas |
|
LRA4229 |
Lucas |

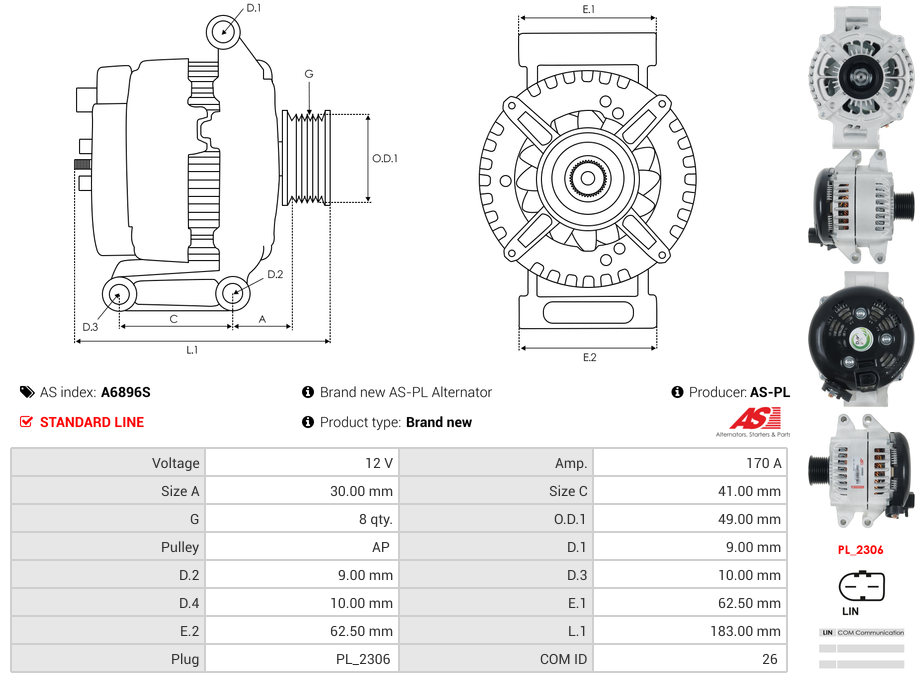

Specifications
| Amp | 170 A |
| Diameter (D.1) | 9.00 mm |
| Diameter (D.2) | 9.00 mm |
| Diameter (D.3) | 10.00 mm |
| Diameter (D.4) | 10.00 mm |
| Length (L.1) | 183.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 41.00 mm |
| Pad mount thickness (E.1) | 62.50 mm |
| Pad mount thickness (E.2) | 62.50 mm |
| Plug Code | PL_2306 |
| Pulley Grooves | 8 qty |
| Pulley Outside Diameter (O.D.1) | 49.00 mm |
| Pulley to Mount Distance (A) | 30.00 mm |
| Pulley Type | Solid |
| Unit Type | DENSO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| BMW | 335 3.0 i | (F30)[N55B30A] | 07.2013-07.2015 |
| BMW | 335 3.0 i | (F30)[N55B30A] | 11.2011-06.2013 |
| BMW | 335 3.0 i | (F30)[N55B30A] | 11.2011-07.2015 |
| BMW | 335 3.0 i | (F31)[N55B30A] | 03.2013-06.2013 |
| BMW | 335 3.0 i | (F31)[N55B30A] | 03.2013-06.2015 |
| BMW | 335 3.0 i | (F31)[N55B30A] | 07.2013-06.2015 |
| BMW | 335 3.0 i | (F80)[N55B30A] | 07.2013-07.2015 |
| BMW | 335 3.0 i | (F80)[N55B30A] | 11.2011-06.2013 |
| BMW | 335 3.0 i | (F80)[N55B30A] | 11.2011-07.2015 |
| BMW | 335 3.0 i xDrive | (F30)[N55B30A] | 07.2012-06.2013 |
| BMW | 335 3.0 i xDrive | (F30)[N55B30A] | 07.2012-07.2015 |
| BMW | 335 3.0 i xDrive | (F31)[N55B30A] | 03.2013-06.2013 |
| BMW | 335 3.0 i xDrive | (F31)[N55B30A] | 03.2013-06.2015 |
| BMW | 335 3.0 i xDrive | (F31)[N55B30A] | 07.2013-06.2015 |
| BMW | 335 3.0 i xDrive | (F80)[N55B30A] | 07.2012-06.2013 |
| BMW | 335 3.0 i xDrive | (F80)[N55B30A] | 07.2012-07.2015 |
| BMW | 335 i Gran Turismo | (F34)[N55B30A] | 03.2013-03.2014 |
| BMW | 335 i Gran Turismo | (F34)[N55B30A] | 03.2013-06.2016 |
| BMW | 335 i Gran Turismo | (F34)[N55B30A] | 04.2014-06.2016 |
| BMW | 335 i xDrive Gran Turismo | (F34)[N55B30A] | 03.2013-03.2014 |
| BMW | 335 i xDrive Gran Turismo | (F34)[N55B30A] | 04.2014-06.2016 |
| BMW | 335 i xDrive Gran Turismo | (F34)[N55B30A] | 07.2013-06.2016 |
| BMW | 435 3.0 i | (F32)[N55B30A] | 07.2013-02.2016 |
| BMW | 435 3.0 i | (F33)[N55B30A] | 11.2013-02.2016 |
| BMW | 435 3.0 i | (F82)[N55B30A] | 07.2013-02.2016 |
| BMW | 435 3.0 i | (F83)[N55B30A] | 11.2013-02.2016 |
| BMW | 435 3.0 i Gran Coupe | (F36)[N55B30A] | 03.2014-02.2016 |
| BMW | 435 3.0 i xDrive | (F32)[N55B30A] | 07.2013-02.2016 |
| BMW | 435 3.0 i xDrive | (F33)[N55B30A] | 07.2014-02.2016 |
| BMW | 435 3.0 i xDrive | (F82)[N55B30A] | 07.2013-02.2016 |
| BMW | 435 3.0 i xDrive | (F83)[N55B30A] | 07.2014-02.2016 |
| BMW | 435 3.0 i xDrive Gran Coupe | (F36)[N55B30A] | 07.2014-02.2016 |
| BMW | M 135 3.0 i | (F20)[N55B30A] | 03.2015-06.2016 |
| BMW | M 135 3.0 i | (F20)[N55B30A] | 07.2012-02.2015 |
| BMW | M 135 3.0 i | (F21)[N55B30A] | 03.2015-06.2016 |
| BMW | M 135 3.0 i | (F21)[N55B30A] | 12.2011-06.2016 |
| BMW | M 135 3.0 i xDrive | (F20)[N55B30A] | 03.2015-06.2016 |
| BMW | M 135 3.0 i xDrive | (F20)[N55B30A] | 11.2012-02.2015 |
| BMW | M 135 3.0 i xDrive | (F21)[N55B30A] | 02.2012-06.2016 |
| BMW | M 135 3.0 i xDrive | (F21)[N55B30A] | 03.2015-06.2016 |
| BMW | M23.0 | (F22)[N55B30A] | 11.2015-06.2018 |
| BMW | M23.0 | (F87)[N55B30A] | 11.2015-06.2018 |
| BMW | M 235 3.0 i | (F22)[N55B30A] | 10.2013-06.2016 |
| BMW | M 235 3.0 i | (F23)[N55B30A] | 11.2014-06.2016 |
| BMW | M 235 3.0 i | (F87)[N55B30A] | 10.2013-06.2016 |
| BMW | M 235 3.0 i xDrive | (F22)[N55B30A] | 07.2014-06.2016 |
| BMW | M 235 3.0 i xDrive | (F23)[N55B30A] | 07.2015-06.2016 |
| BMW | M 235 3.0 i xDrive | (F87)[N55B30A] | 07.2014-06.2016 |
