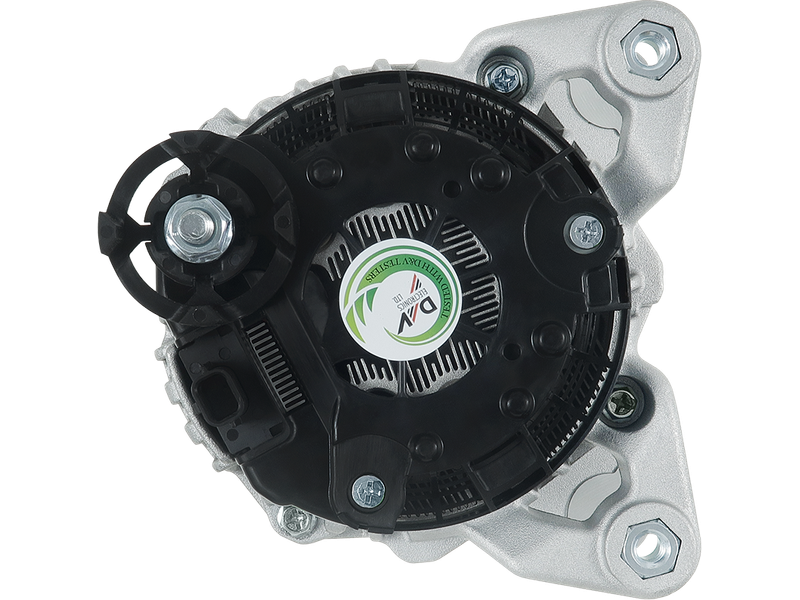

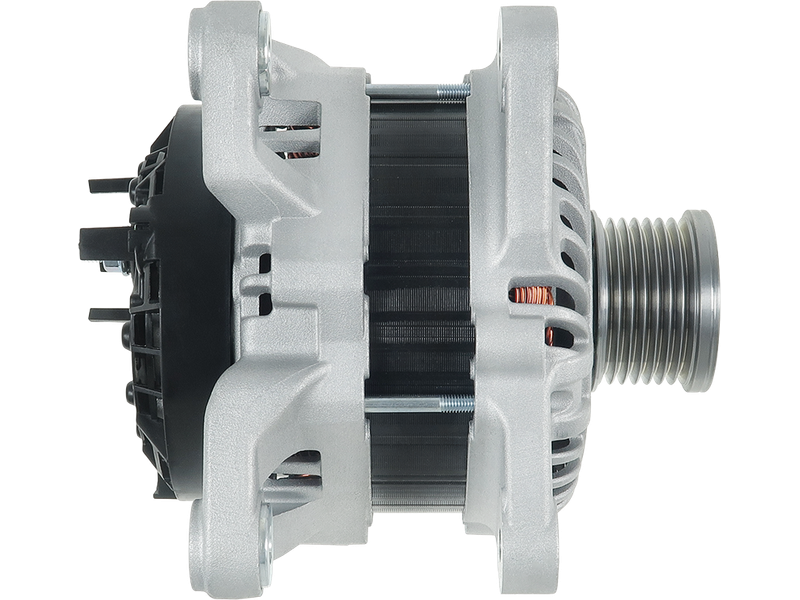

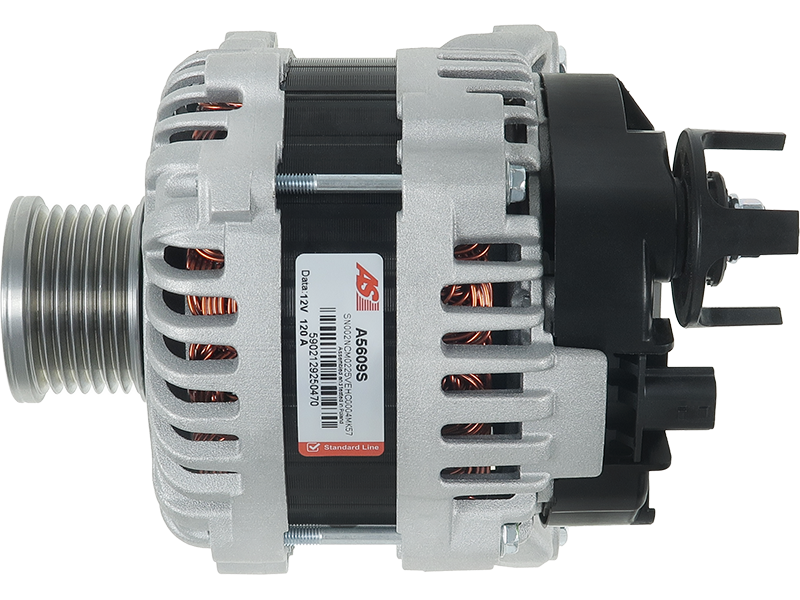

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 823.24 including GST
NZ$ 715.86 excluding GST
or four payments of $205.81
with
Learn More
A5609S
No stock in NZ - Call us for possible procurement options
No stock in NZ - Call us for possible procurement options

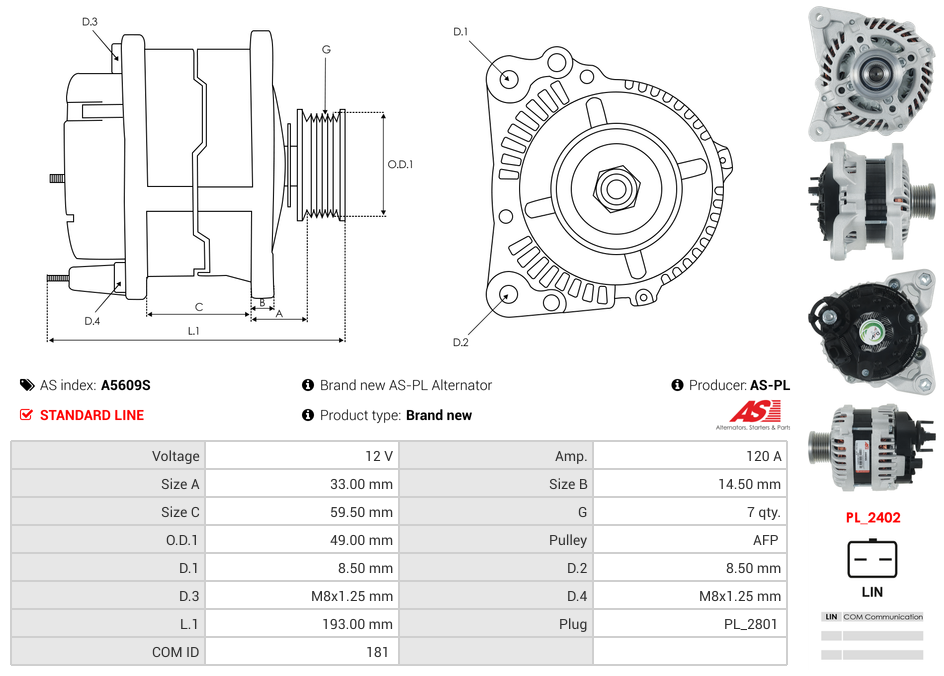

Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 14.50 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 193.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 59.50 mm |
| Plug Code | PL_2801 |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 49.00 mm |
| Pulley to Mount Distance (A) | 33.00 mm |
| Pulley Type | Clutch |
| Voltage | 12 V |
