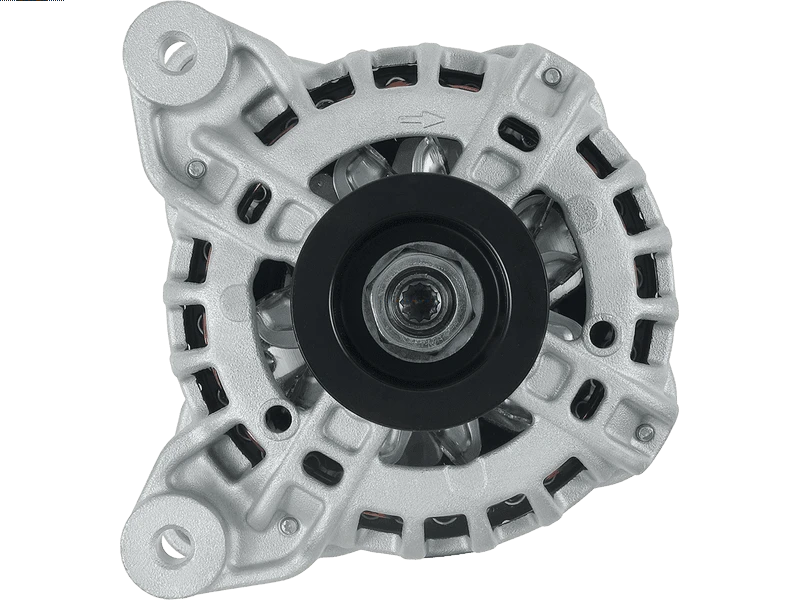

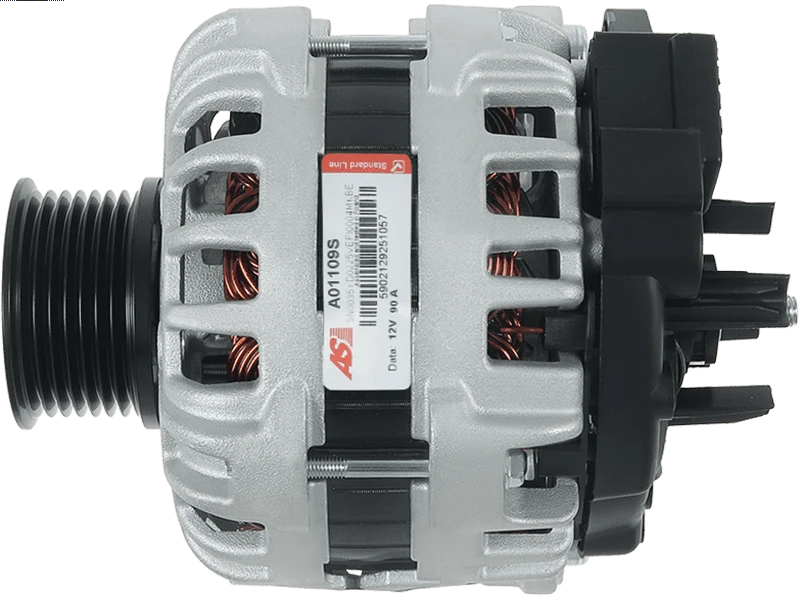

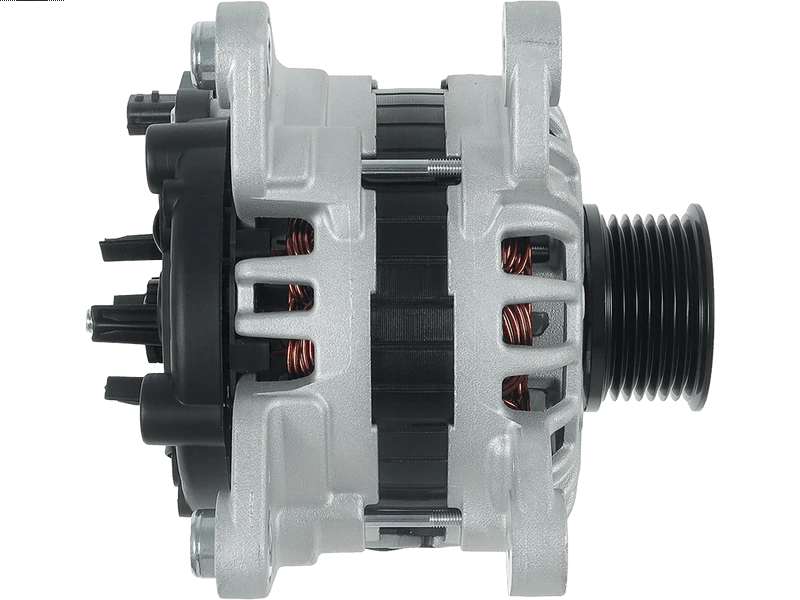

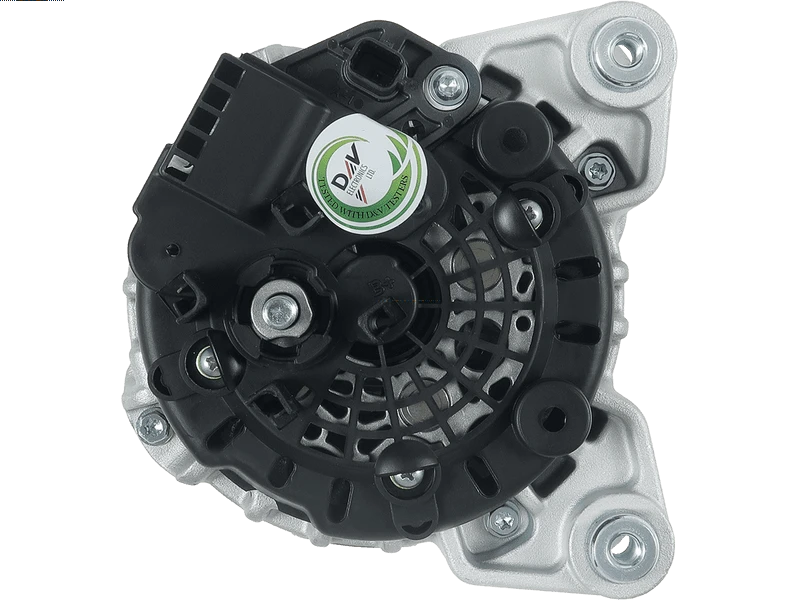

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 617.69 including GST
NZ$ 537.12 excluding GST
or four payments of $154.42
with
Learn More
A01109S
No stock in NZ - Call us for possible procurement options
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

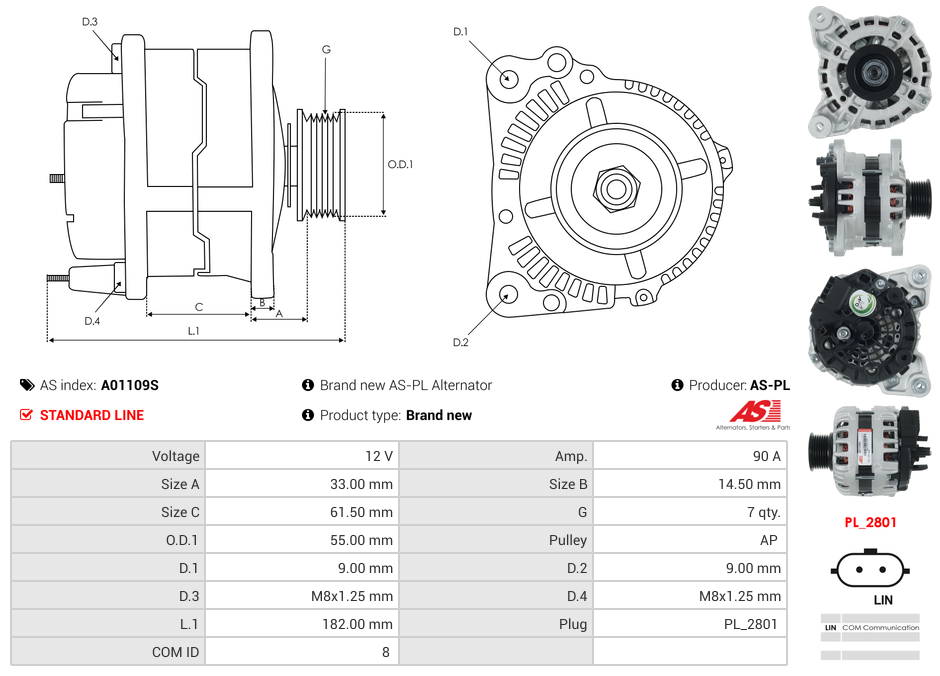

Specifications
| Amp | 90 A |
| Bottom Mounting Foot Width (B) | 14.50 mm |
| Diameter (D.1) | 9.00 mm |
| Diameter (D.2) | 9.00 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8x1.25 mm |
| Length (L.1) | 182.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61.50 mm |
| Plug Code | PL_2801 |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 55.00 mm |
| Pulley to Mount Distance (A) | 33.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
