Brand new +Plus Line Pro Alternator
+PLUS LINE PRO
ASG-NZ
VALEO
Price:
NZ$ 886.60 including GST
NZ$ 770.96 excluding GST
or four payments of $221.65
with
Learn More
each
A3633S
AAM-S6150
2
Information
FG23S026
Associated Numbers
|
059903016S |
Volkswagen AG |
|---|---|
|
059903016SX |
Volkswagen AG |
|
11825N |
WAI |
|
11825NOE |
WAI |
|
14201439 |
AES |
|
305567220 |
PSH |
|
439893 |
Valeo |
|
440270 |
Valeo |
|
59903016S |
Volkswagen AG |
|
59903016SX |
Volkswagen AG |
|
606618 |
Valeo |
|
95560312000 |
Porsche |
|
ALT14360 |
Wood Auto |
|
DRA1038 |
Delco Remy |
|
FG23S026 |
Valeo |
|
FGN23S026 |
Valeo |
|
LRA03955 |
Lucas |
|
LRA3955 |
Lucas |
|
RNLFG23S026 |
RNL |
|
VAL439893 |
Wood Auto |
|
WOOALT14360 |
Wood Auto |
Specifications
FITTED WITH OEM REGULATOR
| Amp | 230 A |
| Bottom Mounting Foot Width (B) | 14 mm |
| Diameter (D.1) | 8 mm |
| Diameter (D.2) | 8 mm |
| Diameter (D.3) | M8x1.25 mm |
| Diameter (D.4) | M8 mm |
| Length (L.1) | 177 mm |
| Mount Inside Length or Pad Mount C-C (C) | 61 mm |
| OEM Product | No |

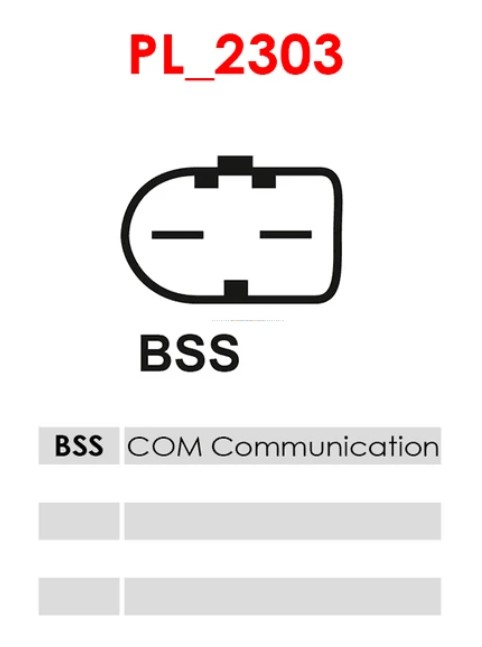

| Plug Code | PL_2303 |
| Product Line | +Plus Line Pro |
| Product Type | Brand new |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 57 mm |
| Pulley to Mount Distance (A) | 31 mm |
| Pulley Type | Solid |
| Unit Type | VALEO |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| AUDI | |||
| PORSCHE |
Reference Information
| 03H903023D | VW |
| 03H903023DX | VW |
| 059903016S | VW |
| 059903016SV | VW |
| 059903016SX | VW |
| 11825N-OE | WAI / TRANSPO |
| 2015433.1 | SANDO |
| 20179334OE | REAL |
| 209273 | ERA |
| 2606618 | VALEO |
| 28-7565 | ELSTOCK |
| 305.567.220.004 | PSH |
| 305.567.220.500 | PSH |
| 305.587.220.500 | PSH |
| 3H903023D | VW |
| 3H903023DX | VW |
| 40402 | CEVAM |
| 439685 | VALEO |
| 439893 | VALEO |
| 440270 | VALEO |
| 442502 | LOGISTIK |
| 55151201 | MEAT & DORIA |
| 553387RIV | KUHNER |
| 57226 | EAI |
| 59903016S | VW |
| 59903016SX | VW |
| 89215355 | POWERMAX |
| 8EL012241-181 | HELLA |
| 9215355 | POWERMAX |
| 95560312000 | PORSCHE |
| A12VA0848AS | SIDAT |
| A132.094 | PSH |
| A147.847 | PSH |
| A148.071 | PSH |
| AEK3955 | AUTOELECTRO |
| ALT00430 | ELECTROLOG |
| ALT00431 | ELECTROLOG |
| ALT14360 | WOODAUTO |
| ALTF108 | 3EFFE |
| ALV3624 | KRAUF |
| CAL15433GS | CASCO |
| DA2148 | DELCO |
| DRA1038 | DELCO |
| FG23S026 | VALEO |
| LRA03955 | LUCAS |
| LRA3955 | LUCAS |
| PRAF108 | 3EFFE |
| UD19567A | AS-PL |
| VAL439893 | WOODAUTO |
| VALFG23S026 | WOODAUTO |
