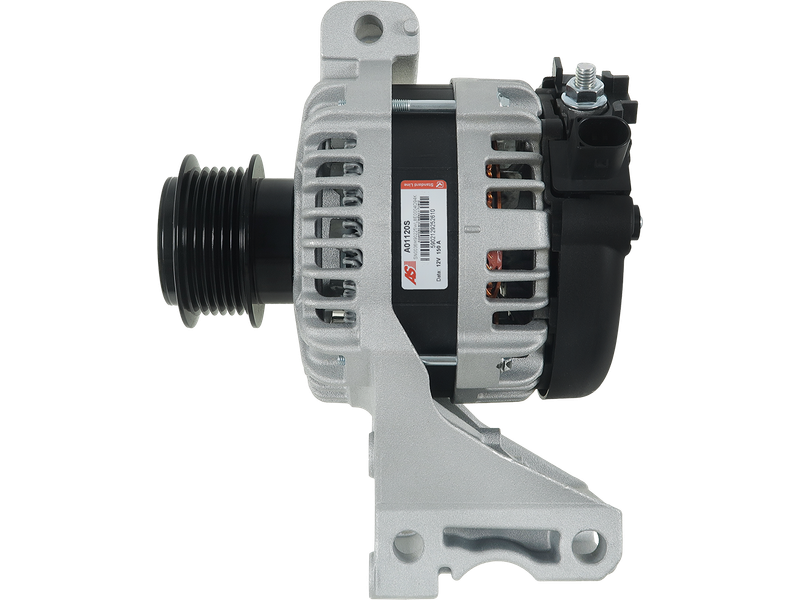

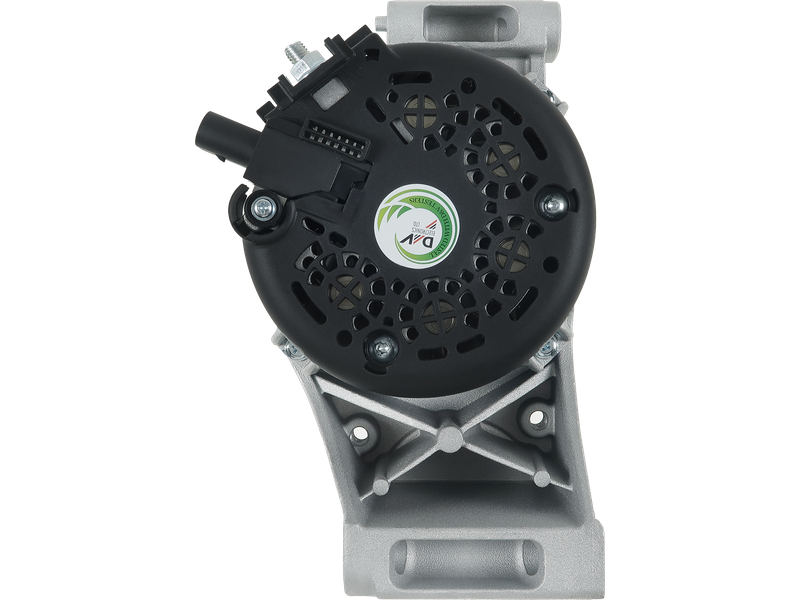

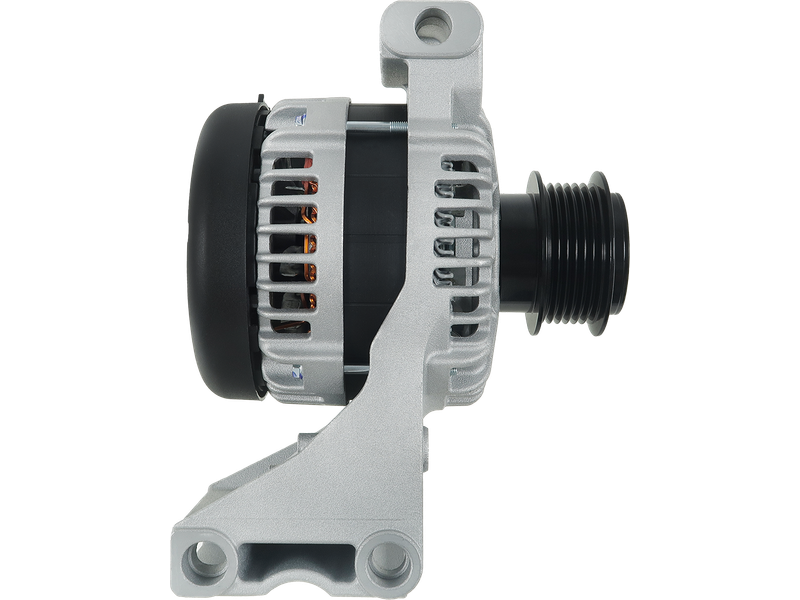

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 675.34 including GST
NZ$ 587.25 excluding GST
or four payments of $168.84
with
Learn More
each
A01120S
No stock in NZ currently
No stock in NZ currently

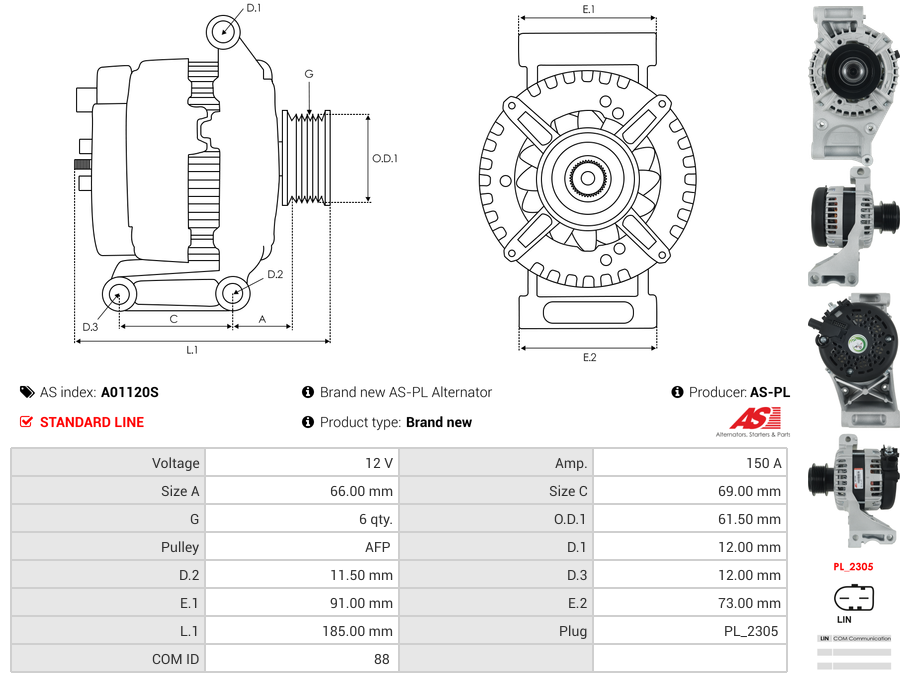

Specifications
| Amp | 150 A |
| Diameter (D.1) | 12.00 mm |
| Diameter (D.2) | 11.50 mm |
| Diameter (D.3) | 12.00 mm |
| Length (L.1) | 185.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 69.00 mm |
| Pad mount thickness (E.1) | 91.00 mm |
| Pad mount thickness (E.2) | 73.00 mm |
| Plug Code | PL_2305 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 61.50 mm |
| Pulley to Mount Distance (A) | 66.00 mm |
| Pulley Type | Clutch |
| Unit Type | BOSCH |
| Voltage | 12 V |
