Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 423.66 including GST
NZ$ 368.40 excluding GST
or four payments of $105.92
with
Learn More
S5069SR
No stock in NZ currently
No stock in NZ currently

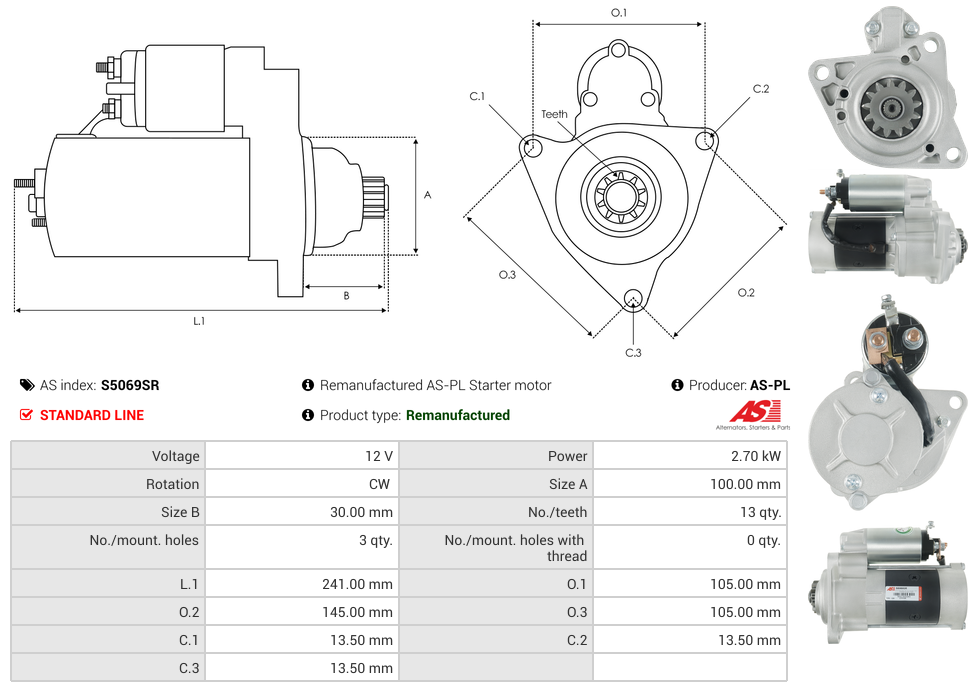

Specifications
| Kilowatt | 2.70 kW |
| Length (L.1) | 241.00 mm |
| Mount Hole Center - Center (O.1) | 105.00 mm |
| Mount Hole Center - Center (O.2) | 145.00 mm |
| Mount Hole Center - Center (O.3) | 105.00 mm |
| Mount Hole Diameter (C.1) | 13.50 mm |
| Mount Hole Diameter (C.2) | 13.50 mm |
| Mount Hole Diameter (C.3) | 13.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 13 qty |
| Pinion at Rest (B) | 30.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 100.00 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
