Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 381.32 including GST
NZ$ 331.58 excluding GST
or four payments of $95.33
with
Learn More
UOM:
each
Product Code:
S5528S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

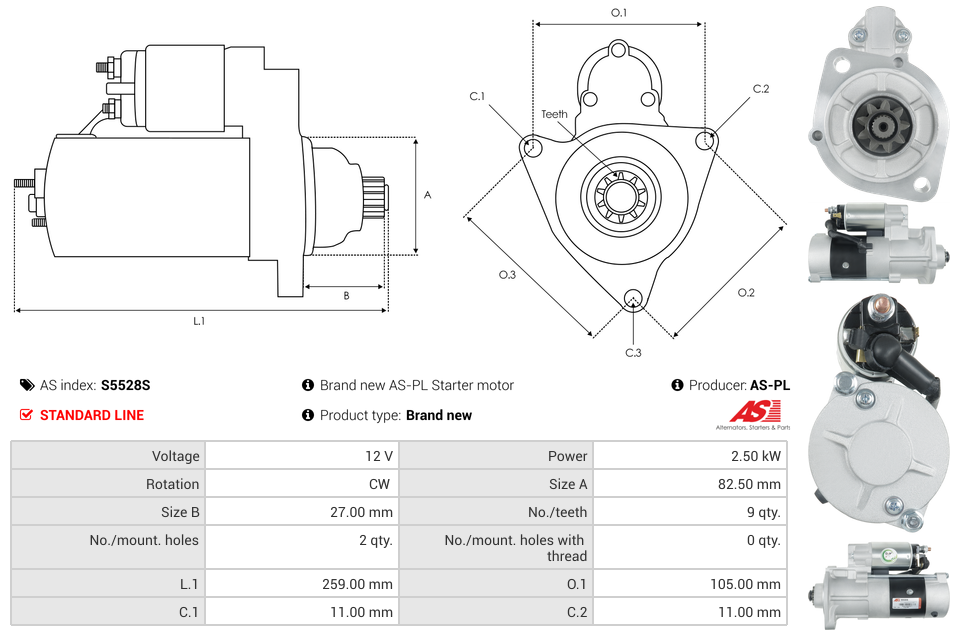

Specifications
| Kilowatt | 2.50 kW |
| Length (L.1) | 259.00 mm |
| Mount Hole Center - Center (O.1) | 105.00 mm |
| Mount Hole Diameter (C.1) | 11.00 mm |
| Mount Hole Diameter (C.2) | 11.00 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 27.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 82.50 mm |
| Unit Type | MITSUBISHI |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| HOLDER | Engine 2.6 | V2607 | 01.2012- |
| KUBOTA | M6800 3.3 | V3300 | 01.2001-12.2005 |
| KUBOTA | M8200 | V330082HPDSL | 01.1998-01.2005 |
| KUBOTA | M8200 3.3 | V3300 | 01.1998-12.2005 |
| KUBOTA | M8200CCS | V330082HPDSL | 01.1998-01.2005 |
| KUBOTA | M8200DTC | V330082HPDSL | 01.1999-01.2005 |
| KUBOTA | M8200DT-F | V330082HPDSL | 01.1998-01.2005 |
| KUBOTA | M8200F | V330082HPDSL | 01.1998-01.2004 |
| KUBOTA | M8200HDC | V330082HPDSL | 01.1998-01.2005 |
| KUBOTA | M8200HD-F | V330082HPDSL | 01.1998-01.2005 |
| KUBOTA | M8200SDNB | V330082HPDSL | 01.2000-01.2005 |
| KUBOTA | M8200SDNBC | V330082HPDSL | 01.2000-01.2005 |
| KUBOTA | M8200SDNBF | V330082HPDSL | 01.2000-01.2005 |
| KUBOTA | M9000 | V330090HPDSL | 01.1998-01.2005 |
| KUBOTA | M9000 3.3 | V3300 | 01.1999-12.2009 |
| KUBOTA | M9000C | V330090HPDSL | 01.1999-01.2005 |
| KUBOTA | M9000DTC | V330090HPDSL | 01.1999-01.2005 |
| KUBOTA | M9000DTCCS | V330090HPDSL | 01.2000-01.2005 |
| KUBOTA | M9000DT-F | V330090HPDSL | 01.1998-01.2005 |
| KUBOTA | M9000DTL | V330090HPDSL | 01.1999-01.2005 |
| KUBOTA | M9000DTL-F | V330090HPDSL | 01.1999-01.2005 |
| KUBOTA | M9000DTM | V330090HPDSL | 01.2000-01.2005 |
| KUBOTA | M9000DTMC | V330090HPDSL | 01.2001-01.2005 |
| KUBOTA | M9000DTMCW | V330090HPDSL | 01.2001-01.2005 |
| KUBOTA | M9000DTMW | V330090HPDSL | 01.2001-01.2005 |
| KUBOTA | M9000F | V330090HPDSL | 01.1998-01.2005 |
| KUBOTA | M9000HDC | V330090HPDSL | 01.2002-01.2005 |
| KUBOTA | M9000HD-F | V330090HPDSL | 01.2002-01.2005 |
| KUBOTA | Series-M 6040 | V3307-DI-TE3 | 01.2012- |
| KUBOTA | Series-M 7040 | V3307-DI-TE3 | 01.2012- |
| THOMAS BUILT BUSES | HD225 3.3 | V3300 | - |
| THOMAS BUILT BUSES | HD245 3.3 | V3300 | - |
