Brand new AS-PL Alternator
STANDARD LINE
AS-PL
ISKRA / LETRIKA
Price:
NZ$ 868.57 including GST
NZ$ 755.28 excluding GST
or four payments of $217.14
with
Learn More
each
S9919S
No stock in NZ currently
No stock in NZ currently

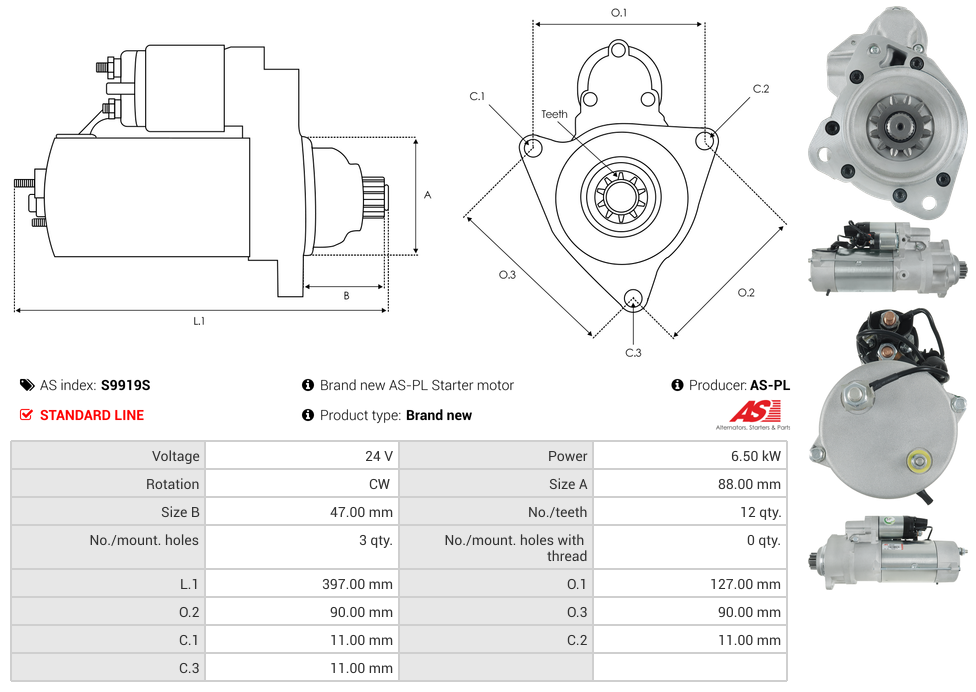

Specifications
| Kilowatt | 6.50 kW |
| Length (L.1) | 397.00 mm |
| Mount Hole Center - Center (O.1) | 127.00 mm |
| Mount Hole Center - Center (O.2) | 90.00 mm |
| Mount Hole Center - Center (O.3) | 90.00 mm |
| Mount Hole Diameter (C.1) | 11.00 mm |
| Mount Hole Diameter (C.2) | 11.00 mm |
| Mount Hole Diameter (C.3) | 11.00 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 12 qty |
| Pinion at Rest (B) | 47.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 88.00 mm |
| Unit Type | ISKRA / LETRIKA |
| Voltage | 24 V |
