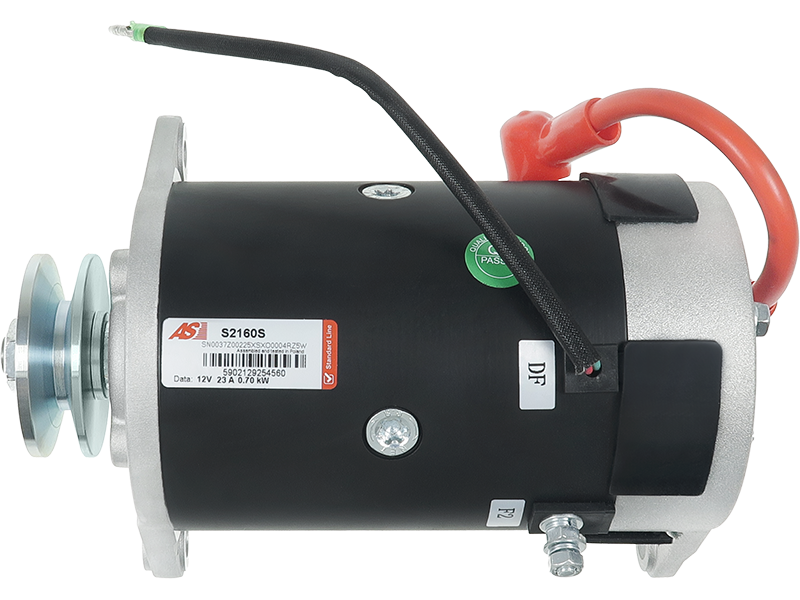

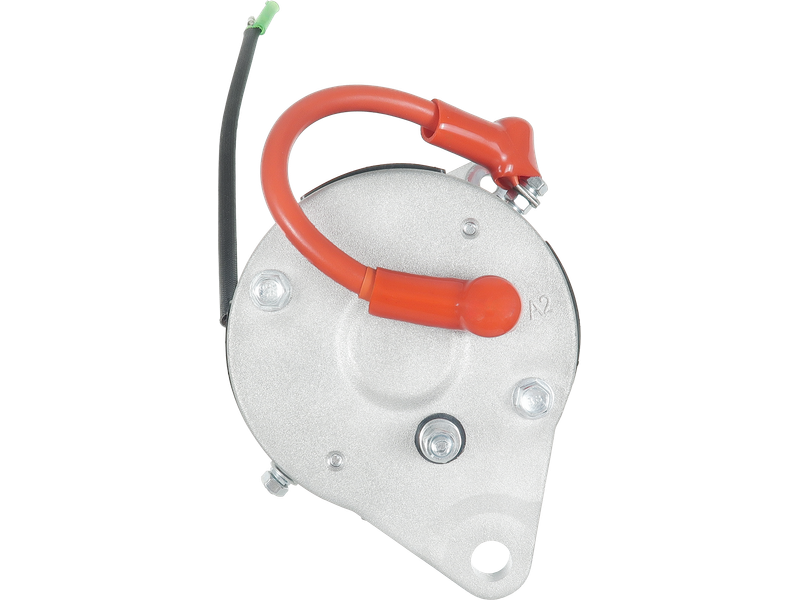

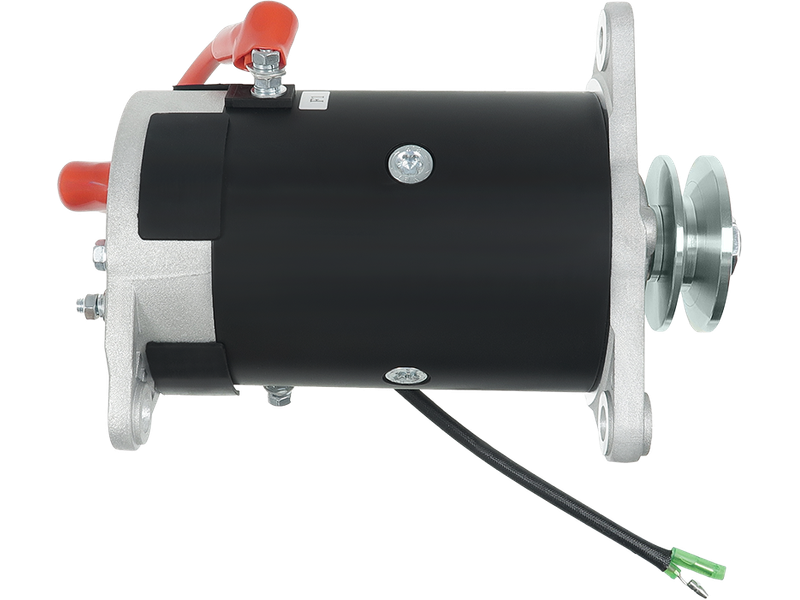

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
HITACHI
Price:
NZ$ 463.77 including GST
NZ$ 403.28 excluding GST
or four payments of $115.94
with
Learn More
UOM:
each
Product Code:
S2160S
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Specifications
| Amp | 23 A |
| Diameter (D.1) | 12.00 mm |
| Diameter (D.1) | 8.50 mm |
| Diameter (D.3) | 13.50 mm |
| Front Mount Thickness | 15.00 mm |
| Kilowatt | 0.70 kW |
| Kilowatt | 0.70 kW |
| Length (L.1) | 248.00 mm |
| Length (L.1) | 227.00 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 12.00 mm |
| Mount Hole Diameter (C.3) | 13.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 158.00 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| Outside Diameter (O.D.1) | 36.00 mm |
| Pulley Grooves | 2 qty |
| Pulley to Mount Distance (A) | 35.00 mm |
| Pulley Type | AP |
| Rotation | CW/ACW |
| Unit Type | HITACHI |
| Voltage | 12 V |
| Voltage | 12 V |
