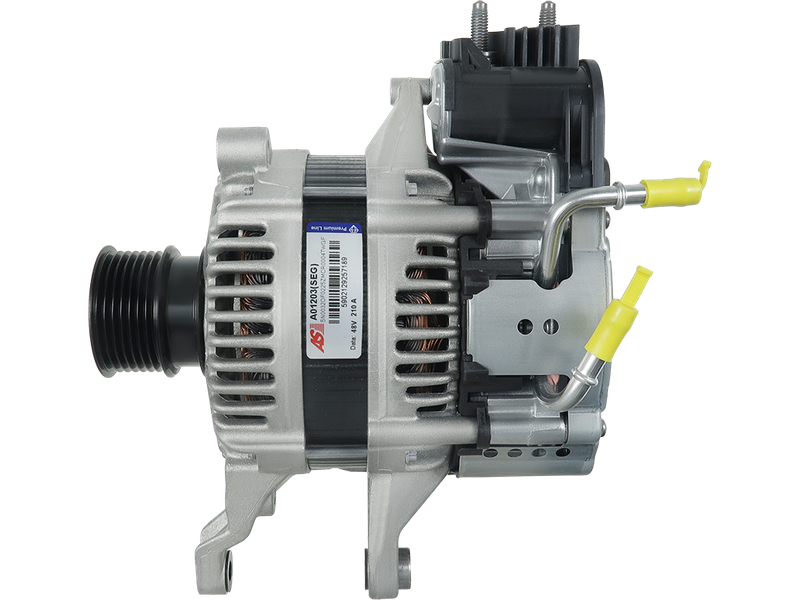

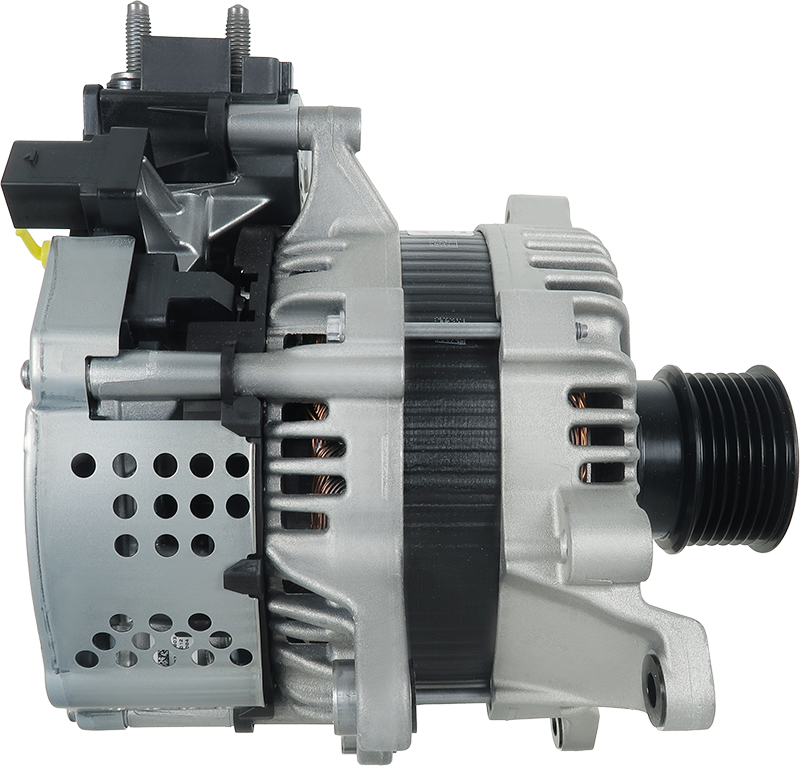

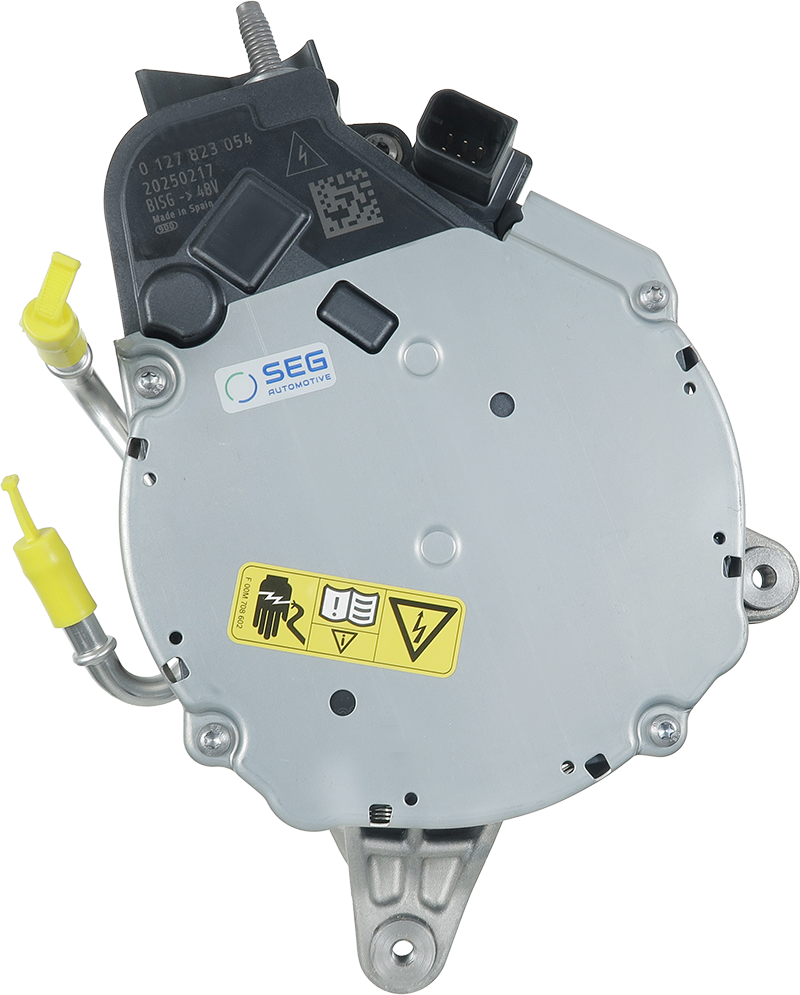

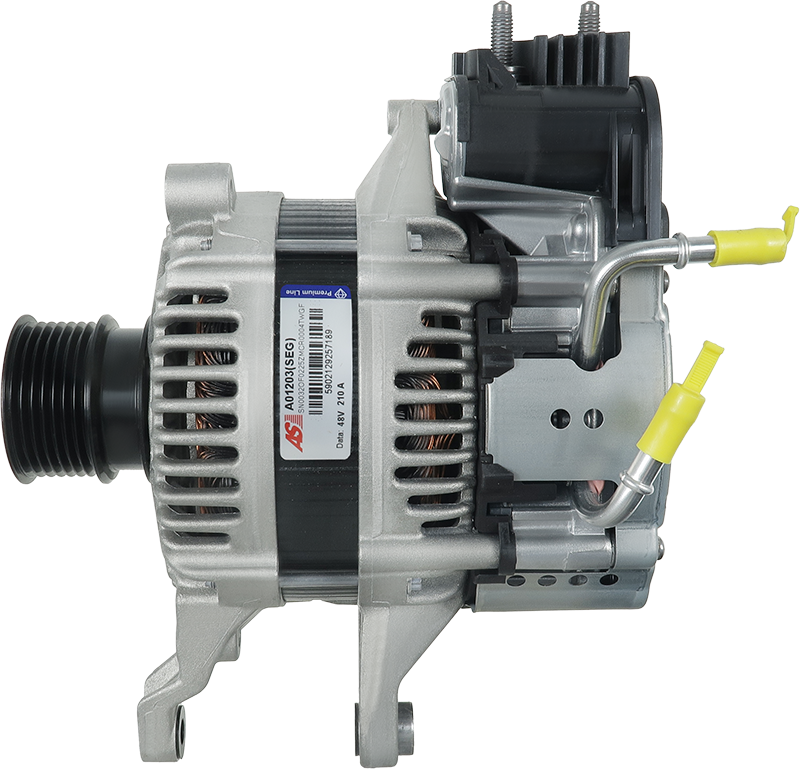

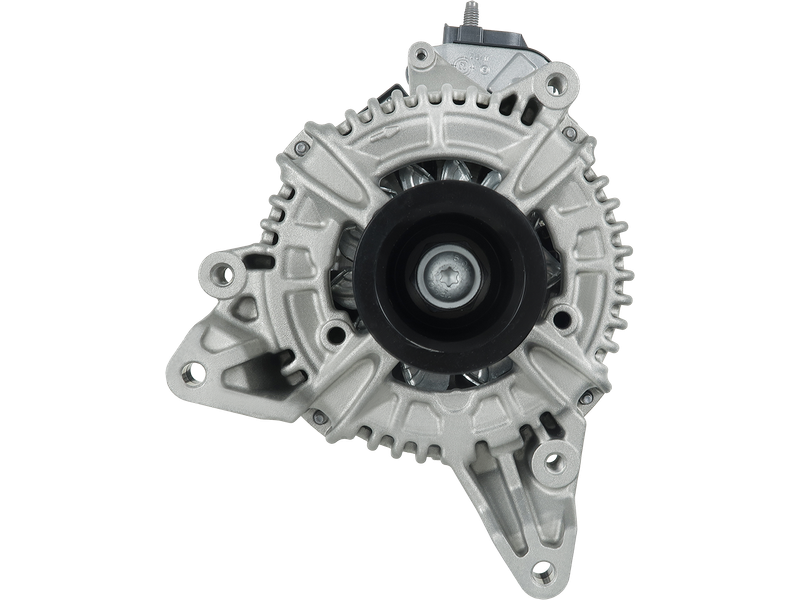

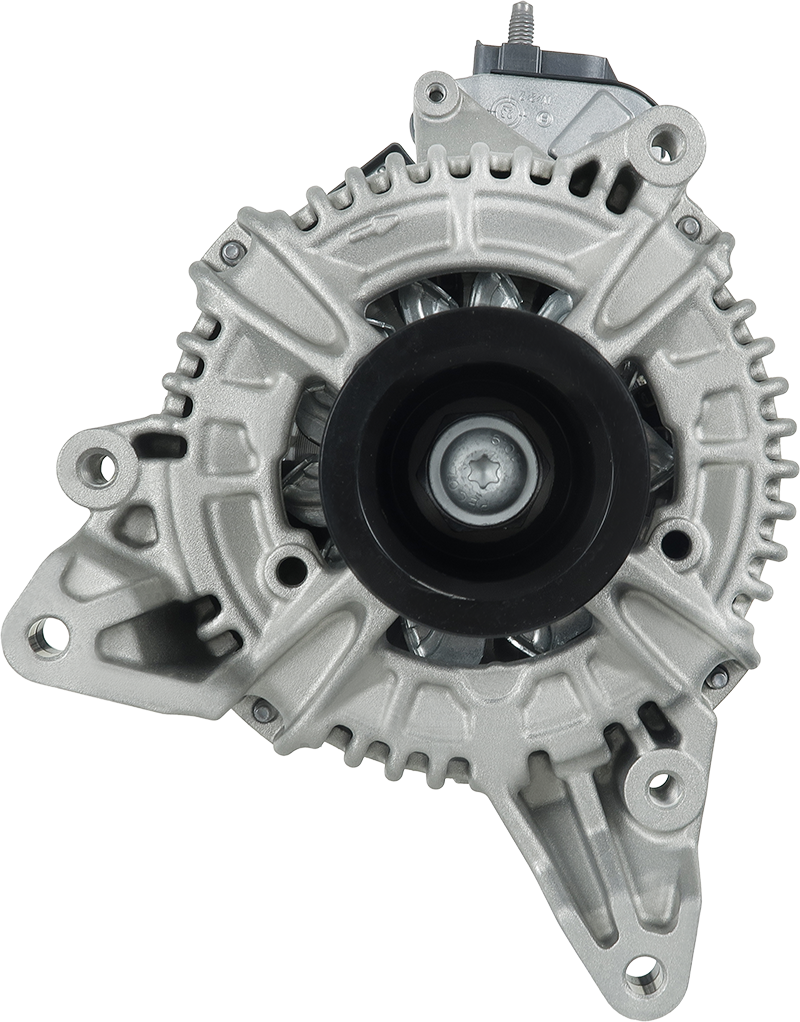

Brand new AS-PL Alternator
PREMIUM LINE
SEG Automotive
BOSCH
Price:
NZ$ 2,867.73 including GST
NZ$ 2,493.68 excluding GST
or four payments of $716.93
with
Learn More
UOM:
each
Product Code:
A01203(SEG)
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**
Associated Numbers
UD05076(SEG)A AS-PL 0127823016 BOSCH 0127823018 0127823020 0127823028 0127823032 0127823043 0127823043-R 0127823054 2649000900 MERCEDES 2649001000 2649001100 2649001600 26490016000008 26490016000083 2649001700 2649001800 2649061800 2649062200 2649062300 A2649000900 A2649001000 A2649001100 A2649001600 A26490016000008 A26490016000083 A2649001700 A2649001800 A2649061800 A2649062200 A2649062300 CAS10101GS CASCO 557.502.210.210 PSH 557.502.210.281 557.502.210.282 20201101OE REAL 3010101.1 SANDO STS121010 SIOM 39004N-OE WAI / TRANSPO SEG Mercedes-Benz 39004NOE 557502210 LRH00005 Lucas LRH005Specifications
| Amp | 210 A |
| Bottom Mounting Foot Width (B) | 13.00 mm |
| Diameter (D.1) | 7.50 mm |
| Diameter (D.2) | 8.50 mm |
| Diameter (D.3) | M7x0.4 mm |
| Diameter (D.4) | M7x0.4 mm |
| Length (L.1) | 246.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 59.00 mm |
| Plug Code | PL_5200 |
| Pulley Grooves | 7 qty |
| Pulley Outside Diameter (O.D.1) | 56.00 mm |
| Pulley to Mount Distance (A) | 31.00 mm |
| Pulley Type | Solid |
| Start/Stop | Yes |
| Voltage | 48 V |
| Yes |
