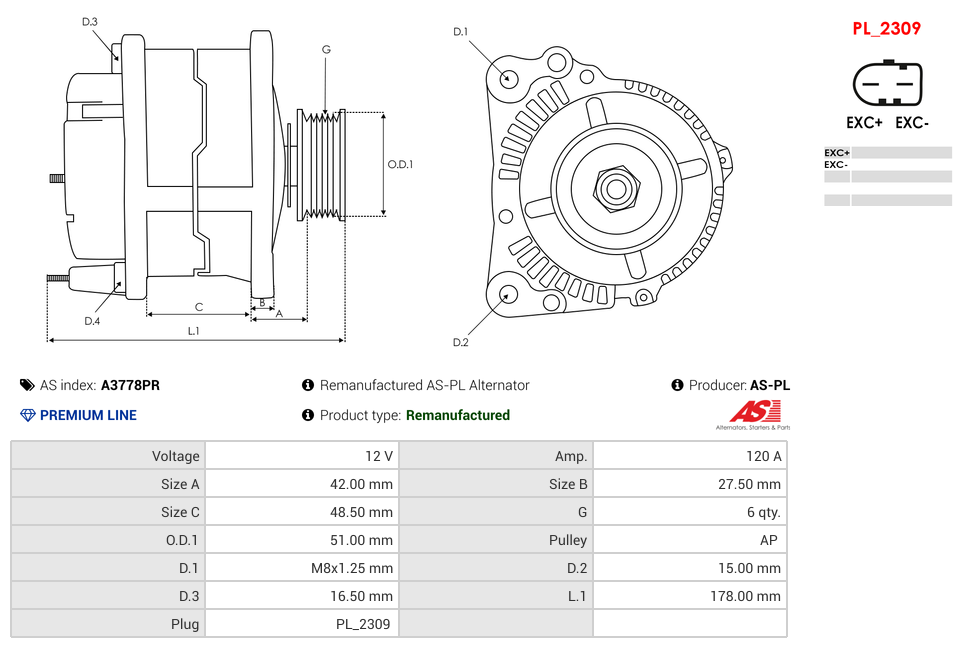

Specifications
| Amp | 120 A |
| Bottom Mounting Foot Width (B) | 27.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 15.00 mm |
| Diameter (D.3) | 16.50 mm |
| Length (L.1) | 178.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 48.50 mm |
| Plug Code | PL_2309 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.1) | 51.00 mm |
| Pulley to Mount Distance (A) | 42.00 mm |
| Pulley Type | Solid |
| Voltage | 12 V |
