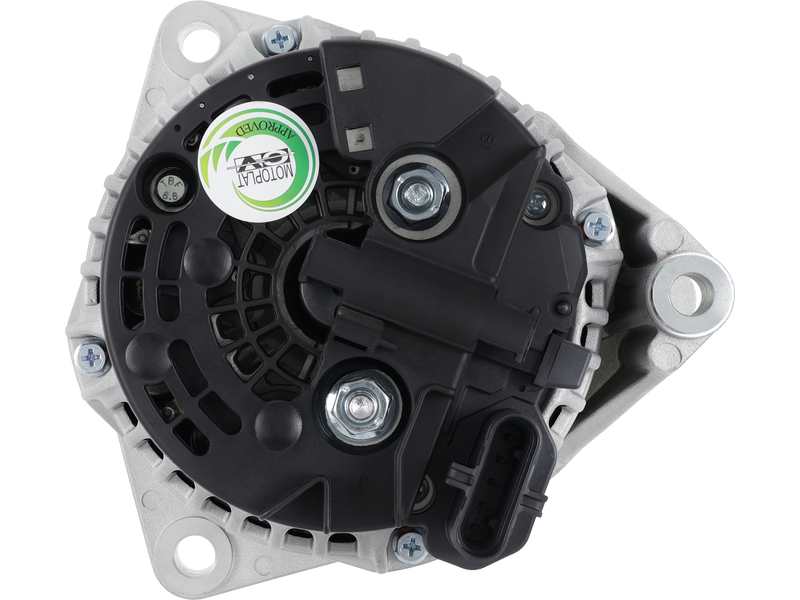

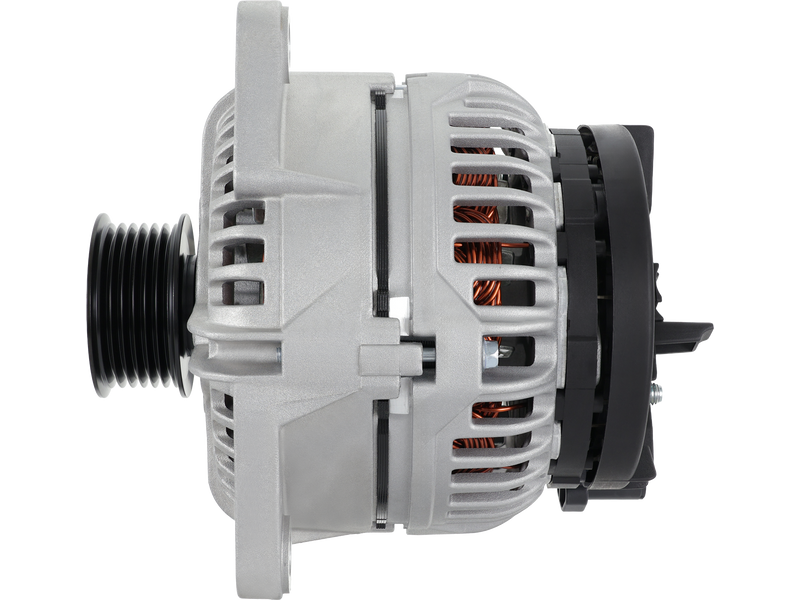

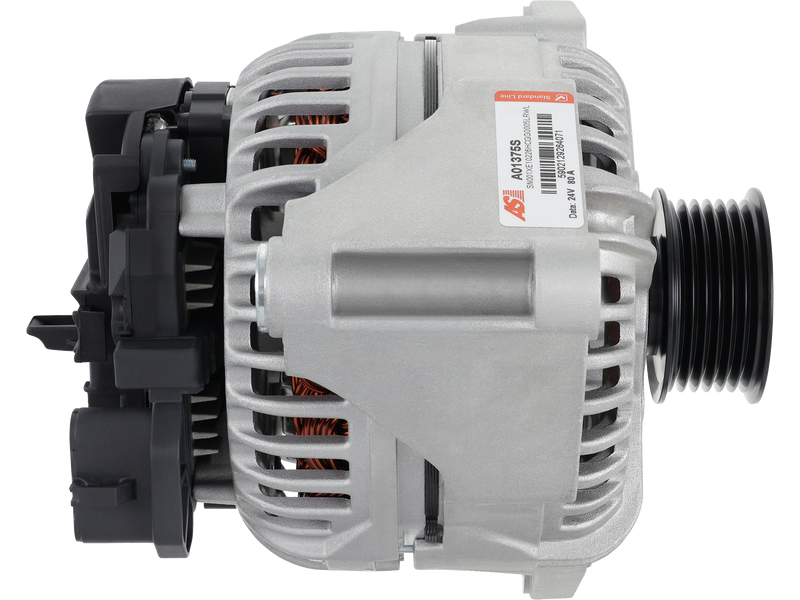

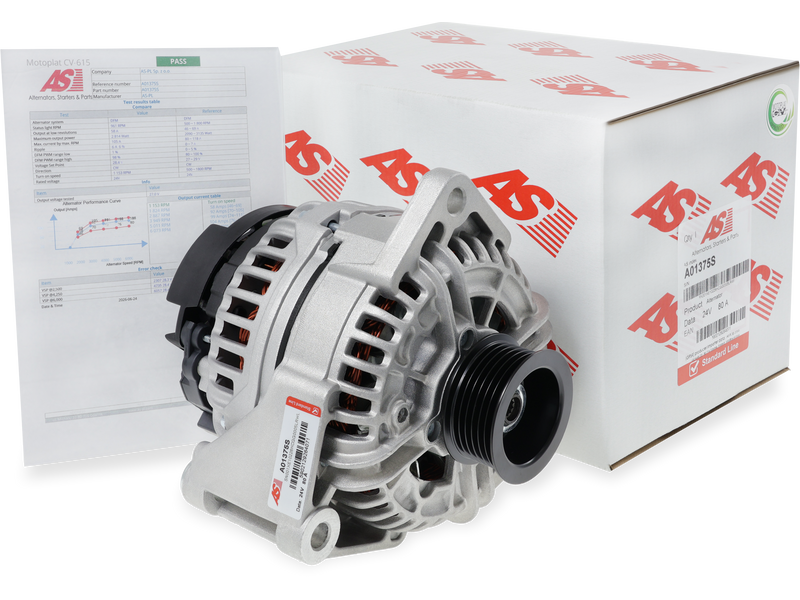

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
BOSCH
Price:
NZ$ 578.70 including GST
NZ$ 503.22 excluding GST
or four payments of $144.68
with
Learn More
Product Code:
A01375S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

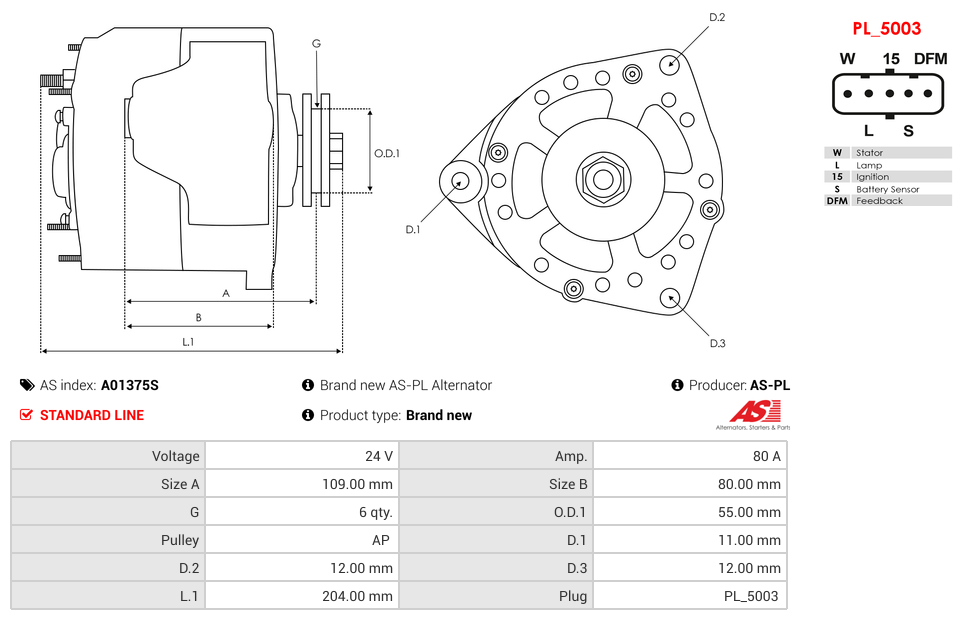

Specifications
| Amp | 80 A |
| Bottom Mounting Foot Width (B) | 80.00 mm |
| Diameter (D.1) | 11.00 mm |
| Diameter (D.2) | 12.00 mm |
| Diameter (D.3) | 12.00 mm |
| Length (L.1) | 204.00 mm |
| Plug Code | PL_5003 |
| Pulley Grooves | 6 qty |
| Pulley Outside Diameter (O.D.2) | 55.00 mm |
| Pulley to Mount Distance (A) | 109.00 mm |
| Pulley Type | Solid |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| SHACMAN | F-Series F3000 12.0 | WP12.430 | 01.2009- |
| SINOTRUK (CNHTC) | HOWO A7 12.0 | WP12.430 | 01.2008-12.2014 |
Reference Information
| 0124555030 | BOSCH |
| 0124555031 | BOSCH |
| 3119690 | HENKEL PARTS |
| 516.504.080.010 | WAI |
| 516.504.080.210 | WAI |
| 556025RIB | KUHNER |
| 612630060039 | WEICHAI |
| ALT1627 | ELECTROLOG |
| TT11296 | TESLA TECHNICS |
| UD17346A | AS-PL |
