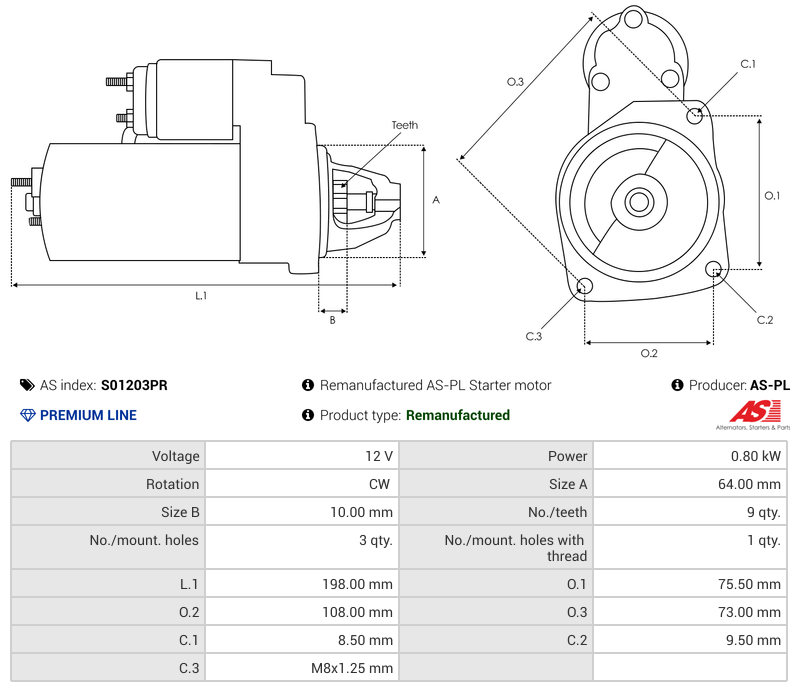

Specifications
| Kilowatt | 0.80 kW |
| Length (L.1) | 198.00 mm |
| Mount Hole Center - Center (O.1) | 75.50 mm |
| Mount Hole Center - Center (O.2) | 108.00 mm |
| Mount Hole Center - Center (O.3) | 73.00 mm |
| Mount Hole Diameter (C.1) | 8.50 mm |
| Mount Hole Diameter (C.2) | 9.50 mm |
| Mount Hole Diameter (C.3) | M8x1.25 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 1 qty |
| No./Teeth | 9 qty |
| Pinion at Rest (B) | 10.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 64.00 mm |
| Voltage | 12 V |
