Brand new AS-PL Alternator
STANDARD LINE
AS-PL
DELCO
Price:
NZ$ 1,127.53 including GST
NZ$ 980.46 excluding GST
or four payments of $281.88
with
Learn More
Product Code:
S1346S
Quantity In Stock Nationally
No stock in NZ currently
This item can be backordered, A B/O fee is applied at checkout - Aprox 7-14 day delay on delivery. **B/O products are not returnable**

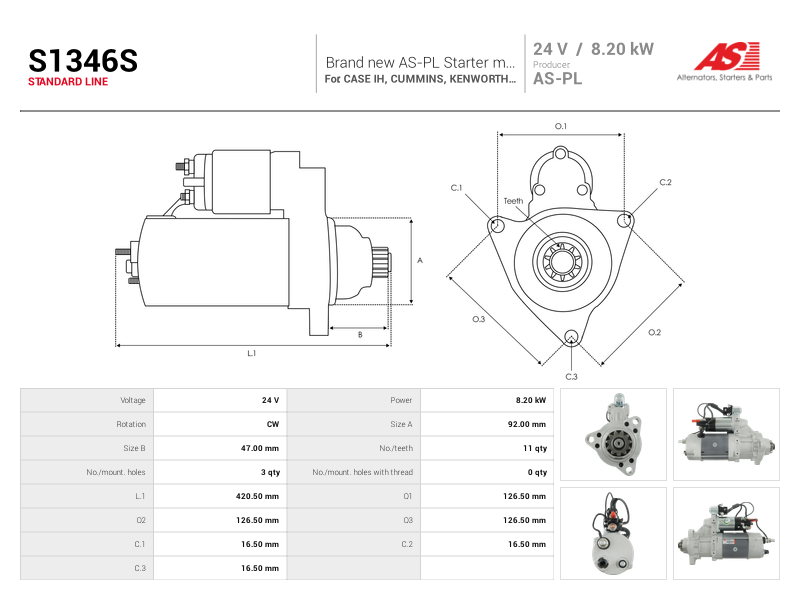

Specifications
| Kilowatt | 8.20 kW |
| Length (L.1) | 420.50 mm |
| Mount Hole Center - Center (O.1) | 126.50 mm |
| Mount Hole Center - Center (O.2) | 126.50 mm |
| Mount Hole Center - Center (O.3) | 126.50 mm |
| Mount Hole Diameter (C.1) | 16.50 mm |
| Mount Hole Diameter (C.2) | 16.50 mm |
| Mount Hole Diameter (C.3) | 16.50 mm |
| No./Mount holes | 3 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 11 qty |
| Pinion at Rest (B) | 47.00 mm |
| Rotation | CW |
| Spigot Diameter (A) | 92.00 mm |
| Voltage | 24 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE IH | 921E | M11 | 01.2007-12.2011 |
| CASE IH | Steiger 480 14.9 | QSX15 | 01.2007-12.2008 |
| CASE IH | Steiger 530 14.9 | QSX15 | 01.2007-12.2008 |
| CASE IH | Steiger 535 15.0 | QSX15 | 01.2008-12.2012 |
| CASE IH | STX375 | QSX15 | 01.2001-12.2005 |
| CASE IH | STX425 | QSX15 | 01.2001-12.2005 |
| CASE IH | STX450 | QSX15 | 01.2002-12.2005 |
| CASE IH | STX480 | QSX15 | 01.2006-12.2007 |
| CASE IH | STX500 | QSX15 | 01.2001-12.2006 |
| CASE IH | STX530 | QSX15 | 01.2006-12.2007 |
| CUMMINS | CFP11E-F10 10.8 | QSM11 | 01.2004-12.2020 |
| CUMMINS | CFP11E-F20 10.8 | QSM11 | 01.2004-12.2020 |
| KENWORTH | K500 | C13 | 01.2008-12.2016 |
| KENWORTH | K500 | ISX15 | 01.2008-12.2016 |
| KENWORTH | K500 15.2 | C15 | 01.2008-12.2016 |
| MACK | CH Series 12.0 | E7 | 01.1988-12.2007 |
| MACK | CH Series 12.0 | EM7 | 01.1988-12.2007 |
| MACK | CL Series 12.0 | E7 | 01.1990-12.2007 |
| MACK | CV Series | EM7 | 01.2003-12.2007 |
| MACK | CV Series 12.0 | AMI | 01.2001-12.2007 |
| MACK | DM | E7 | 01.2003-12.2006 |
| MACK | DMM Series 12.0 | E7 | 01.2006-12.2006 |
| MACK | DMM Series 12.0 | EM7 | 01.2006-12.2006 |
| MACK | DM Series | EM7 | 01.2003-12.2006 |
| MACK | FCM Series 12.0 | E7 | 01.2006-12.2006 |
| MACK | FCM Series 12.0 | EM7 | 01.2003-12.2006 |
| MACK | FDM Series 12.0 | E7 | 01.2006-12.2006 |
| MACK | FDM Series 12.0 | EM7 | 01.2006-12.2006 |
| MACK | Granite Series 12.0 | AMI | 01.2002-12.2007 |
| MACK | LE Series | E7G | 01.2003-12.2006 |
| MACK | LE Series 12.0 | E7 | 01.2006-12.2006 |
| MACK | RD Series | E7 | 01.2003-12.2006 |
| MACK | RD Series | EM7 | 01.2003-12.2006 |
| MACK | RL Series | EM7 | 01.2003-12.2006 |
| MACK | RL Series 12.0 | E7 | 01.1989-12.1990 |
| MACK | RM Series | E7 | 01.2003-12.2006 |
| MACK | RM Series | EM7 | 01.2003-12.2006 |
| MACK | RS Series | E7 | 01.2003-12.2006 |
| MACK | RS Series | EM7 | 01.2003-12.2006 |
| MACK | RW Series | E7 | 01.2003-12.2006 |
| MACK | RW Series | EM7 | 01.2003-12.2006 |
| MCI | Engine | ISX | 01.1998-12.2003 |
| MCI | Engine 10.8 | M11 | 01.2004-12.2007 |
| MCI | Engine 14.0 | N14 | 01.1998-12.2003 |
| NEW HOLLAND | T9030 12.9 | 01.2006-12.2012 | |
| NEW HOLLAND | T9040 12.9 | 01.2006-12.2012 | |
| NEW HOLLAND | T9050 12.9 | 01.2006-12.2012 | |
| NEW HOLLAND | T9060 15.0 | QSX | 01.2006-12.2012 |
| NEW HOLLAND | TJ375 15.0 | QSX | 01.2002-12.2006 |
| NEW HOLLAND | TJ425 15.0 | QSX | 01.2002-12.2006 |
| NEW HOLLAND | TJ450 15.0 | QSX | 01.2002-12.2005 |
| NEW HOLLAND | TJ480 15.0 | QSX | 01.2006-12.2007 |
| NEW HOLLAND | TJ500 15.0 | QSX | 01.2004-12.2005 |
| NEW HOLLAND | TJ530 15.0 | QSX | 01.2006-12.2007 |
| PREVOST | Engine 14.0 | 01.2001-12.2010 | |
| PREVOST | Engine 15.8 | C16 | 01.1999-12.2007 |
