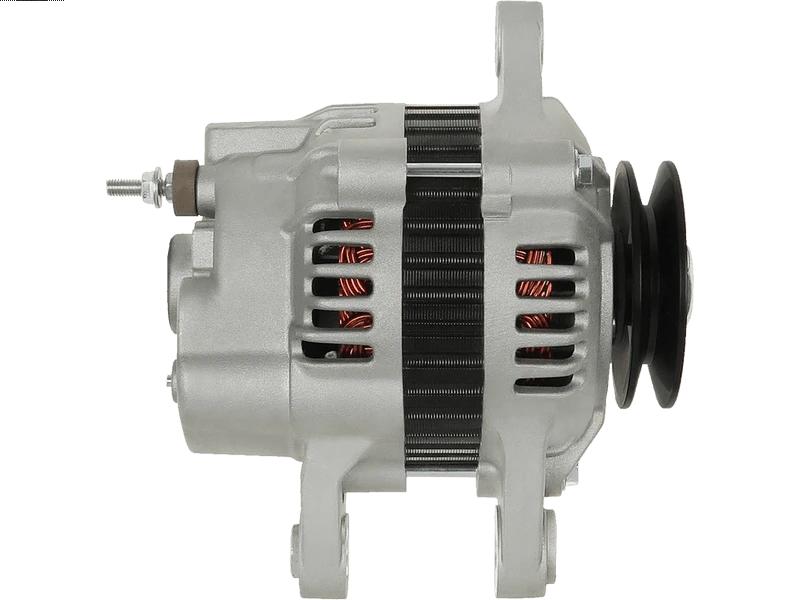

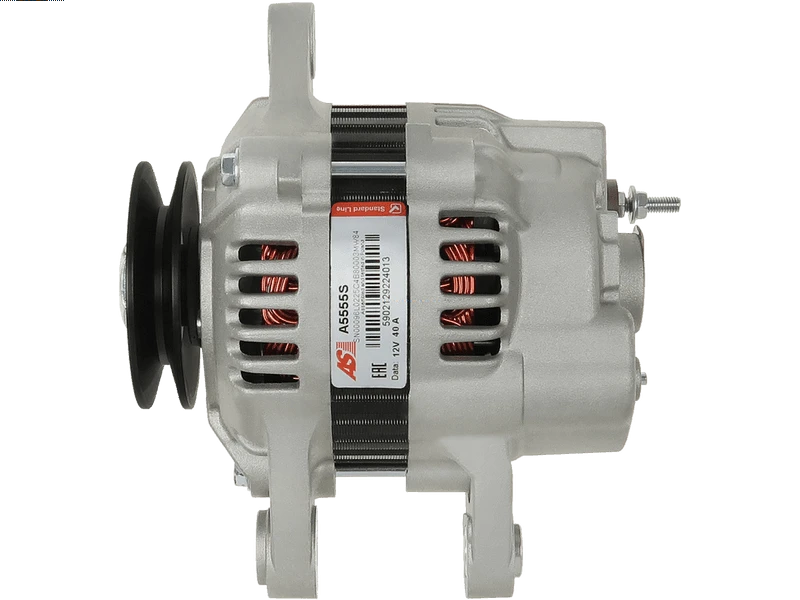

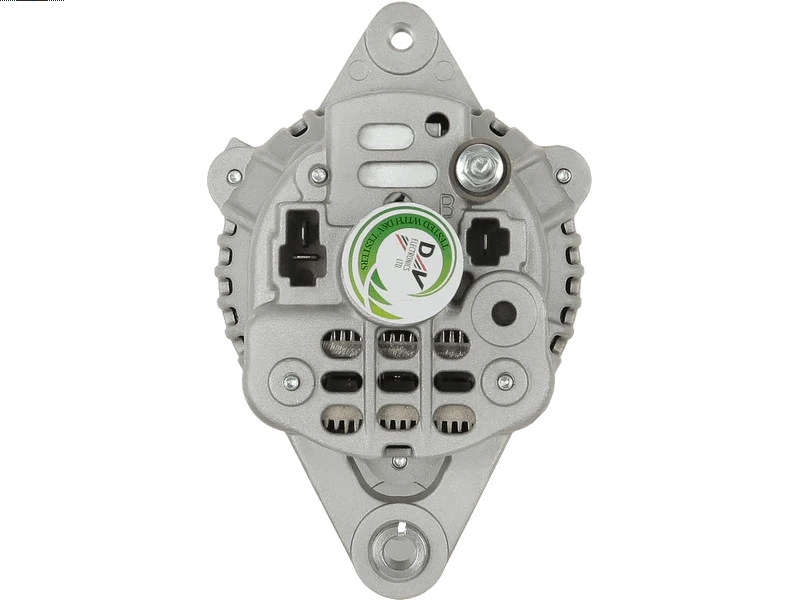

Brand new AS-PL Alternator
STANDARD LINE
AS-PL
MITSUBISHI
Price:
NZ$ 344.16 including GST
NZ$ 299.27 excluding GST
or four payments of $86.04
with
Learn More
each
A5555S
1
Specifications
| Amp | 40 A |
| Bottom Mounting Foot Width (B) | 16.50 mm |
| Diameter (D.1) | M8x1.25 mm |
| Diameter (D.2) | 9.00 mm |
| Diameter (D.3) | 8.00 mm |
| Length (L.1) | 161.00 mm |
| Mount Inside Length or Pad Mount C-C (C) | 41.00 mm |
| Plug Code | PL_2505 |
| Pulley Grooves | 1 qty |
| Pulley Groove Width (W.1) | 9.00 mm |
| Pulley Outside Diameter (O.D.1) | 45.50 mm |
| Pulley Outside Diameter (O.D.2) | 70.00 mm |
| Pulley to Mount Distance (A) | 42.00 mm |
| Pulley Type | AP |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| CASE | 1120 | [3-65] | 01.1991-12.1992 |
| CASE | 1130 | [3-75] | 01.1991-12.1992 |
| CASE | 1140 | [3-91] | 01.1991-12.1992 |
| CASE | 7195 | 01.1995-12.2005 | |
| CASE | 7235 | 01.1995-12.2005 | |
| CATERPILLAR | GP40 | 01.1997-12.2007 | |
| CATERPILLAR | GPL40 | 01.1997-12.2007 | |
| CUB CADET | 7192 | [(19HP)3-65] | 01.1995-12.1997 |
| CUB CADET | 7193 | [(19HP)3-65] | 01.1996-12.1997 |
| CUB CADET | 7194 | [(19HP)3-65] | 01.1995-12.1997 |
| CUB CADET | 7195 | [(19HP)3-65] | 01.1995-12.1997 |
| CUB CADET | 7232 | [(23HP)3-75] | 01.1995-12.1997 |
| CUB CADET | 7233 | [(23HP)3-75] | 01.1996-12.1997 |
| CUB CADET | 7234 | [(23HP)3-75] | 01.1995-12.1997 |
| CUB CADET | 7235 | [(23HP)3-75] | 01.1995-12.1997 |
| CUB CADET | 7272 | [(27HP)3-91] | 01.1995-12.1997 |
| CUB CADET | 7273 | [(27HP)3-91] | 01.1996-12.1997 |
| CUB CADET | 7274 | [(27HP)3-91] | 01.1995-12.1997 |
| CUB CADET | 7275 | [(27HP)3-91] | 01.1995-12.1997 |
| CUB CADET | 7300 | [(30HP)3-91] | 01.1998-12.2003 |
| CUB CADET | 7305 | [(30HP)3-91] | 01.1998-12.2003 |
| HURLIMANN | Prince 325 | ||
| HURLIMANN | Prince 325XV | ||
| HURLIMANN | Prince 435 | ||
| HURLIMANN | Prince 445 | ||
| MITSUBISHI | Engine | [K3] | 01.1987-12.1997 |
| MITSUBISHI | Engine | [K4E] | 01.1987-12.1997 |
| MITSUBISHI | Engine | [K4M] | |
| MITSUBISHI | Engine | [L3] | 01.1986-12.1996 |
| MITSUBISHI | Engine | [L3C] | |
| MITSUBISHI | Engine | [L3E] | |
| MITSUBISHI | FG-40G | [6G72] | |
| MITSUBISHI | FG-40G2 | [6G72] | |
| MITSUBISHI | FG-40LP | [6G72] | |
| MITSUBISHI | FG-40LP2 | [6G72] | |
| MITSUBISHI | FG-40LPS | [6G72] | |
| SAME | Solaris 45 | [4-91] | 01.1999-12.2009 |
| SOLE DIESEL | Engine 0.5 | [Mini-11] | |
| SOLE DIESEL | Engine 0.6 | [Mini-17] | |
| SOLE DIESEL | Engine 1.0 | [Mini-26] | |
| SOLE DIESEL | Engine 1.0 | [Mini-29] | |
| SOLE DIESEL | Engine 2.0 | [Mini-48] | |
| TORO | Greensmaster 3000D | 01.1990-12.2000 | |
| TORO | Groundsmaster 220D | 01.1988-12.1991 | |
| TORO | Groundsmaster 223D | 01.1992-12.1997 | |
| TORO | Groundsmaster 224 | 01.1989-12.1996 | |
| TORO | Reelmaster 223D | [L3E] | 01.1988-12.1992 |
| TORO | Reelmaster 5100D | 01.1990-12.1998 | |
| TORO | Workman 3300D | [L3E] | 01.1993-12.1998 |
| TORO | Workman 4300D | 01.1994-12.1998 | |
| VETUS | Engine | [M2.04] | |
| VETUS | Engine | [M2.06] | |
| VETUS | Engine | [M2.C5] | |
| VETUS | Engine | [M2.D5] |
