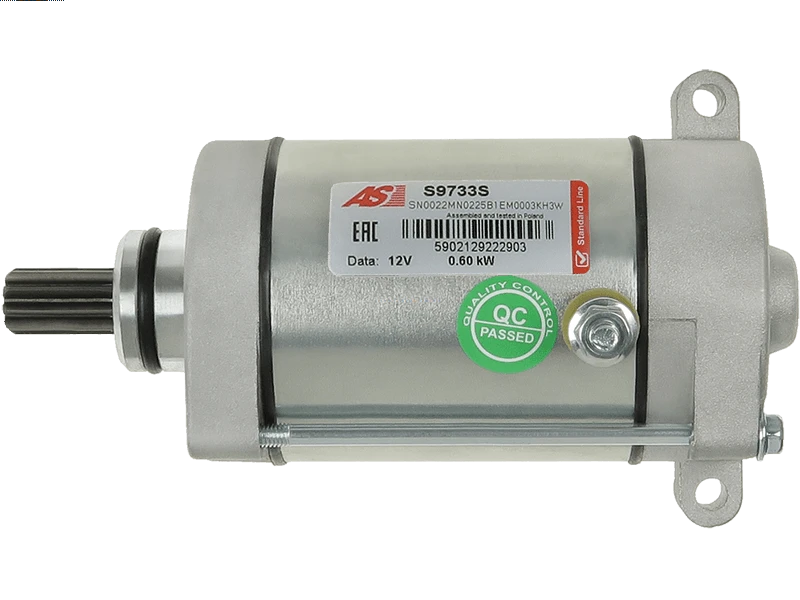

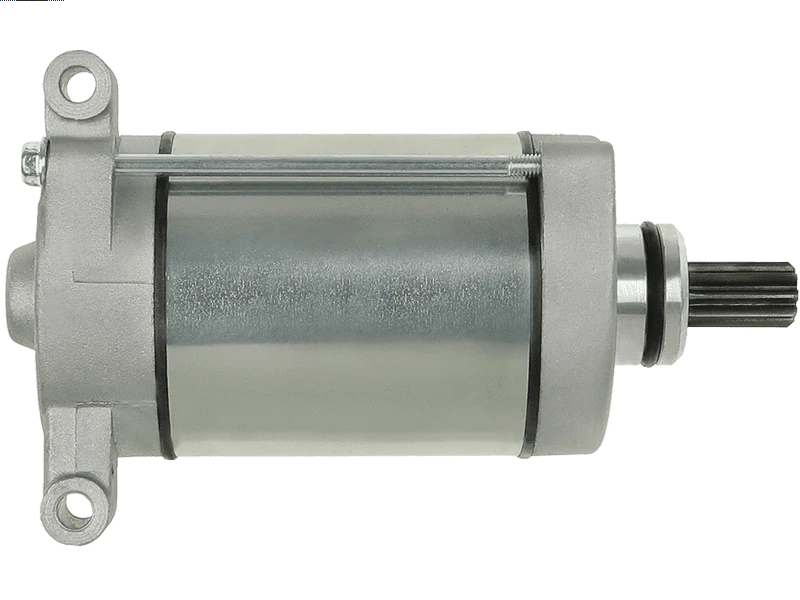

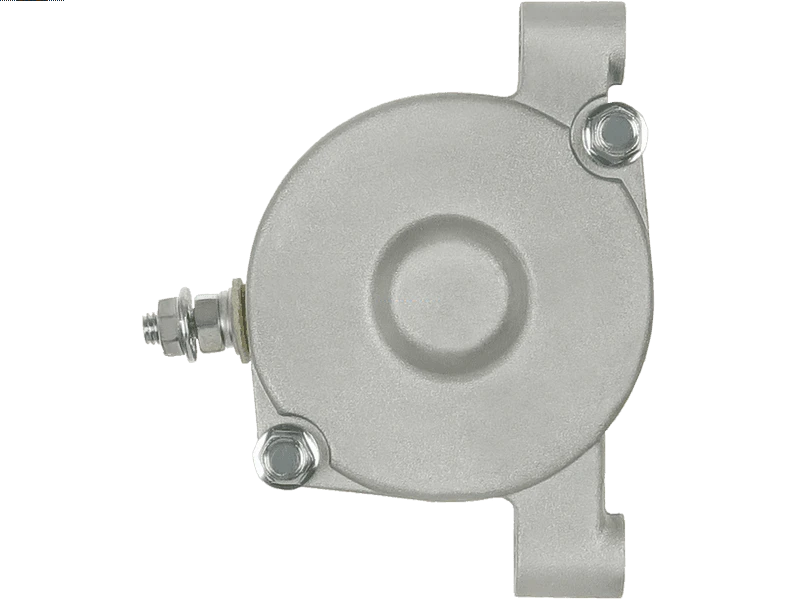

Brand new AS-PL Starter motor
STANDARD LINE
AS-PL
MITSUBA
Price:
NZ$ 144.14 including GST
NZ$ 125.34 excluding GST
or four payments of $36.04
with
Learn More
each
S9733S
2
Associated Numbers
ARROWHEAD SMU0211 HI LEVEL STY0263 HISUN 31200-004D-0000 31200-F39-0000 LESTER18759 MITSUBA SM13528 YAMAHA 4WV81800-00-00 4WV81890-00-00 5KM81890-00-0 5KM-81890-00-00 5KM81890-00-00 10439182 Alanko 18759 Lester 18759N WAI 191378 PIC 191378A 255641 DAS 400603092 PSH 439182 4WV818000000 Yamaha 4WV818900000 5KM818000000 5KM81890000 5KM818900000 CST33169 Airframe DEMQ320 ADI S132924 Short code S166264 S166265 Mitsuba SMU0263 ST18759 RCP STR75445 Wood Auto SXE1193 Everkraft WOOSTR75445 620-134 191-378A Remy Power Products RS41234 4WV-81800-00-00 4WV-81890-00-00 UD19125S AS-PL DELCO ALANKO CST33169AS CASCO 242-06127 DIXIE 108169 FARCOM 10033169AV ITAB AUTOMOTIVE 410-54039 J N STU8759 KRAUF KUHNER LESTER 400.603.092.190 20467961BN REAL 6033169.0 SANDO TT15941 TESLA / TRANSPO 71-26-18759 WILSON WOODAUTO 4WV-81800-00 4WV-81890-00 5KM-81890-00 S9377SSpecifications
| Kilowatt | 0.60 kW |
| Length (L.1) | 165 mm |
| Mount Hole Center - Center (O.1) | 84 mm |
| Mount Hole Diameter (C.1) | 7 mm |
| Mount Hole Diameter (C.2) | 7 mm |
| No./Mount holes | 2 qty |
| No./Mount holes with thread | 0 qty |
| No./Teeth | 9 qty |
| OEM Product | No |
| Pinion at Rest (B) | 41 mm |
| Product Line | Standard Line |
| Product Type | Brand new |
| Rotation | ACW |
| Unit Type | MITSUBA |
| Voltage | 12 V |
Vehicle Applications
| Make | Model | Type | Year |
|---|---|---|---|
| YAMAHA | Rhino 450 YXR45F | [421cc] | 01.2006-12.2009 |
| YAMAHA | Rhino 660 YXR66F | [660cc] | 01.2004-12.2007 |
| YAMAHA | YFM400 Kodiak | [401cc] | 01.2000-12.2003 |
| YAMAHA | YFM450 Kodiak | [421cc] | 01.2003-12.2004 |
| YAMAHA | YFM45FAH Kodiak 450 4x4 | [421cc] | 01.2004-12.2006 |
| YAMAHA | YFM45FA Kodiak 450 4x4 | [421cc] | 01.2004-12.2006 |
| YAMAHA | YFM45FG Grizzly | [421cc] | 01.2007-12.2008 |
| YAMAHA | YFM45FX Wolverine | [421cc] | 01.2007-12.2008 |
| YAMAHA | YFM4A Kodiak 400 2WD | [401cc] | 01.2004-12.2006 |
| YAMAHA | YFM4FA Kodiak 400 4x4 | [401cc] | 01.2004-12.2006 |
| YAMAHA | YFM4FG Grizzly | [401cc] | 01.2007-12.2008 |
| YAMAHA | YFM600 Grizzly | [595cc] | 01.1998-12.2001 |
| YAMAHA | YFM660 Grizzly | [660cc] | 01.2001-12.2004 |
| YAMAHA | YFM66 Grizzly 660 | [660cc] | 01.2005-12.2008 |
Reference Information
RS41234 71-26-18759 6033169.0 WOOSTR75445 108169 242-06127 5KM-81890-00-00 4WV-81890-00-00 SMU0211 UD19125S 18759 10439182 CST33169AS 4WV-81800-00-00 410-54039 SM13528 4WV-81890-00 5KM-81890-00 400.603.092.190 STU8759 SMU0263 10033169AV 18759N 4WV-81800-00 255641 20467961BN STR75445 TT15941Video/Publications
